Overview
Mikrometry EST-TT1 Manual Torque Test Stand for repeatable torque gauge positioning.
Key Features
- Vertical manual torque testing support
Applications
The stand positions a compatible torque instrument and specimen for repeated rotational tests. Typical applications include screwdriver checks and assembly torque measurements. Select the stroke option for the specimen length and confirm the instrument mounting and required coupling before building the test arrangement.
- Repeatable torque gauge positioning
- assembly torque tests
- screwdriver testing with compatible gauge
Specifications
| Technical specification |
|---|
| Maximum load 1,000 N |
| table diameter 200 mm |
| net weight 12 / 16 kg |

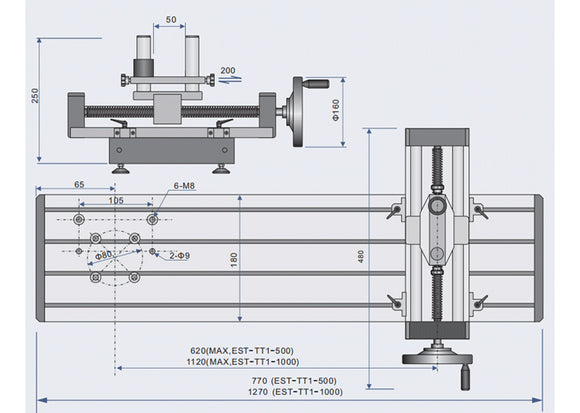

Models and Options
| SKU | Model / configuration |
|---|---|
| EST-TT1-500 | 150–600 mm stroke |
| EST-TT1-1000 | 150–1,000 mm stroke |
Included and Optional Accessories
Compatible ETTA5/10 and ETTB/ETTC gauges below 100 N·m; gauge excluded. Confirm the selected package; optional equipment is quoted separately.
