Overview
Mikrometry EST-FG2 Motorized Force Test Stand for controlled-speed tensile and compression tests.
Key Features
- Motorized loading with manual, cycle, teaching and distance modes
- three-stage programming
Applications
Use a motorized stand where controlled movement improves repeatability, such as packaging pull tests, component extraction and spring compression. Choose the vertical or horizontal configuration for specimen access and loading direction. The fitted force gauge and grips determine the measuring range and specimen compatibility.
- Controlled-speed tensile and compression tests
- packaging pull tests
- repeatable component force inspection

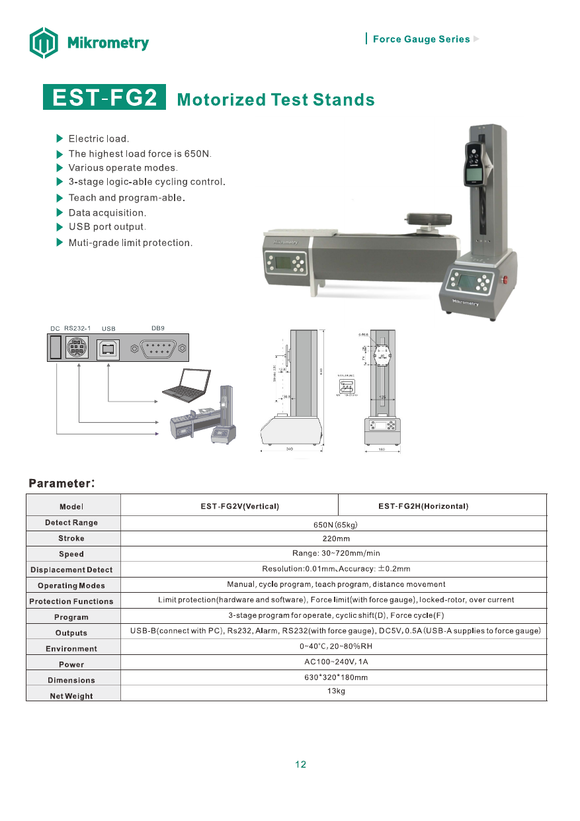

Specifications
| Technical specification |
|---|
| Maximum load 650 N |
| stroke 220 mm |
| speed 30–720 mm/min |
| AC 100–240 V |
| Net weight 13 kg |
| Displacement resolution 0.01 mm |
| displacement accuracy ±0.2 mm |
| USB-B PC port, RS232 interfaces and alarm output |
| 630 × 320 × 180 mm |
| 0–40°C, 20–80% RH |
Models and Options
| SKU | Model / configuration |
|---|---|
| EST-FG2V | Vertical |
| EST-FG2H | Horizontal |
Included and Optional Accessories
Compatible force gauge and application-specific grips. Confirm the selected package; optional equipment is quoted separately.
