Overview

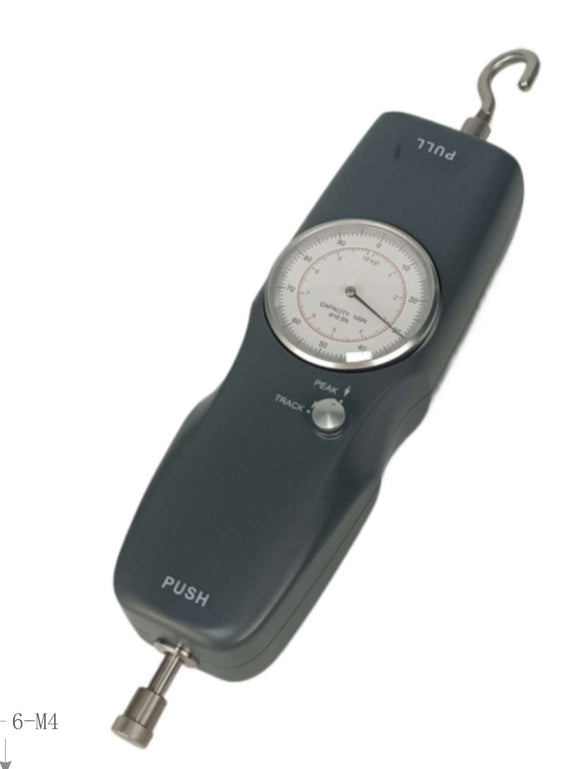

Mikrometry ENK Mechanical Force Gauge for manual push-pull inspection.
Key Features
- Mechanical dual kg/N dial
- real-time and peak readings
Applications
Use the mechanical push-pull gauge for manual spring checks and component acceptance tests on the workshop floor. Select a range that covers the expected force and a contact attachment that suits the specimen. A test stand helps maintain a consistent loading direction during repeated checks.
- Manual push-pull inspection
- spring force checks
- shop-floor component testing
Specifications
| Technical specification |
|---|
| Accuracy ±0.5% FS |
| 10 mm measuring stroke |
| 234 × 64.5 × 51 mm |
| net weight 0.62 kg |
| Dual kg/N scale |
| peak-hold and real-time indication |
Models and Options
| SKU |
Model / configuration |
| ENK10 |
10 N |
| ENK20 |
20 N |
| ENK30 |
30 N |
| ENK50 |
50 N |
| ENK100 |
100 N |
| ENK200 |
200 N |
| ENK300 |
300 N |
| ENK500 |
500 N |
Resolution by Model
| Model |
Resolution |
| ENK10 |
0.05 N |
| ENK20 |
0.1 N |
| ENK30 |
0.15 N |
| ENK50 |
0.25 N |
| ENK100 |
0.5 N |
| ENK200 |
1 N |
| ENK300 |
1.5 N |
| ENK500 |
2.5 N |

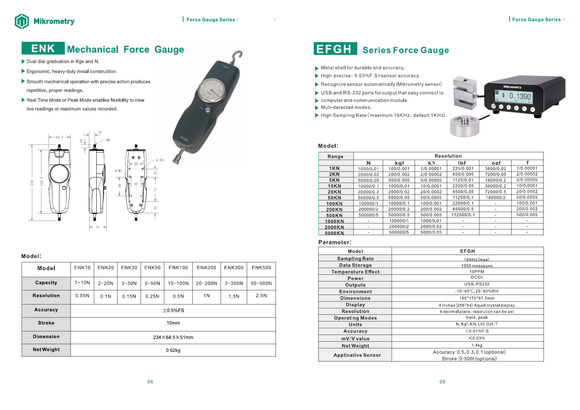

Datasheet
Manufacturer datasheet (PDF catalogue extract)
Shipping: 5-10 business days
