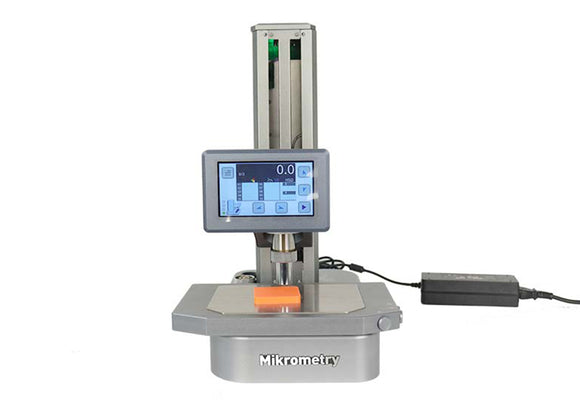

The Mikrometry EHSC is an automatic benchtop Shore hardness testing system for repeatable quality-control measurements on rubber, elastomers and plastics. Motorised movement and controlled test force reduce operator variation compared with handheld testing.
Complete supplied set
- EHSC automatic test system
- HA, HD and HOO interchangeable probes
- Shore D loading weight
- Power supply and standard accessories
Key specifications
- Resolution: 0.1 H
- Accuracy: ±1 H
- Vertical stroke: 160 mm
- Throat depth: 120 mm
- Sliding platform travel: 80 mm
- 800 × 480 colour display
- USB data connection
- Power: DC 24 V, 5 A
Applications
- Rubber and elastomer quality control
- Plastics and polymer testing
- Incoming material inspection
- Production verification
- Laboratory and repetitive batch testing
Ordering: Supplied to order as the complete configuration listed above. Lead time is confirmed at order placement.
Datasheet: Download the EHSC datasheet
