Overview

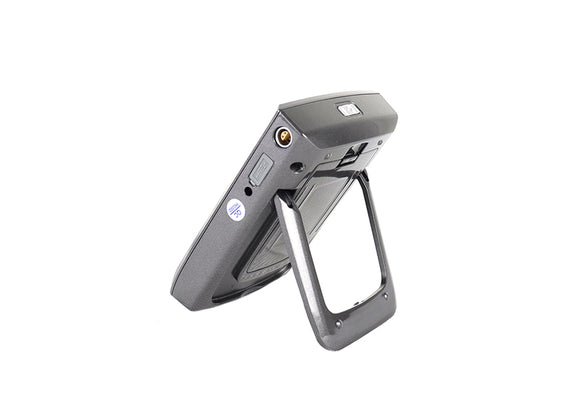

Mikrometry DoHP200 Touchscreen Leeb Hardness Tester for field metal hardness testing.
Key Features
- Touchscreen hardness tester with data storage and USB
Applications
Use the DoHP200 for field inspection and workshop hardness checks on suitable metallic components. Typical work includes incoming material comparison and maintenance assessment of substantial machine parts. Leeb testing requires appropriate surface finish, specimen support and material settings; thin or lightly supported pieces need particular attention.
- Field metal hardness testing
- fabrication inspection
- maintenance checks of sufficiently massive metal components
Specifications
| Technical specification |
|---|
| Accuracy ±6 HLD |
| 3.8-inch display |
| 500 records |
| 3.6 V NiMH |
| module 0.24 kg |
| HRC, HRB, HB, HV, HSD and MPa conversions |
| 320 × 240 display |
| 130 × 87 × 28 mm |
| −10 to 40°C, 20–85% RH |
Models and Options
| SKU | Model / configuration |
|---|---|
| DoHP200 | DoHP200 |
Included and Optional Accessories
D impact device standard; DC, DL, C, D+15 and G devices optional; optional printer. Confirm the selected package; optional equipment is quoted separately.
