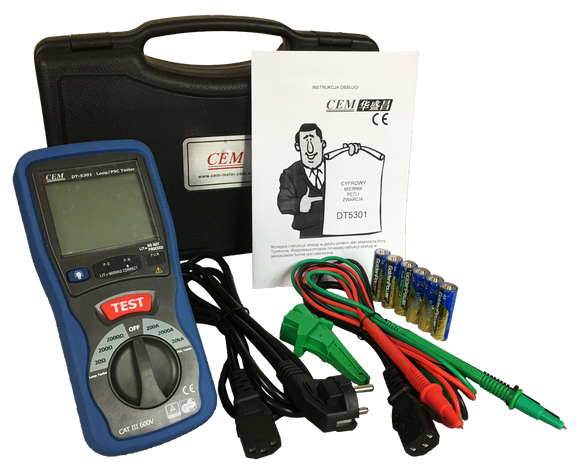

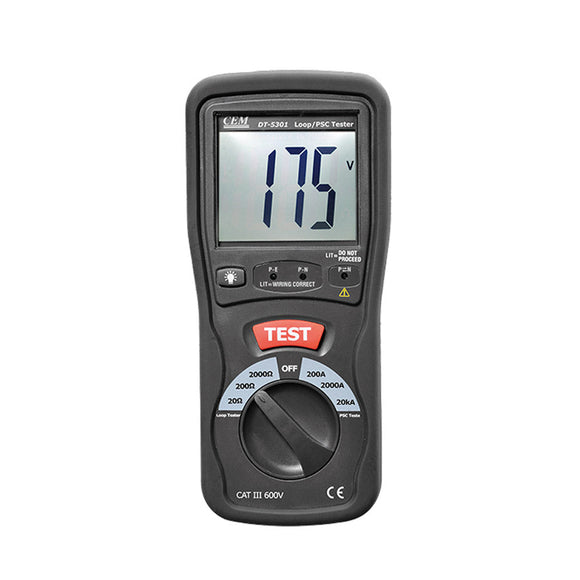

The CEM DT-5301 is a professional loop impedance and prospective short-circuit current (PSC) tester for electrical installation verification and fault finding. It combines low-resistance loop testing, direct PSC calculation and wiring-status checks in a compact handheld instrument.
Key Features
- Loop impedance ranges: 20 Ω, 200 Ω and 2000 Ω
- 0.01 Ω resolution on the low loop range
- Direct PSC measurement up to 20 kA
- 15 mA low-current loop measurement on the 2000 Ω range
- Three LEDs for checking wiring status
- Visual warning for reversed phase and neutral
- Automatic lock-out if the internal test resistor overheats
- Voltage measurement from 50 to 250 V
- IEC 61010-1 CAT III 600 V safety rating
Applications
- Electrical installation testing
- Earth-fault loop impedance checks
- Prospective short-circuit current assessment
- Socket wiring verification and fault finding
Model: CEM DT-5301
Specifications
| Specification | Details |
|---|---|
| Loop impedance ranges | 20 Ω / 200 Ω / 2000 Ω |
| Best resolution | 0.01 Ω |
| Prospective short-circuit current (PSC) | Direct reading up to 20 kA |
| Low-current loop test | 15 mA on the 2000 Ω range |
| Wiring indication | LED wiring-status indication |
| Protection | Overheat lockout |
| Safety rating | IEC 61010-1, CAT III 600 V |
