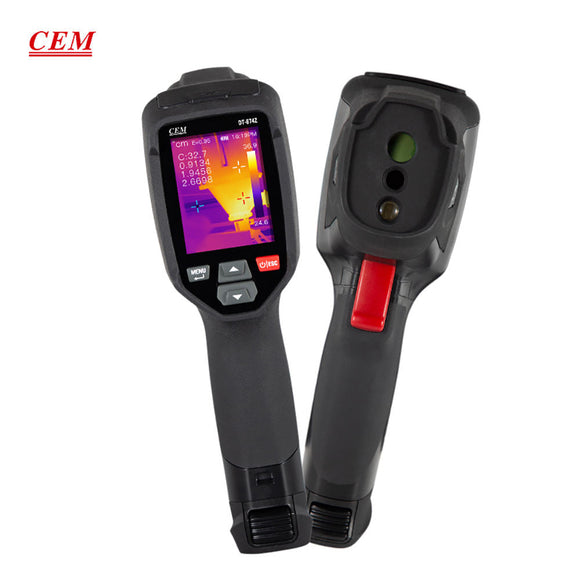

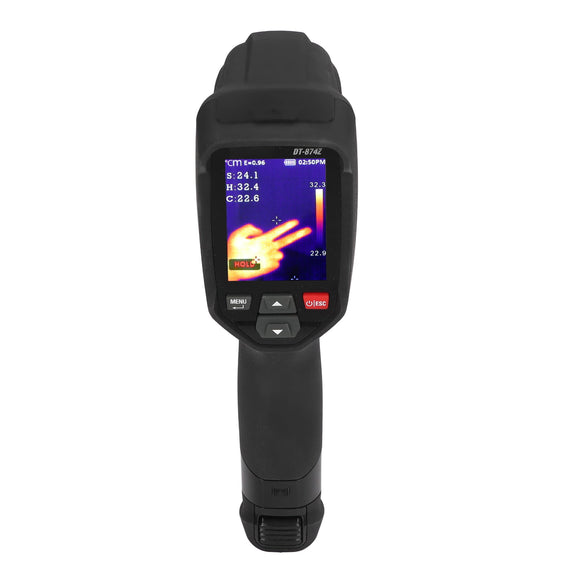

The CEM DT-874Z is a compact professional thermal imaging camera for electrical, mechanical and building inspection. It combines a 120 × 90 infrared detector with fast 25 Hz imaging and automatic hot/cold-point detection.
Verified DT-874Z Features
- Infrared resolution: 120 × 90 pixels
- Image frequency: 25 Hz
- Thermal sensitivity: <60 mK
- Temperature range: -20°C to 400°C
- Accuracy: ±2°C or ±2% of reading
- Field of view: 50° × 37°
- 2.4-inch 240 × 320 colour LCD
- Eight selectable colour palettes
- Automatic high- and low-temperature detection
- MicroSD image storage
- USB-C data transfer
- Rechargeable lithium battery
- 2 m drop rating
Important: DT-874Z and DT-874Z+ are different models. The Plus version has different imaging and temperature specifications and should not be represented using this product data.
Model: CEM DT-874Z
Specifications
| Specification | Details |
|---|---|
| Infrared resolution | 120 × 90 |
| Frame rate | 25 Hz |
| Thermal sensitivity (NETD) | <60 mK |
| Temperature range | -20 °C to 400 °C |
| Accuracy | ±2 °C or ±2% |
| Field of view | 50° × 37° |
| Display | 2.4 in, 240 × 320 |
| Colour palettes | 8 |
| Storage | MicroSD |
| Interface | USB-C |
| Drop rating | 2 m |
