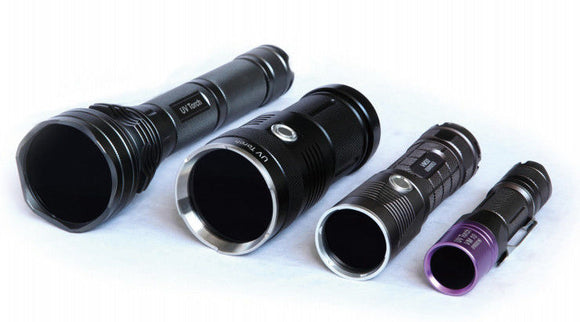

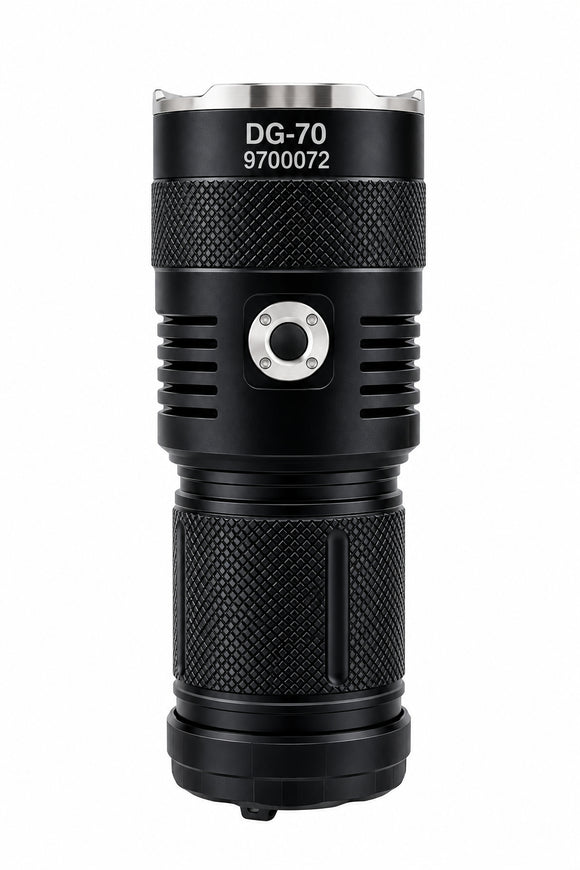

The HUATEC DG-70 is a compact rechargeable UV-A inspection torch providing high output with a wider beam than the DG-50. It is intended for portable fluorescent MPI, FPI and leak-detection work.
Applications
- Fluorescent magnetic particle inspection (MPI)
- Fluorescent penetrant inspection (FPI)
- Fluorescent leak detection
- Weld, casting, forging and component surface inspection
Key Features
- 365 nm UV-A LED light source
- Central UV-A intensity of at least 20,000 µW/cm² at 380 mm
- Instant start with stable cold-light output
- IP66 dust and water protection stated by the manufacturer
- Anti-magnetic-interference design
- Compact four-battery configuration
Technical Specifications
| Model | DG-70 |
| UV-A wavelength | 365 nm |
| UV-A intensity at 380 mm | ≥20,000 µW/cm² |
| Irradiated area at 380 mm | Ø80 mm |
| Output power | 9 W |
| Battery | 4 × ICR 18650, 2600 mAh |
| Operating time | ≥5 hours |
| Charging time | ≥5 hours |
| Dimensions | Ø60 × Ø50 × 143 mm |
| Weight including batteries | 610 g |
Standards and Suitability
Manufacturer states conformity with NB/T 47013-2015 and IEC 60529 IP66. No ASTM E3022 or ISO 3059 certification is stated in the supplied documentation.

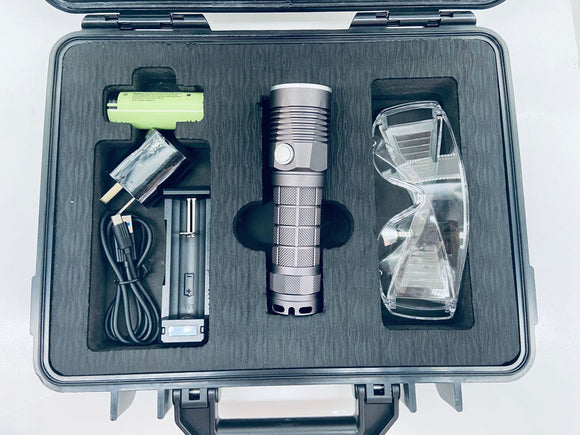

Standard Supply
- DG-70 lamp
- 4 rechargeable batteries
- Charger
- Carry case
- Operating manual
- Manufacturer certificate
- Warranty card and packing list
Always confirm the governing inspection procedure and required viewing conditions before selection and use.
