Holiday Detector Intelligence Pulsed High Voltage Porosity HD95

Product Name: HD95 Holiday Detector Intelligence Pulsed High Voltage Porosity Detector 1KV/50KV

Short Description: The HD95 Holiday Detector is a cutting-edge tool designed for high precision inspection of protective coatings. Equipped with an intelligent pulsed high voltage system, this device ensures thorough detection of porosity, pinholes, and flaws in coatings.

Product Features:

• Advanced Technology: Features an anti-jamming intelligent chip and LED screen, coupled with a digital control circuit for precise high voltage output ±(0.1KV+3% reading).
• Versatile Voltage Adjustment: Automatically adjusts voltage from 1KV to 50KV based on the thickness of the protective coating, enhancing adaptability and accuracy.
• Comprehensive Display: Equipped with a 128x64 LED screen that provides essential data and backlit for visibility in various environments.
• Extended Operation: Powered by a 12V 4400mA lithium battery, offering over 12 hours of operation at maximum voltage settings.
• Portability: Designed for field use with a durable ABS carrying case, making it ideal for on-site applications.

Technical Specifications:

• Test Voltage Range: 1KV to 50KV
• Thickness Range: 0.1mm to 36.5mm
• High Voltage Output: Pulse
• Voltage Precision: ±(0.1KV + 3%)
• Maximum Leak Record: 999 leaks
• Alarm Method: Headphone buzzer and visual light indicator
• Power Consumption: ?6W
• Dimensions: 240mm x 165mm x 85mm
• Battery Life: ?12 hours (Max voltage); Charging time approximately 4.5 hours

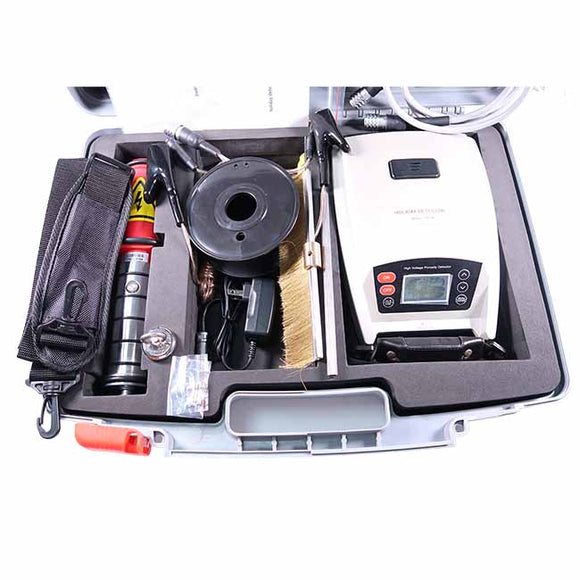

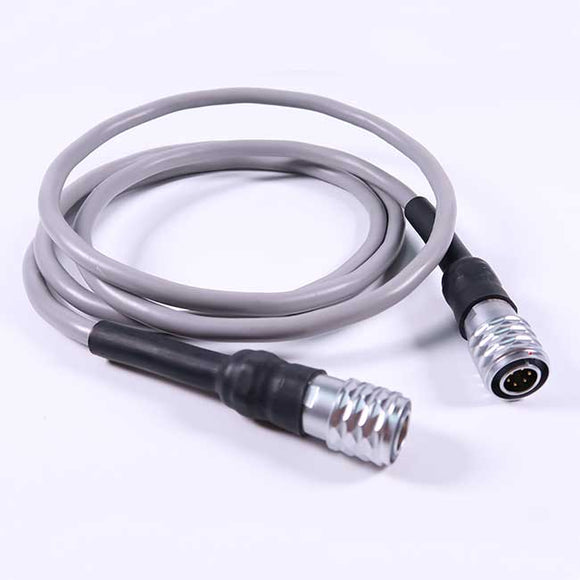

Standard Configuration: Includes the main unit, high-voltage probe, probe connecting cable, fan-shaped probe brush, flat brush, connecting rod, grounding wire, charger, strap, magnetic grounding pole, and an ABS carrying case. Also comes with a manual, certificate, warranty card, and fuses.

The HD95 is indispensable for professionals in industries like oil and gas, construction, and manufacturing where maintaining the integrity of protective coatings is crucial. This detector provides a reliable and efficient means of conducting non-destructive testing to ensure safety and quality.
