Overview

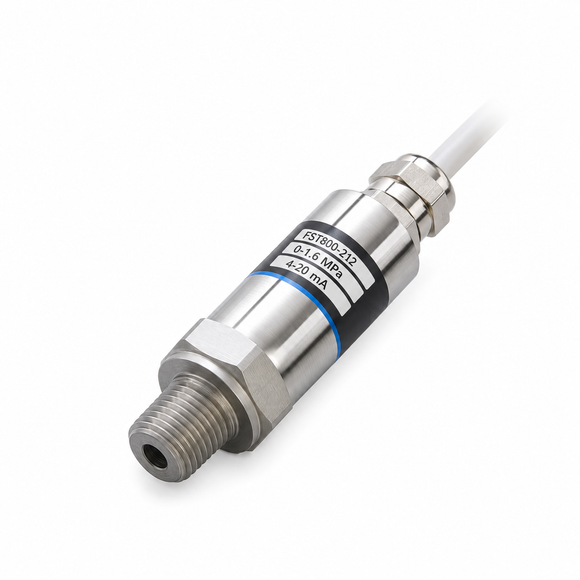

The FST800-212 is a high-precision industrial gauge-pressure transmitter for process measurement, monitoring and control.
Key specifications
- Quoted ranges: 40 kPa, 100 kPa, 250 kPa, 1 MPa, 3 MPa, 10 MPa and 40 MPa
- Accuracy: 0.1% span quoted
- Output: 0–5 V or 4–20 mA
- Pressure connection: G1/4
- Electrical connection: direct lead with 1.5 m cable
Ordering
Selecting the correct pressure range and output is essential. Final configuration, calibration documentation, price and lead time are confirmed at quotation.
Documentation and supply
- Firstrate supplies a general technical datasheet rather than a model-specific datasheet.
- CE and RoHS documentation is available.
- A factory test report is available on request; this is not an accredited calibration certificate.
- One-year manufacturer warranty.
- Typical supplier lead time: 7–10 working days after payment.
Special-order product. Final configuration and included components are confirmed at quotation. Price includes 15% VAT; international freight and optional certification charges are quoted separately.
