Description

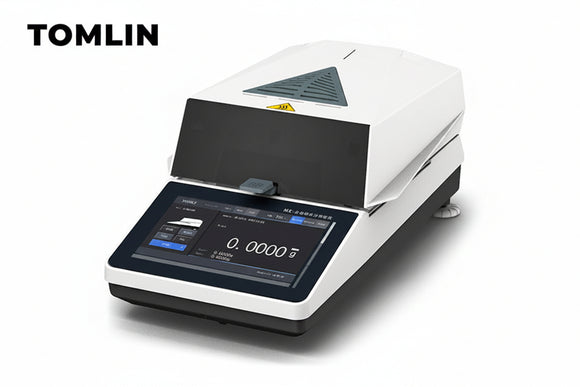

The TOMLIN INSTRUMENTS TMX Series Halogen Moisture Analyzer is a high-precision solution designed for advanced laboratory and industrial applications where accuracy, traceability, and data control are critical. It is ideal for environments requiring consistent, repeatable results with full confidence in measurement integrity.
Equipped with enhanced system controls, data management features, and high-resolution weighing technology, the TMX Series supports more demanding workflows. Its advanced interface and connectivity options make it suitable for regulated industries and professional testing environments.
Features
- High-precision measurement for advanced moisture analysis
- Touchscreen interface for intuitive operation
- User management with administrator and operator access levels
- Internal data storage with history tracking
- Temperature calibration and controlled heating system
- Optional Bluetooth and Wi-Fi connectivity
- Label printing support
- Time and date logging for traceability
- Silent cooling fan system
- Automatic door operation (model dependent)
Specifications
|
TMX SERIES Product Specifications |
||||
|
Product specification |
TMX -T7 |
TMX-T7 |
||
|
Model |
1003TMX-T7 |
1003TMX-T7+ |
1004TMX-T7 Pro |
1004TMX-T7 Pro+ |
|
Product name |
T7 |
T7+ |
T7 Pro |
T7 Pro+ |
|
Max Resolution |
110g |
110g |
110g |
110g |
|
Resolution |
0.001g |
0.0001g |
||
|
Sensor |
HBM |
Electromagnetic force |
||
|
Display |
7 inch touch panel |
|||
|
Open mode |
Manual |
Automatic |
Automatic |
Automatic |
|
Calibration |
External calibration |
External calibration |
External calibration |
Internal calibration |
|
Min weighing |
0.004g |
0.0004g |
||
|
Test temperature |
40~200℃ 1℃ Step (Optional 230℃ 1℃Step) |
|||
|
Stable Time |
≤3S |
|||
|
Pan Size |
96mm |
|||
|
Operation temp |
5~35℃ |
|||
|
Test mode |
Standard/Fast/Soft/Ladder |
|||
|
Shutdown mode |
Auto/Manual/Timed/Custom |
|||
|
Heating mode |
Halogen lamp |
|||
|

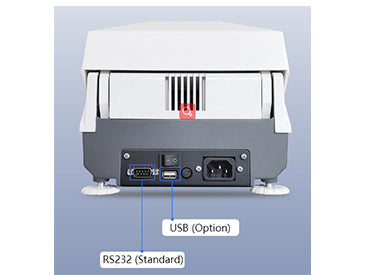

Interface |
RS232、USB (Optional) |
|||
|
Store date |
200 sets of addresses, 200 sets of test reports |
|||
Industries Used In
- Pharmaceutical manufacturing and laboratories
- Research and development facilities
- Chemical and analytical laboratories
- Food and ingredient testing
- Quality assurance and compliance environments
Downloads
Product Data Sheet Link
