Overview
Choose a Schaller humimeter for the material and reporting requirement. FS1 and FS1.1 are compact grain instruments; FSx covers a wider selection of seeds and crops; FSW adds hectolitre weight. FS4.2 is the specialist salt and granulate option and must not be selected as a general grain meter.
Key features
- Whole-sample measurements without grinding for supported materials
- FSx and FSW include USB data transfer
- FSW measures hectolitre weight as well as moisture
- Factory calibration report available as a separate choice
Applications

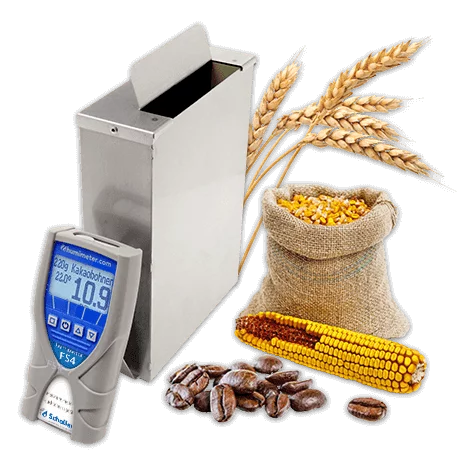

- Grain intake and storage
- Seed and feed quality

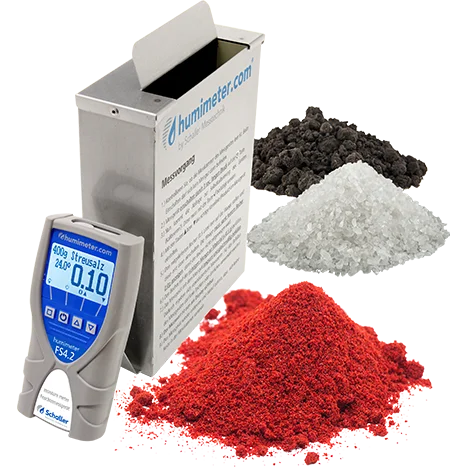

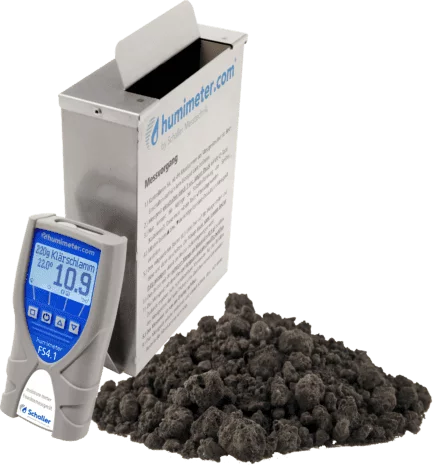

- Salt, granulates and sewage sludge with FS4.2
Specifications
| FS1 | 5–30% water; resolution 0.1%; reference-material accuracy ±0.7%; 360 g |
|---|---|
| FS1.1 | 5–25% water; resolution 0.5%; reference-material accuracy ±0.9%; 360 g |
| FSx | 0–50% water, material-dependent; resolution 0.1%; reference-material accuracy ±0.4%; 1.3 kg |
| FSW | 5–40% water, material-dependent; resolution 0.1%; reference-material accuracy ±0.4%; 1.7 kg |
| FSW hectolitre weight | 30–90 kg/hl, material-dependent; resolution 0.1 kg/hl; reference-spout accuracy ±0.7 kg/hl |
| FS4.2 | Salt 0–1%; sea salt 1–4%; sewage sludge 0–55%; custom granulates require a suitable calibration curve; 1.3 kg |
| Dimensions | FS1/FS1.1 155 × 75 × 90 mm; FSx 260 × 70 × 250 mm; FSW 250 × 80 × 180 mm; FS4.2 255 × 75 × 255 mm |
Included equipment and kit selection
FS1 includes scale, cup, case and batteries; FS1.1 includes scale, cup and batteries. FSx includes USB/basic software, scale, cup, case and batteries. FSW includes USB/basic software, cup, funnel, case and batteries. FS4.2 includes USB/basic software, scale, cup, case and batteries. Factory report option adds 10600.
Optional accessories and selection notes
Confirm the exact crop or granulate before ordering. Custom calibration curve development 11217 and curve entry 12297 are separately quoted; they are not included in a factory certificate. Test equipment 11758 is available for supported FSx/FSW models.
