The TOMLIN ATP Fluorescence Detector is a handheld luminometer for rapid hygiene verification. A swab is taken from a surface or rinse water, and the instrument measures the light produced by the ATP (adenosine triphosphate) reaction, giving a cleanliness result in relative light units (RLU) within seconds. It is used in food and beverage production, healthcare, pharmaceuticals, water treatment and public health inspection.
Features

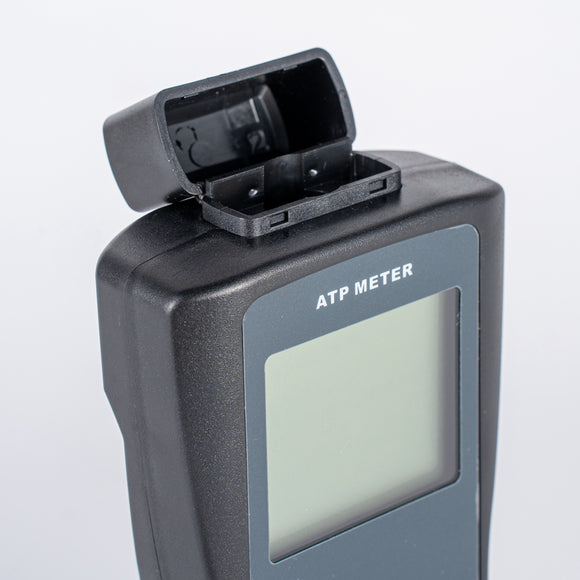

- Special sealing material improves light exclusion for more accurate and stable readings
- Simple interface for easy operation
- Bottom-detection design: holding or placement angle does not affect the result

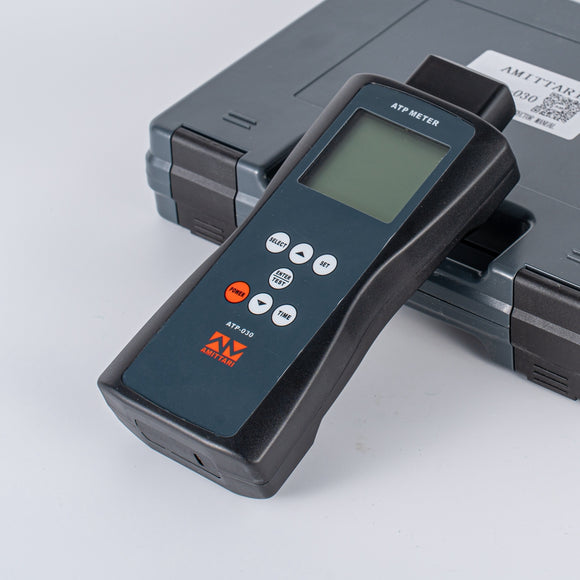

- Integrated case design for convenient transport
- Low background value for reliable detection of trace ATP with good reproducibility
Applications
Food, medicine and health, daily chemicals, papermaking, industrial water treatment, environmental protection, water administration, customs and quarantine, law enforcement and more.
Specifications
| Sensitivity | 1 × 10⁻¹⁵ mol ATP (standard) |
| Detection limit | ≤ 1.0 CFU/ml |
| Detection range | 0 – 9999 RLU (relative light units) |
| Faecal coliform | ≤ 1 × 10⁻⁶ CFU |
| Test time | 1 – 60 seconds |
| Repeatability | ±5 % or ±5 RLU |
| Background value | ≤ 1 RLU |
| Test modes | RLU, or coliform screening |
| Limit settings | More than 1000 |
| Storage | More than 3000 results |
| Data transfer | USB port to PC |
| Size (W × H × D) | 199 × 76 × 37 mm |
| Weight (with battery) | 265 g |
| Operating temperature | 0 – 40 °C |
| Relative humidity | 20 – 85 % |

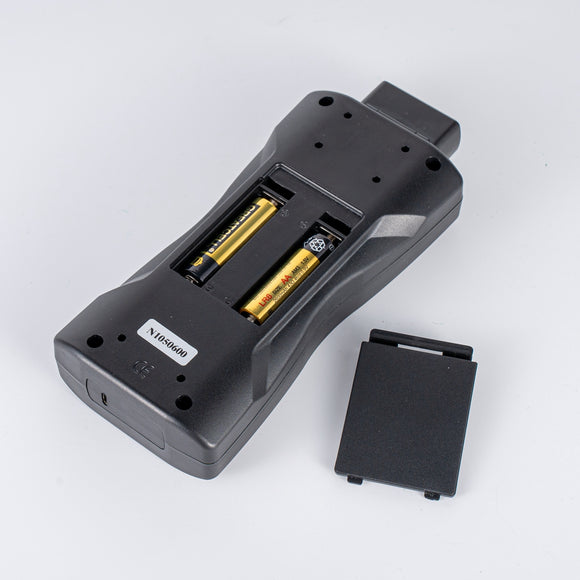

| Power supply | 2 × 1.5 V AA batteries |

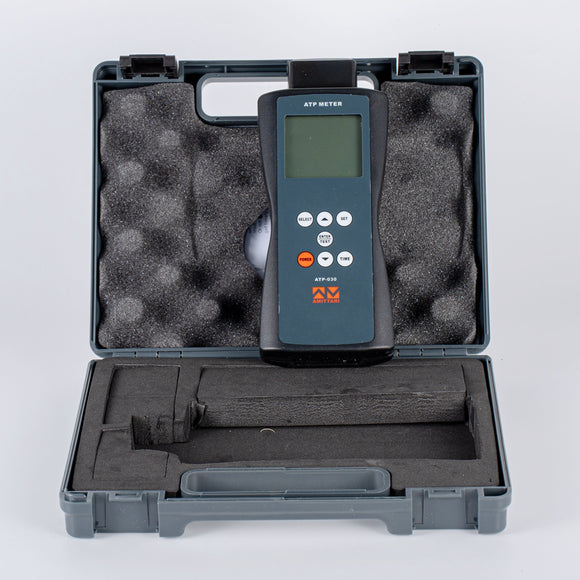

Standard accessories: main unit, carrying case (B04).
Optional accessories: test swabs, RS-232C data cable with software.
