CEM EVSE-200 EV Charging Station Test Kit with DT-6650 Multifunction Tester

The CEM EVSE-200 EV Charging Station Test Kit is a professional solution for commissioning, testing, fault finding and routine verification of AC electric vehicle charging stations.

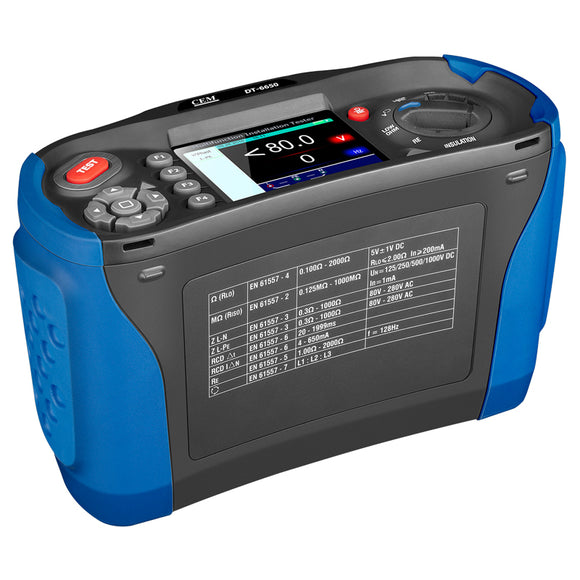

The kit combines the CEM EVSE-200 EV charging station test adapter with the CEM DT-6650 multifunction installation tester, providing both EVSE simulation functions and comprehensive electrical installation testing in one package.

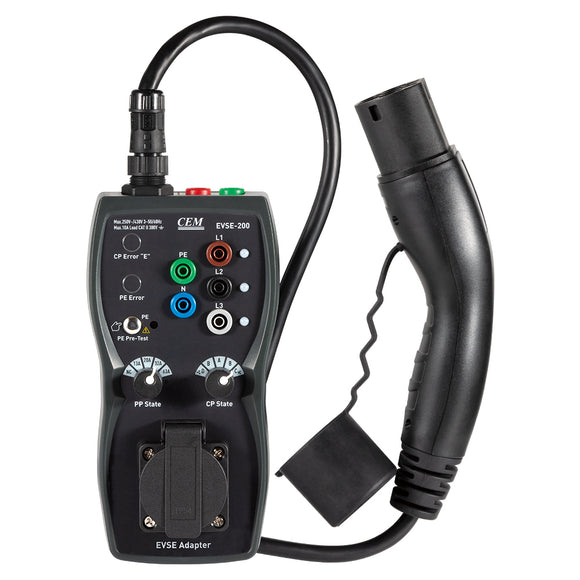

The EVSE-200 simulates electric vehicle and charging cable conditions and provides access to the charging station's L1, L2, L3, N, PE and CP signals. The DT-6650 can then be used to perform RCD, loop impedance, insulation resistance, earth resistance, continuity, voltage, frequency and phase sequence testing.

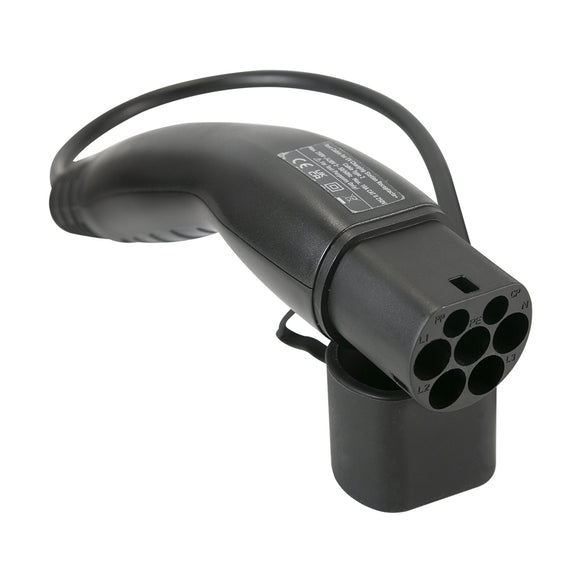

Supplied with both Type 1 and Type 2 EV charging adapters.

Key Features

• Complete EV charging station testing solution
• Includes CEM EVSE-200 EV charging station adapter
• Includes CEM DT-6650 multifunction installation tester
• Includes Type 1 EV charging adapter
• Includes Type 2 EV charging adapter
• Protective Earth (PE) pre-test
• Proximity Pilot (PP) cable simulation
• Control Pilot (CP) vehicle simulation
• CP error simulation
• PE / earth fault simulation
• Access to L1, L2, L3, N and PE measurement terminals
• CP signal output for waveform testing
• Integrated mains test socket
• Three-phase voltage indication
• RCD testing
• High-current loop impedance testing
• No-trip loop impedance testing
• Line impedance testing
• Insulation resistance testing
• Low-resistance and continuity testing
• Earth resistance testing
• AC/DC voltage measurement
• Frequency measurement
• Phase sequence testing
• Colour TFT display
• Data recording and datalogging
• Bluetooth connectivity
• Rugged IP65 DT-6650 tester

EVSE Charging Station Simulation

The EVSE-200 allows the technician to simulate different charging cable ratings and electric vehicle operating states to verify the correct response of the charging station.

PP Cable Simulation

• No cable / NC
• 13 A
• 20 A
• 32 A
• 63 A

CP Vehicle Simulation

• State A – Electric vehicle not connected
• State B – Electric vehicle connected, not ready to charge
• State C – Electric vehicle connected and ready to charge
• State D – Electric vehicle connected and ready to charge, ventilation required

The tester also provides dedicated CP error and PE fault simulation functions to verify that the charging station correctly interrupts the charging process when a fault condition is detected.

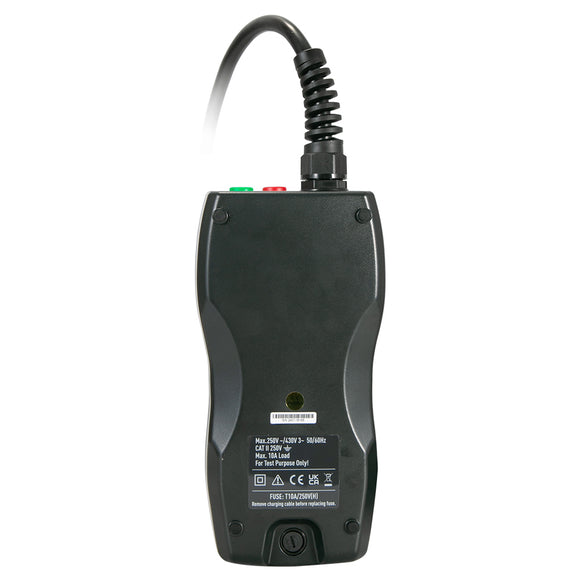

CEM EVSE-200 Specifications

PE Pre-Test: Yes

PP Simulation: NC, 13 A, 20 A, 32 A, 63 A

CP States: A, B, C, D

CP Error Simulation: On / Off

PE / Earth Fault Simulation: On / Off

Measurement Terminals: L1, L2, L3, N, PE

Measurement Terminal Rating: Max. 250 / 430 V AC, max. 10 A

Mains Test Socket: Max. 250 V AC, max. 10 A

CP Signal Output: Approx. ±12 V

Input Voltage: Up to 250 V single-phase / 430 V three-phase

Frequency: 50 / 60 Hz

Maximum Current: 10 A

Type 2 Connection: AC charging Mode 3, compatible with IEC 62196-2 Type 2

Type 1 Connection: AC charging Mode 3, compatible with Type 1 / SAE J1772

Measurement Category: CAT II 300 V

Protection Rating: IP54

Protection Class: Class II

Pollution Degree: 2

Operating Temperature: 0 to 40 °C

Storage Temperature: -10 to 50 °C

Operating Humidity: 10 to 85% RH, non-condensing

Maximum Operating Altitude: 2000 m

Dimensions: Approx. 227 × 109 × 63 mm

Weight: Approx. 1 kg

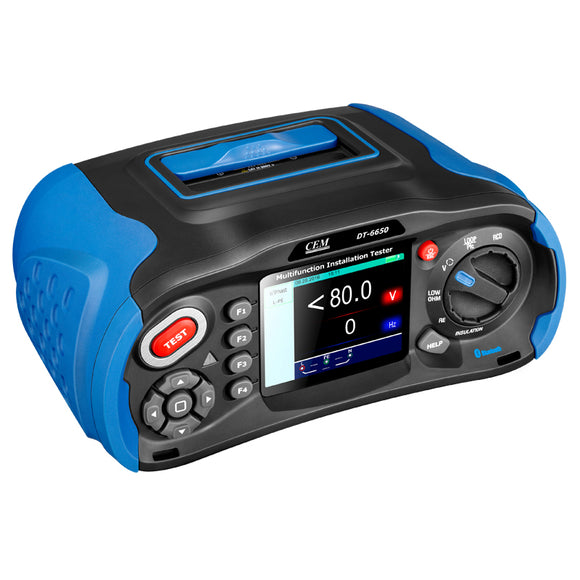

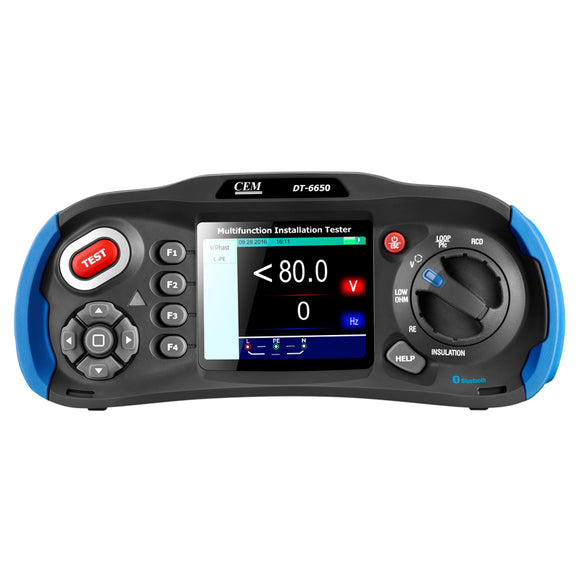

CEM DT-6650 Multifunction Installation Tester

The DT-6650 provides the electrical installation measurements required for comprehensive testing of EV charging installations.

Testing Functions

• RCD testing
• L-PE high-current loop impedance
• L-PE no-trip loop impedance
• L-N line impedance
• Insulation resistance
• Low resistance / continuity
• Earth resistance
• AC/DC voltage
• Frequency
• Phase sequence

DT-6650 Specifications

L-PE High-Current Loop: 0.23 to 999 Ω

L-PE No-Trip Loop: 0.23 to 999 Ω

L-N Line Impedance: 0.23 to 999 Ω

RCD Test Currents: 10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 650 mA and 1 A

RCD Test Multipliers: ×½, ×1 and ×5

RCD Modes: General and selective / time-delayed

RCD Polarity: 0° / 180°

Voltage Measurement: 80 to 500 V AC/DC

Frequency: 45 to 65 Hz

Insulation Test Voltages: 125 V, 250 V, 500 V and 1000 V

Insulation Resistance: Up to 1000 MΩ

Low Resistance: 0 to 2000 Ω

Earth Resistance: 0 to 2000 Ω

Phase Sequence: Yes

Display: 3.5-inch TFT colour display

Display Resolution: 320 × 240 pixels

Safety Category: CAT III 600 V

Protection Rating: IP65

Operating Temperature: 0 to 45 °C

Storage Temperature: -10 to 60 °C

Battery Life: Approx. 15 hours

Dimensions: Approx. 242 × 105 × 145 mm

Weight: Approx. 1.56 kg

Data Recording

The DT-6650 incorporates onboard data recording and datalogging functions, allowing test results to be stored for later review.

Bluetooth connectivity is also provided for compatible data transfer and communication applications.

Typical Applications

• EV charging station commissioning
• EVSE installation testing
• Periodic EV charger inspection
• Electrical safety verification
• EV charger fault diagnosis
• RCD verification
• Protective earth testing
• Control Pilot testing
• Proximity Pilot simulation
• Loop impedance testing
• Insulation resistance testing
• Earth resistance testing
• Electrical installation testing

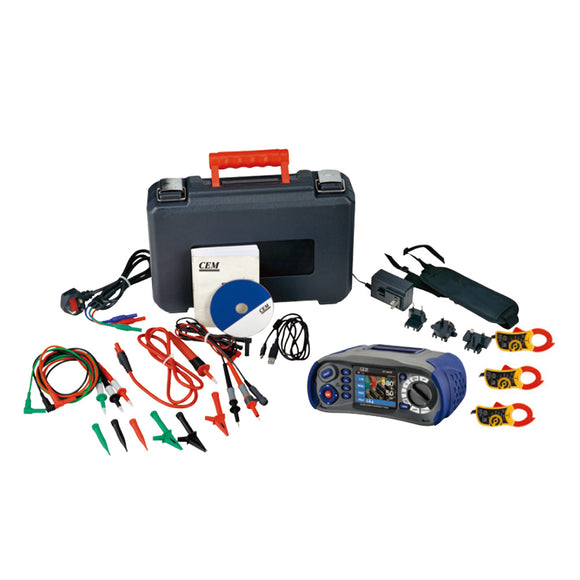

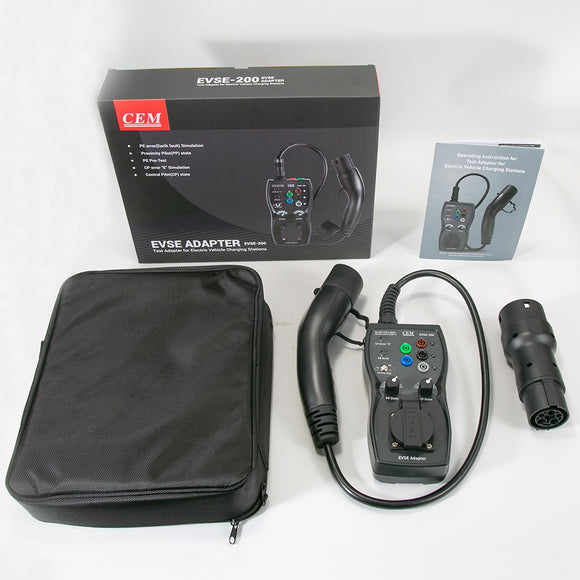

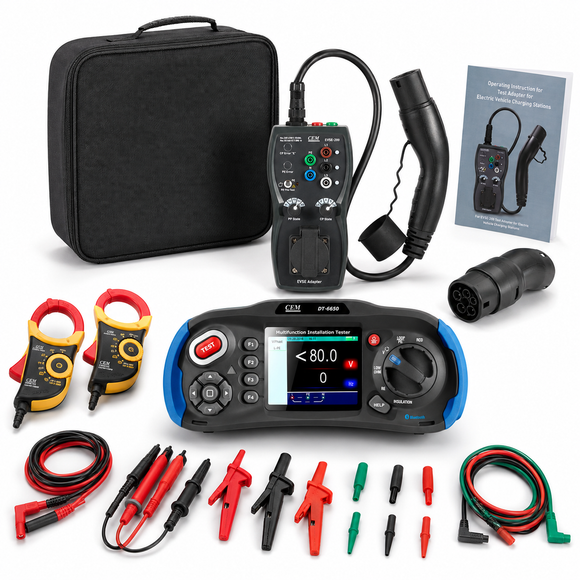

What's Included

• CEM EVSE-200 EV charging station test adapter
• CEM DT-6650 multifunction installation tester
• Type 1 EV charging adapter / test cable
• Type 2 EV charging adapter / test cable
• Standard measurement accessories
• Carrying / storage accessories
• User documentation
