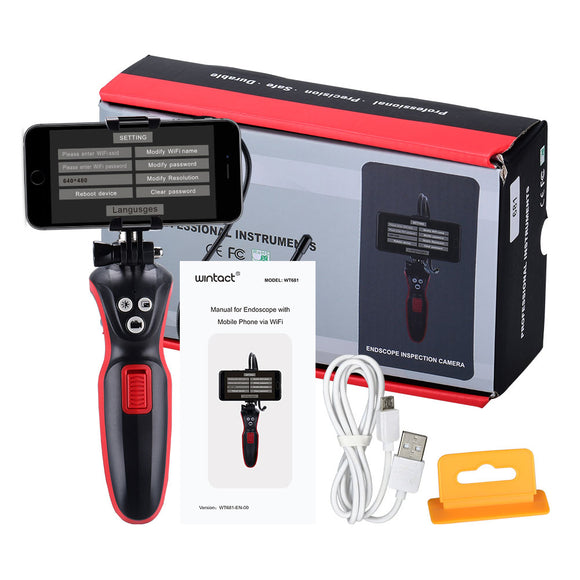

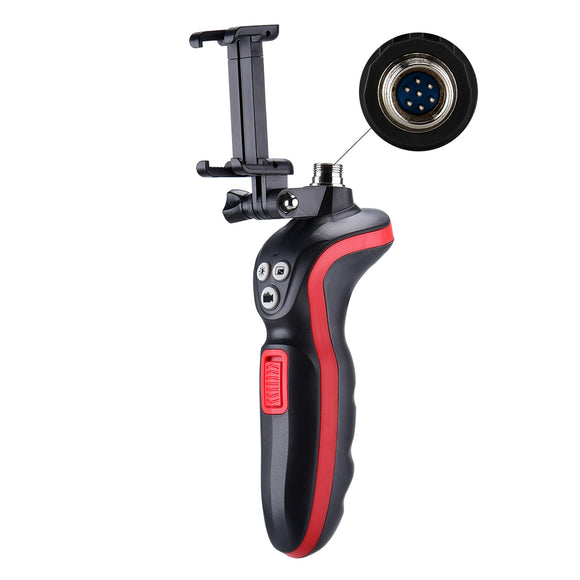

Endoscope Inspection Camera M681

PDF Specification Sheet - Download Here

The Endoscope Inspection Camera is specifically designed for non-destructive testing in complex industrial environments. It enables inspection and observation of hard-to-reach locations without the need for disassembling or stopping equipment operations. Here are its key features:

Lightweight and Easy to Operate: The endoscope has a lightweight design, making it easy to handle and maneuver during inspections.

Adjustable LED Lights: Equipped with six high-brightness LED lights, the camera provides adjustable lighting to ensure clear visibility in various environments.

Non-Destructive Testing: The endoscope allows for non-destructive testing, eliminating the need for disassembling or damaging assemblies or halting equipment operations.

Rechargeable Lithium Battery: It comes with a built-in rechargeable lithium battery that offers a strong battery life, providing extended usage time during inspections.

High-Quality Images: The camera features a high-sensitivity chip that delivers high-quality images for accurate inspections and observations.

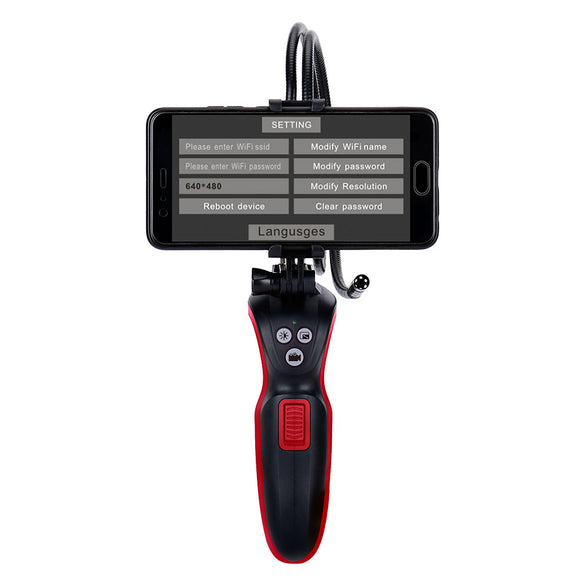

Rotatable Screen: The screen on the endoscope is rotatable, allowing for easy viewing of the captured images and videos.

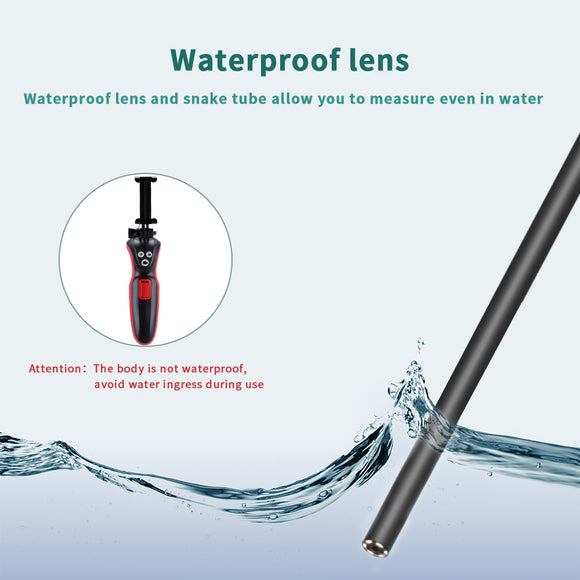

Waterproof Camera: The camera has an IP67 rating, ensuring its high sensitivity and functionality even in wet or submerged environments.

WiFi Connectivity: The endoscope can connect to a mobile phone via WiFi, enabling real-time viewing of videos, photos, and other media.

WiFi Parameters:

Wireless Network Standard: IEEE 802.11b/g/h
Working Frequency: 2.4GHz
Transmission Rate: Up to 150Mbps (802.11a/b/g/n)
Resolutions: 640x480, 1280x720, 1920x1080, 1600x1200
Camera Parameters:

IP Code: IP67
Diameter: 8.5mm
Hose Diameter: 6.5mm
Coiler Length: 100cm
Field of View Angle: 60 degrees
Sensor: 2-megapixel GOMS
Auxiliary Lighting: 6 high-brightness LED lights
Other Parameters:

Working Temperature: 0°C to 45°C (32°F to 113°F)

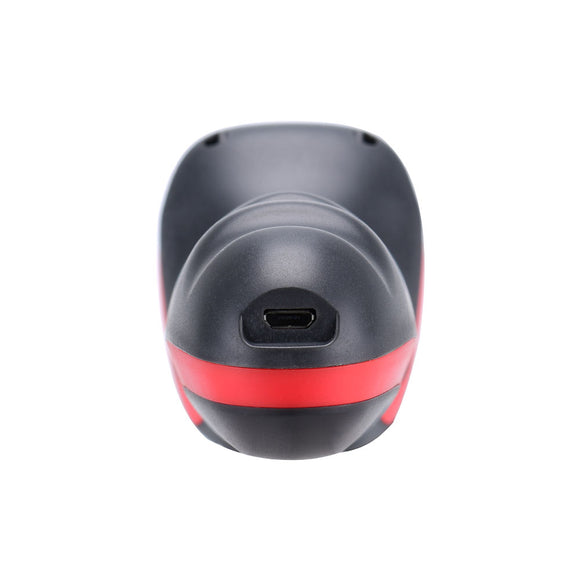

Power: Built-in 3.7V rechargeable lithium battery
Working Time: 4-5 hours
Charging Time: 5 hours
Weight: 287g
