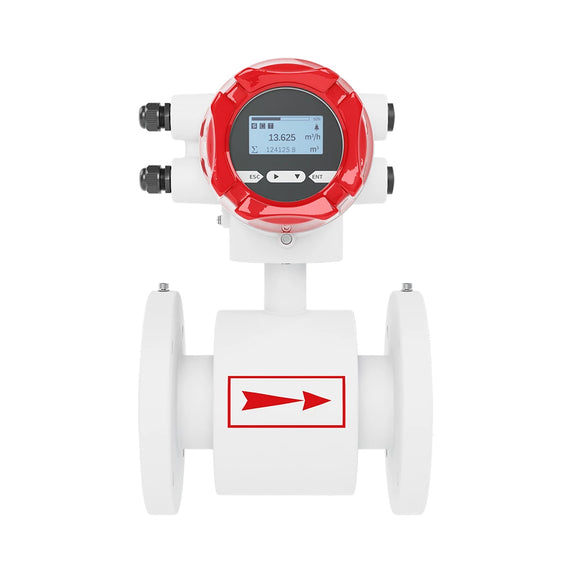

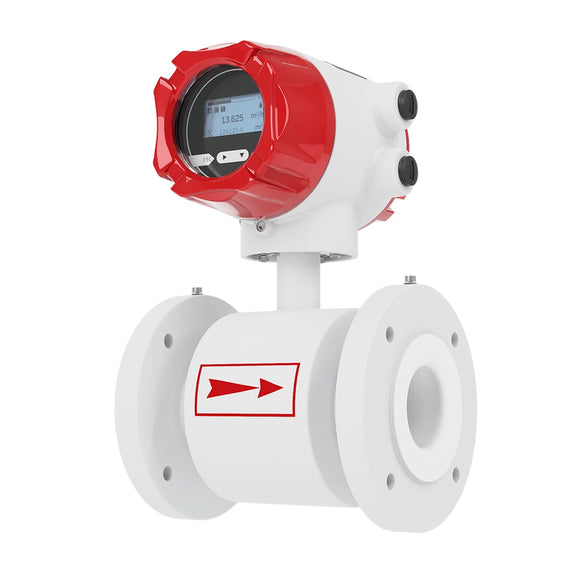

Supmea LDG-SUP-A100 Electromagnetic Flow Meter
High Accuracy Electromagnetic Flow Meter for Conductive Liquids
The Supmea LDG-SUP-A100 Electromagnetic Flow Meter is designed for accurate measurement of conductive liquids in closed pipelines. Based on Faraday's Law of Electromagnetic Induction, it provides reliable flow measurement without moving parts, making it ideal for industrial process control, water treatment, mining, chemical processing and municipal water systems.
With support for 4-20mA analogue output, pulse output and RS485 Modbus communication, the LDG-SUP-A100 integrates easily with PLC, SCADA and automation systems.
Key Features
- High accuracy (±0.5% F.S.)
- Suitable for conductive liquids
- DN10 to DN1000 pipe sizes
- 4-20mA analogue output
- Pulse output
- RS485 Modbus RTU communication
- Measures flow velocity, volume flow and mass flow
- Integrated or remote transmitter options
- Available in AC or DC powered versions
- No moving parts for minimal maintenance
- Excellent long-term stability
- Industrial-grade construction
Typical Applications
- Water treatment plants
- Wastewater treatment
- Municipal water supply
- Chemical processing
- Mining
- HVAC systems
- Pharmaceutical manufacturing
- Food processing
- Metallurgy
- Industrial process control
Technical Specifications
| Specification | Value |
|---|---|
| Measuring Principle | Electromagnetic Induction |
| Accuracy | ±0.5% F.S. |
| Pipe Sizes | DN10–DN1000 |
| Flow Velocity | 0.5–5 m/s (Typical) |
| Range Ratio | 10:1 |
| Current Output | 4–20mA |
| Pulse Output | Yes |
| Communication | RS485 Modbus RTU |
| Supply Voltage | 100–240VAC or 20–28VDC |
| Power Consumption | ≤15W |

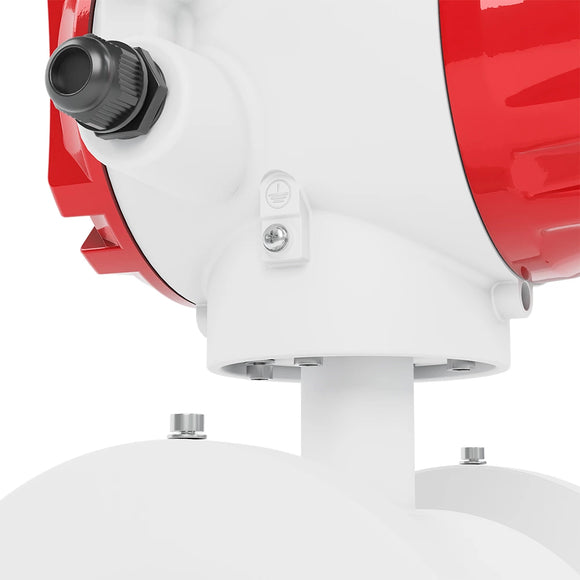

| Cable Entry | M20 × 1.5 |
| Process Measurement | Flow Velocity, Volume Flow, Mass Flow |
| Category | Available Options | Customer Selection |
|---|---|---|
| Pipe Size (DN) | DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600, DN700, DN800, DN900, DN1000 | Select size |
| Connection Type | JB/T 81 (J), GB/T9124 (D), Clamp (G), ISO2852 Clamp (I), Other (X) | Select connection |
| Pressure Rating | PN10 (B), PN16 (C), Other (X) | Select pressure |
| Body Material | Carbon Steel (MC), 304SS (M1), Other (XX) | Select material |
| Electrode Material | 316L (M3), Hastelloy B (MF), Hastelloy C (MG), Titanium (T1), Tantalum (T2), Platinum‑Iridium (MH), Tungsten Carbide (MJ) | Select electrode |
| Lining Material | PTFE (N6), Chloroprene Rubber (N1), Polyurethane (N2), Teflon F46/FEP (N7) | Select lining |
| Output & Power | AA (220VAC), AM (24VDC), AC (220VAC + SPST), AP (24VDC + SPST) | Select output |
| Protection Level | IP65 (WA), IP66/67 (W7), IP68 Remote (WC) | Select protection |
| Remote Cable Length | 0m, 10m, 15m, 20m, 25m, 30m, Other | Select cable length |
