Overview

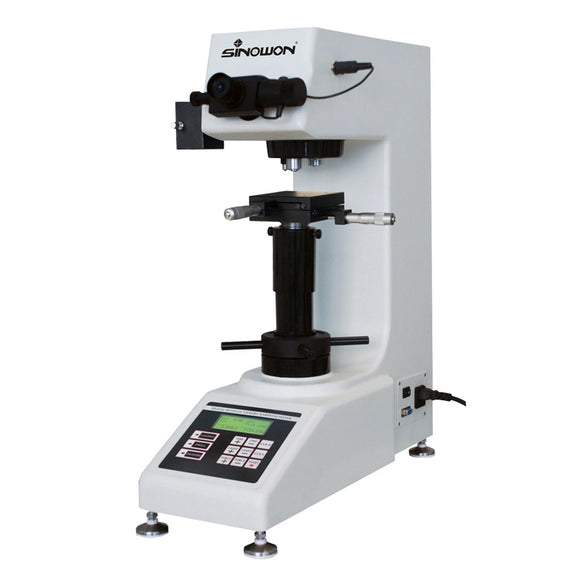

A bench-top Vickers hardness tester for quality control and materials inspection of metal components. Select the standard instrument or the camera and iVicky 2.0 software package for image-based measurement and reporting.
Key features
- LCD display.
- Motorized turret.
- Automatic loading, dwell and unloading.
- Selectable forces from 1 to 50 kgf, including HV1.
Applications
- Vickers hardness testing of metals and machined components.
- Production quality checks and materials research.
- Inspection of suitably prepared samples within the specified test-force range.
Specifications
| Product Name | Digital Vickers hardness tester | ||||
| Model | SV-5 | SV-10 | SV-30 | SV-50 | |
| Code# | 821-101S | 821-111S | 821-121S | 821-131S | |
| Loading Force | N | 2.94、4.9、9.8、19.6、24.5、29.4、49.0 | 2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0 | 4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294 | 9.8、19.6、24.5、29.4、49.0、98.0、196、294、490 |
| Kgf | 0.3、0.5、1、2、2.5、3、5 | 0.3、0.5、1、2、2.5、3、5、10 | 0.5、1、2、2.5、3、5、10、20、30 | 1、2、2.5、3、5、10、20、30、50 | |
| Optic System | Observe and Measure Objectives：10X/20X | Observe and Measure Objectives：10X/40X | Observe and Measure Objectives：10X/20X | Observe and Measure Objectives：10X/20X | |
| Hardness Range | 1HV-2967HV | ||||
| Turret | Manual Turret（Optional Motorized Turret） | ||||
| Loading Control | Auto loading dwell and unloading | ||||
| Eyepiece | 10x digital Eyepiece | ||||
| Dwell Time | 5-60s adjustable | ||||
| Illumination | LED / halogen | ||||
| Vertical Space | 170mm | ||||
| Horizontal Space | 130m | ||||
| Power Supply | AC220V/50Hz; AC110V/60Hz | ||||
| Tester Dimension | 530x225x630mm | ||||
| Packing Dimension | 630x460x710mm | ||||
| Gross / Net Weight | 75Kg/55Kg | ||||
| Conform Standards | ISO6507，ASTM E92，JIS Z2244，GB/T4340 | ||||
Included and optional accessories
Included: Vickers indenter, 10× measuring eyepiece, 10× and 20× measuring objectives, 100 mm working stage, two Vickers hardness reference blocks (700–800 HV30 and 400–500 HV5), power cord, dust cover and toolbox.
Software package: camera adapter, USB CMOS camera and iVicky 2.0 software.
