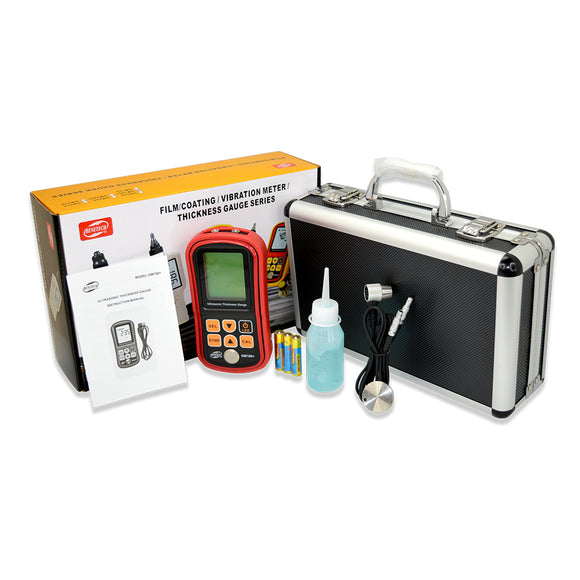

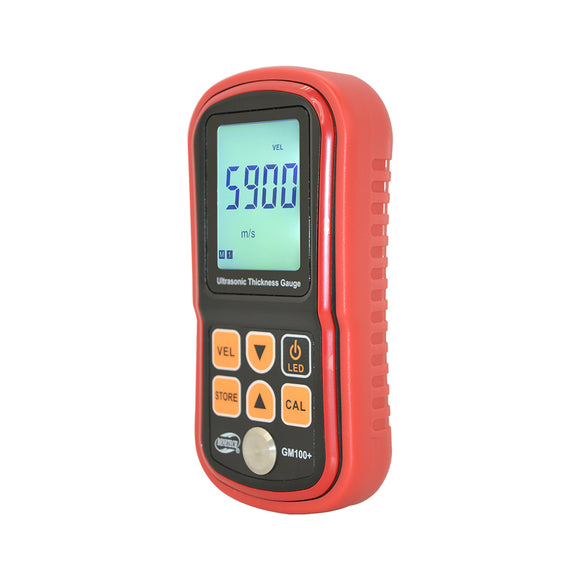

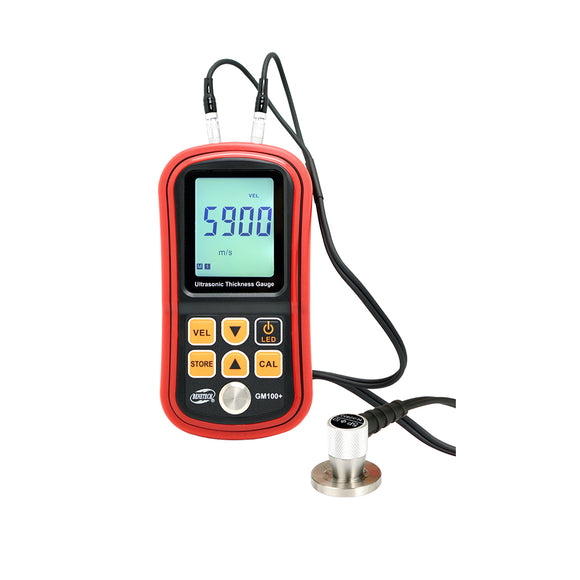

Digital Ultrasonic Thickness Gauge M100+

PDF Specification Sheet - Download Here

The Ultrasonic Thickness Gauge is an intelligent handheld device that utilizes the ultrasonic measuring principle and is controlled by a microprocessor. It provides quick and precise measurements of thickness for various industrial materials. The gauge is widely used in industrial settings for precise measurements of hardware, parts, and the monitoring of liquid levels in pressure containers. It finds applications in manufacturing, metal processing, and commercial inspection. The gauge possesses the following features:

Data Storage/Deletion:
The gauge allows for the storage and deletion of measurement data, providing convenient access to previous measurements.

Measuring Sound Velocity:
It is capable of measuring the sound velocity of materials, enabling accurate thickness measurements based on the known sound velocity.

LCD Backlight Display:
The gauge features an LCD display with a backlight, ensuring clear visibility of measurements even in low-light environments.

Low Battery Reminder:
It provides a low battery reminder to alert the user when the battery power is running low, ensuring uninterrupted operation.

Automatic Shut-Down:
The gauge has an automatic shut-down feature that conserves battery life by turning off the device when it is not in use.

Here are the specifications of the Ultrasonic Thickness Gauge:

Display: 4-digit LCD display
Resolution: 0.01mm (1.20 to 99.99mm), 0.1mm (100 to 300mm)
Working Frequency: 5MHz
Measuring Range: 1.20 to 300.00mm (steel)
Minimum Limit for Tube Measuring: ?20*3mm (steel)
Accuracy: +/- (1%H+0.05)mm, where H denotes the measured thickness
Sound Velocity Range: 1000 to 9999 m/s
Measuring Sound Velocity with a Given Thickness:
Measuring Range: 1000 to 9999 m/s
Accuracy: ±5% when the given thickness is ?20mm
Accuracy: ±1% when the given thickness is >20mm
Operation Temperature: 0? to 40?
Power Supply: 3*1.5V AAA batteries
Operation Current: Normal operation current ?45mA, With Backlight turn on current ?55mA
Stand-by Current: ?20uA
Size: 7214629mm
Weight: 202g
The Ultrasonic Thickness Gauge offers a reliable and efficient solution for measuring the thickness of industrial materials. Its portable and user-friendly design makes it suitable for a wide range of applications, providing accurate measurements and contributing to quality control and inspection processes.
