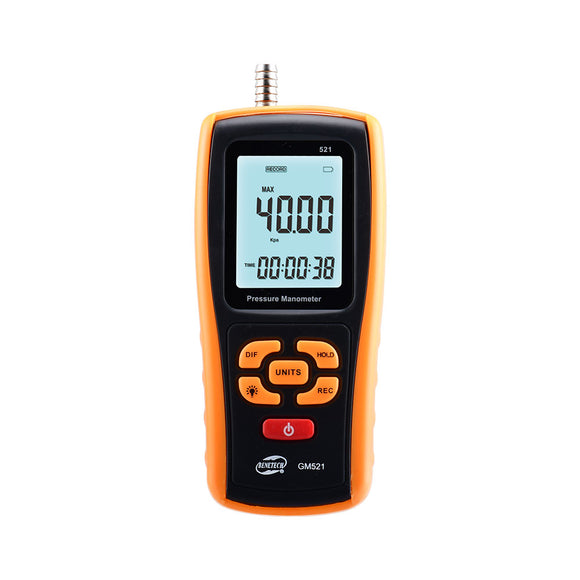

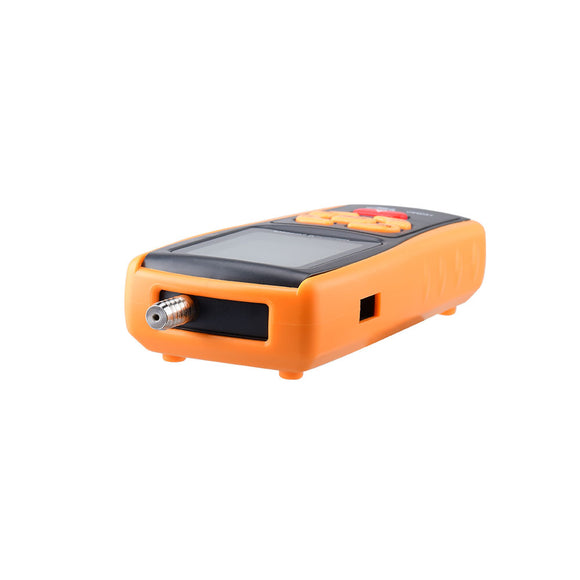

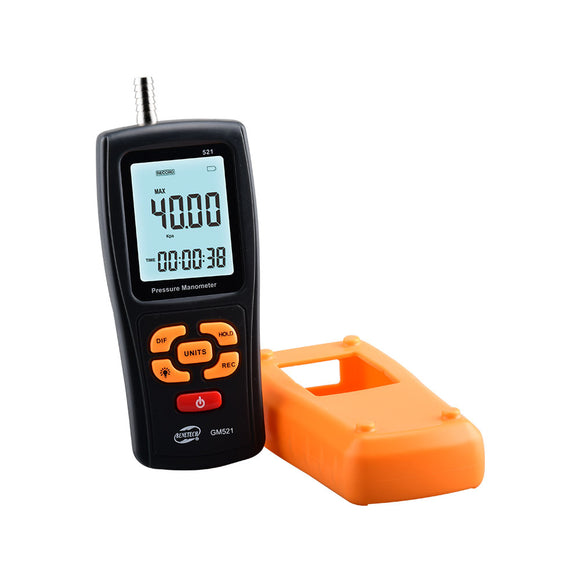

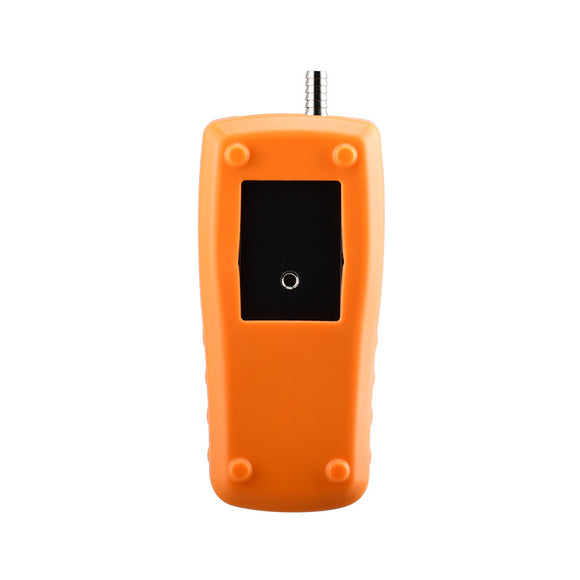

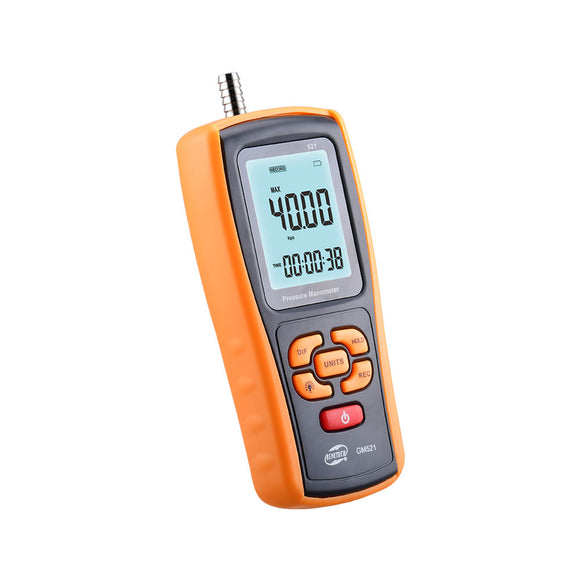

Digital Pressure Gauge M521

PDF Specification Sheet - Download Here

Introducing our Pressure Gauge with a wide range of selectable pressure units and advanced features. This versatile unit is designed to provide accurate pressure measurements for various applications. Here are the key specifications and functionalities:

Pressure Units:
This Pressure Gauge offers 11 selectable pressure units to suit your specific needs. You can choose from bar, mbar, kPa, kgf/cm², mmHg, cmH2O, Ozf/in², psi, inHg, inH2O, and ftH2O.

Data Save and Adjustment:
The unit features a data save function, allowing you to store and recall pressure readings for future reference. Additionally, it offers adjustment capabilities to fine-tune the gauge's performance according to your requirements.

Automatic Turn-Off:
To conserve battery life, the gauge is equipped with an automatic turn-off feature. If there is no further operation within 5 minutes, the unit will power off automatically.

PC Connectivity:
For convenient data analysis and record-keeping, the gauge can be connected to a PC using a USB wire. This enables you to read and export the pressure data for further analysis and documentation.

Measuring Range:
The pressure gauge has a measuring range of ±35kPa, making it suitable for a wide range of applications.

Ambient Temperature Compensation:
The unit is designed to compensate for changes in ambient temperature, ensuring accurate pressure measurements.

Resolution and Accuracy:
With a resolution of 0.01kPa, the gauge provides precise readings. It has an accuracy of ±0.3% FSO at 25?, ensuring reliable performance.

Repeatability and Linearity:
The gauge offers excellent repeatability, with a maximum deviation of ±0.2% FSO. It also boasts impressive linearity, with a deviation of ±0.29% FSO.

Reaction Time:
The gauge provides rapid response, with a typical reaction time of 0.5 seconds, allowing for quick and efficient pressure measurements.

Low Battery Reminder:
To prevent unexpected power loss, the gauge features a low battery reminder function, indicating when it's time to replace the batteries.

Operating and Storage Temperature:
The gauge can be used in temperatures ranging from 0? to 50?. For storage, it can withstand temperatures between -10? and 60?, ensuring its durability.

Power Supply:
The gauge is powered by four 1.5V AAA batteries, offering long-lasting operation.

Automatic Screen Off Time:
To conserve battery power, the gauge's screen will turn off automatically after 5 minutes of inactivity.

Normal Pressure Fluctuation Range:
The gauge maintains excellent stability, with a normal pressure fluctuation range of ±0.03kPa.

Damage Pressure:
The gauge can withstand pressure up to 150kPa, ensuring its durability in various working conditions.

Experience the precision and reliability of our Pressure Gauge, designed to meet your pressure measurement needs with accuracy and convenience.
