Product Description
Overview

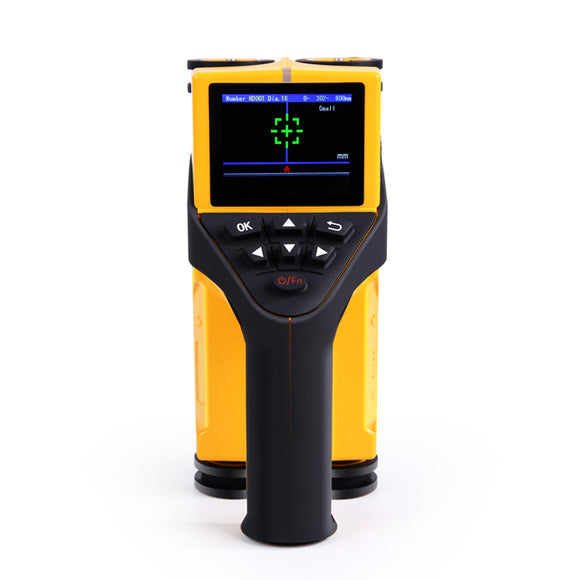

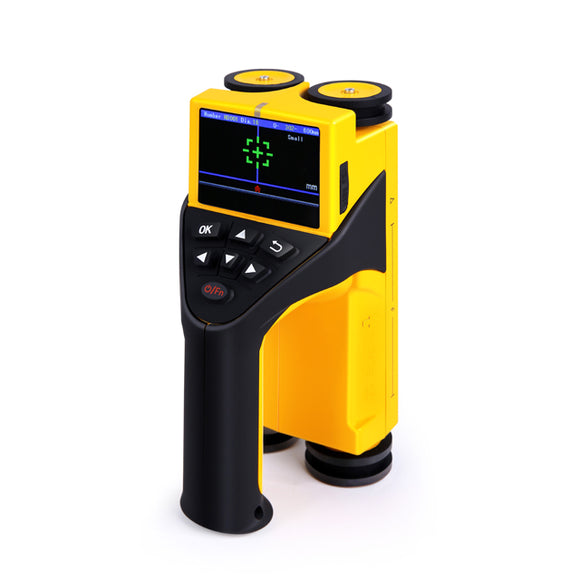

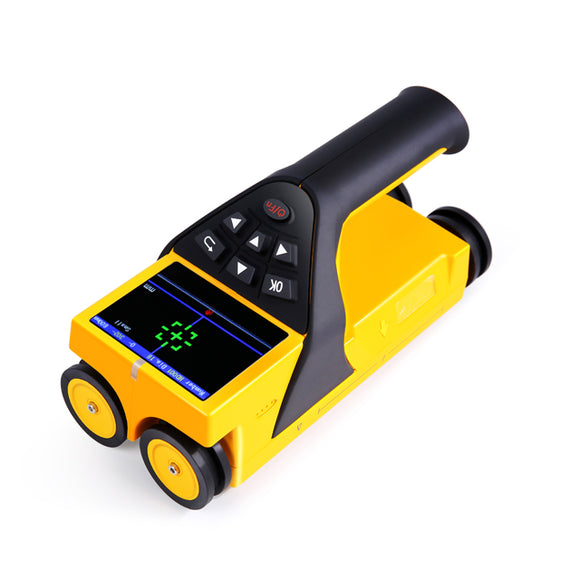

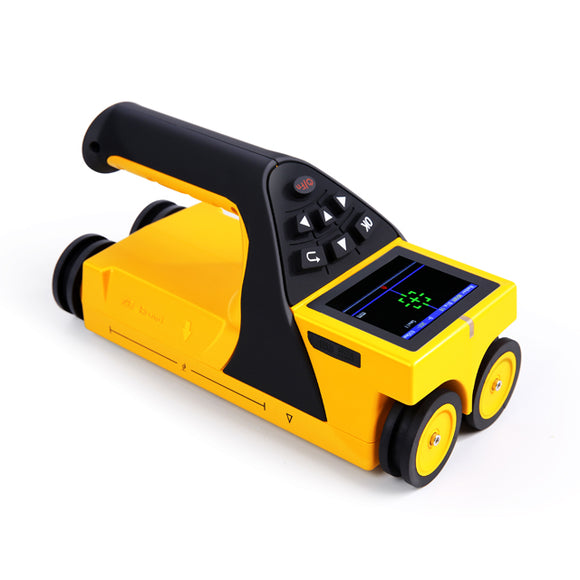

The ZD-310 and ZD-31 Integrated Rebar Locators are professional-grade instruments designed for detecting the position of internal reinforcement, measuring concrete cover depth, estimating rebar diameter, and identifying rebar spacing. Compact, accurate, and user-friendly, these devices are essential for construction quality control, structural assessment, and civil engineering applications.
Key Functions
-
Detects the location and orientation of reinforcing bars
-
Measures protective layer thickness (concrete cover depth)
-
Estimates rebar diameter and spacing
-
Supports multi-mode scanning: grid, profile, waveform, and thickness modes
-
Provides wave scan and JGJ detection capabilities
-
Features USB connectivity for data upload and analysis
-
Compact design with backlit display for clear data viewing in all environments
Model Comparison
| Specification | ZD-31 | ZD-310 |
|---|---|---|
| Protective layer thickness range (mm) | 6–650 | 6–650 |
| Measuring range (mm) | 1–90 (First range) | 5–185 |
| 5–185 (Second range) | ||
| Max error of protective layer thickness (mm) | ±2 (0–60 mm), ±4 (60–185 mm) | ±2 (0–100 mm), ±4 (100–185 mm) |
| Diameter measurement accuracy | ±1 | ±1 |
| Scanning modes | Thickness, grid, profile, waveform, JGJ | Thickness, spacing, diameter, JGJ |
| JGJ Testing Capability | Single point 1–6, auto avg. | Auto avg. |
| Data Transmission | USB | USB |
| Display Resolution | 2.8-inch LCD (320×240 pixels) | 2.8-inch LCD (320×240 pixels) |
| Power Supply | Built-in lithium battery | Built-in lithium battery |
| Shutdown Time Settings | 5, 10, 15, 30, 60, 90 minutes | 5, 10, 15, 30, 60, 90 minutes |
| Thickness Error Correction | -3.0 to +3.0 mm (steps of 0.5) | -3.0 to +3.0 mm (steps of 0.5) |
| Operating Temperature | -10°C to +42°C | -10°C to +42°C |

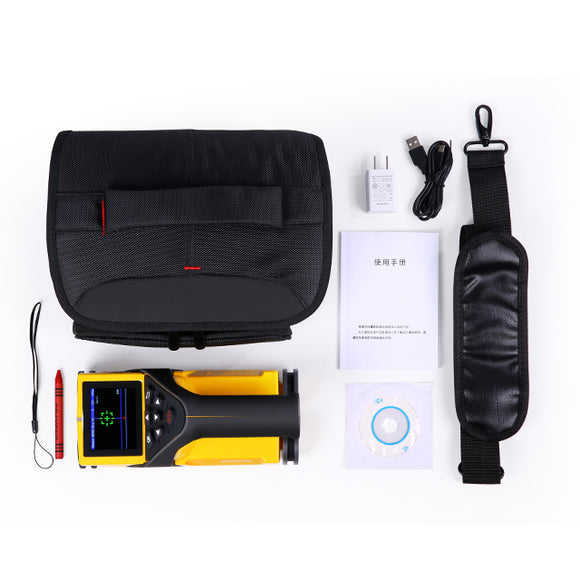

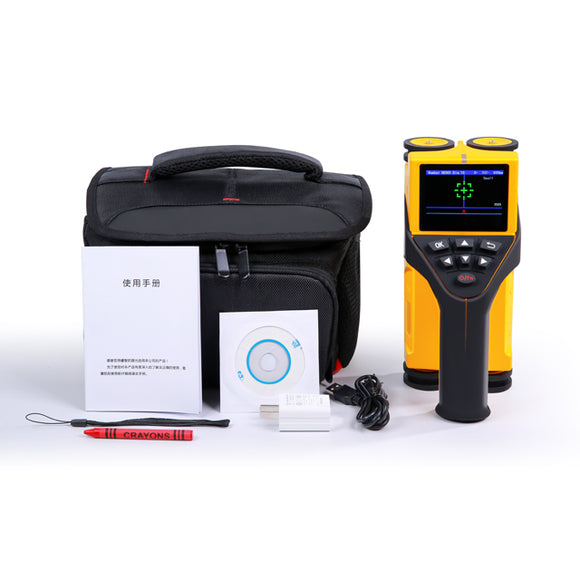

Package Contents
-
Main Unit
-
Charger and USB cable
-
Operation manual
-
Calibration tool (crayon/marker)
-
CD software
-
Carrying case
