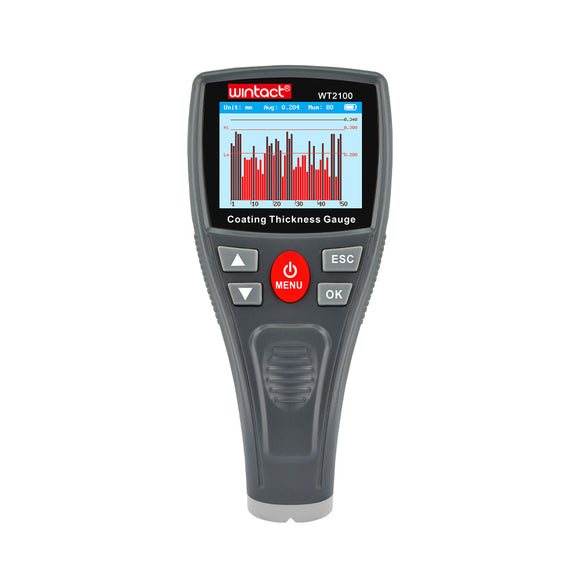

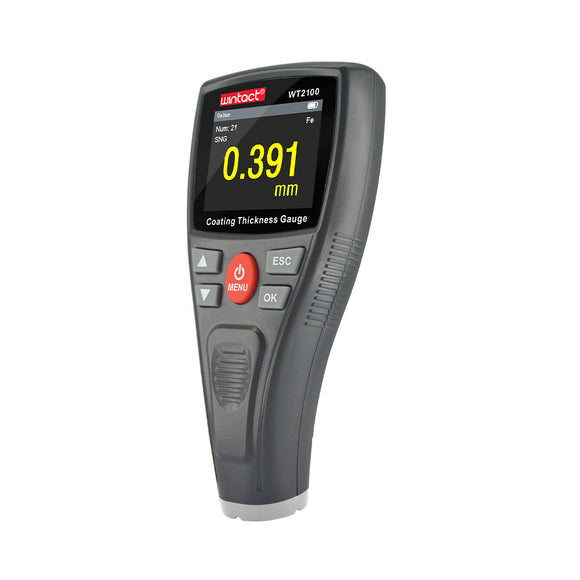

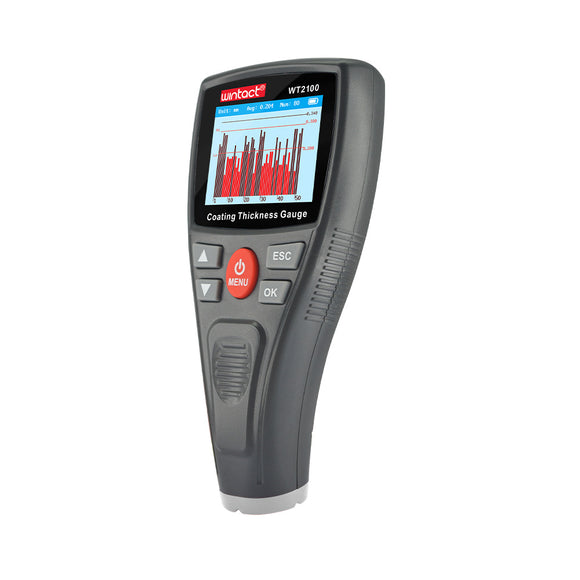

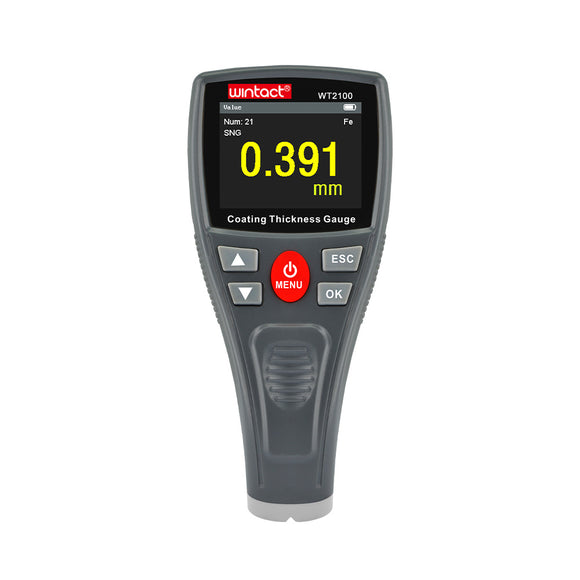

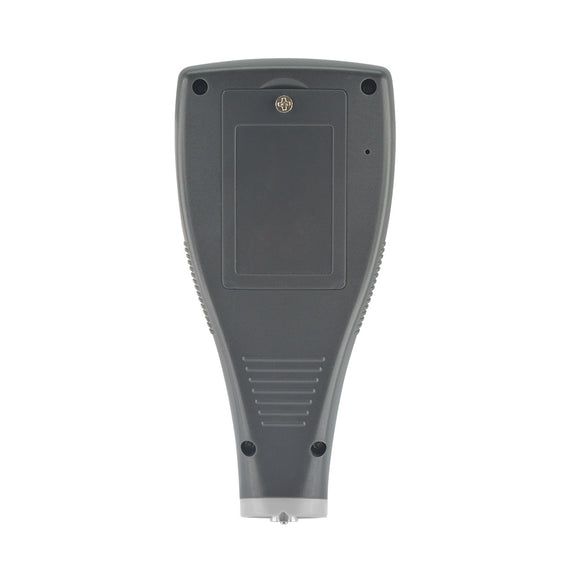

Digital Coating Thickness Gauge M2110

The Coating Thickness Gauge is a portable and user-friendly instrument designed for accurately measuring the thickness of non-magnetic coatings on magnetic metal substrates. It offers a range of features that ensure fast and precise measurements without causing any damage to the coating or substrate. Here are the key features of our Coating Thickness Gauge:

Menu Operation and Color-Screen HD Display:
The gauge features a user-friendly menu interface and a high-definition color screen display, providing easy navigation and clear visibility of measurement results.

Non-Magnetic Coating Thickness Measurement:
It is specifically designed for measuring the thickness of non-magnetic coatings, such as paint, electroplate, and thin films, on magnetic metal surfaces.

Two Measurement Methods:
The gauge offers two measurement modes: single measurement for individual readings and continuous measurement for a continuous stream of measurements.

Three Calibration Modes:
It provides three calibration modes: basic calibration, offset calibration, and zero calibration, ensuring accurate and reliable measurements.

Metric/Imperial Unit and Storage Function:
You can choose between metric and imperial units for measurement, and the gauge also includes a storage function to store and recall measurement data.

Screen Rotation, Charge Protection, Multi-Interface Displays, Screen Brightness Selection:
The gauge allows screen rotation for comfortable viewing, features charge protection for the battery, offers multi-interface displays for versatile use, and enables screen brightness selection for optimal visibility.

Automatic Shutdown:
To conserve battery power, the gauge has an automatic shutdown function that turns off the device after a period of inactivity.

Specifications:

Measurement range: 0~1500um/0~59mil

Resolution: ( 0.1μm(<100μm),1μm(≥100μm))/ 0.1mil/0.001mm

Measurement error: ≤150μm ±5μm >150μm ±(3%H+1μm)

Minimum diameter of magnetic metal substrate: 12mm

Minimum thickness of magnetic metal substrate: 0.5mm

Minimum radius of curvature for magnetic convex substrate: 2mm

Minimum radius of curvature for magnetic concave substrate: 11mm

Minimum thickness of non-magnetic metal substrate: 0.5mm

Battery: 1000 mAh Lithium battery (weight 36.5g) or 5V1Apower adapter

Size: 70.30*38.6*149.59mm

Weight: 108g (including battery)

Additional Accessories Included:

Calibration sheet: 6 sheets for calibration purposes.
Aluminum base: Used as a substrate for calibration.
Iron base: Used as a substrate for calibration.
USB cable: For connecting the gauge to a computer or power adapter.
Manual: Detailed instructions on how to use the gauge.
Host: The main unit of the coating thickness gauge.
PP box: Protective carrying case for safe storage and transportation.
Color box: Packaging box for the gauge.
Ni-MH rechargeable battery: 3 batteries included for power supply.
Plug: Power adapter plug (5V 1A) for charging the batteries.
With its advanced features and accessories, our Coating Thickness Gauge provides accurate and efficient measurements for a wide range of applications in various industries.
