Product Description
Overview

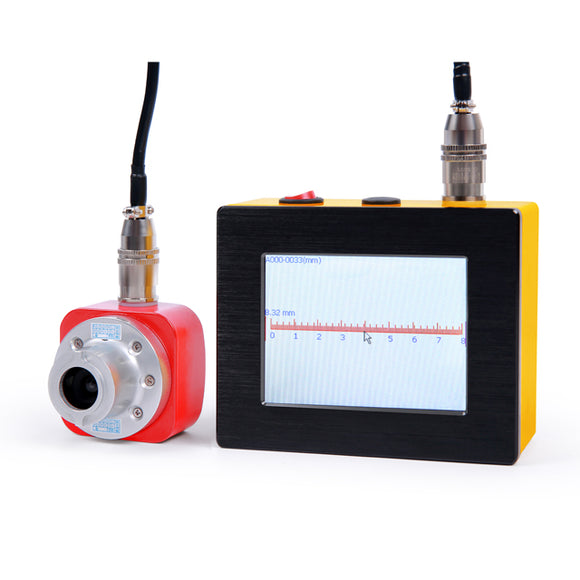

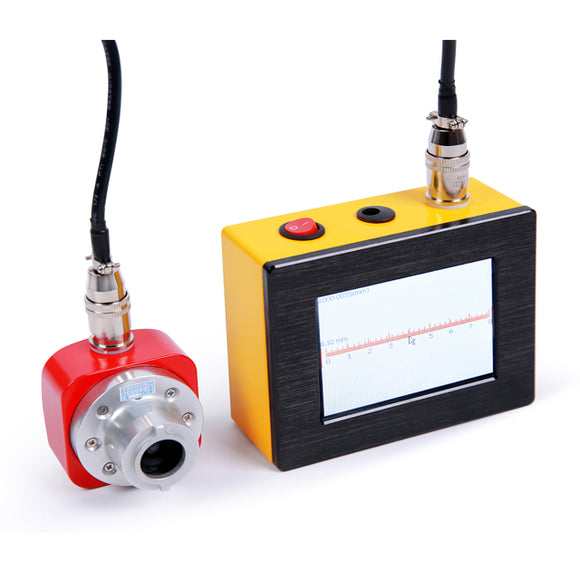

The CK-102 Crack Width Detector is a smart, portable device designed to quickly measure and record crack widths in concrete and other structural materials. Equipped with a close-focus camera and touch-screen interface, it allows real-time image capture, automatic crack width display, and easy data management on-site or in the lab.
Ideal for construction quality assurance, civil engineering, and infrastructure maintenance, the CK-102 is especially effective in hard-to-reach areas when paired with an extension arm.
Key Features
-
Automatically detects and displays crack width measurements
-
Real-time image capture with touch-screen interface
-
Save images and data directly to an SD card
-
Transfer data and images to a PC via USB
-
Images display width, scale, zoom level, and crack number
-
Multiple magnification options available (10x to 40x)
-
Compact and easy to carry with aluminum case
-
Long battery life: up to 18 hours of standby
Technical Specifications
| Specification | Details |
|---|---|
| Measurement Range | 0–6 mm |
| Accuracy | 0.01 mm |
| Magnification Options | 10x / 13x / 20x / 40x (optional) |
| Image Format | BMP, 24-bit color (320×240) |
| Memory | 3,000 images (SD card expandable) |
| Interface | USB |
| Power Supply | Lithium battery |
| Standby Time | 18 hours |
| Operating Temperature | -20°C to +60°C |

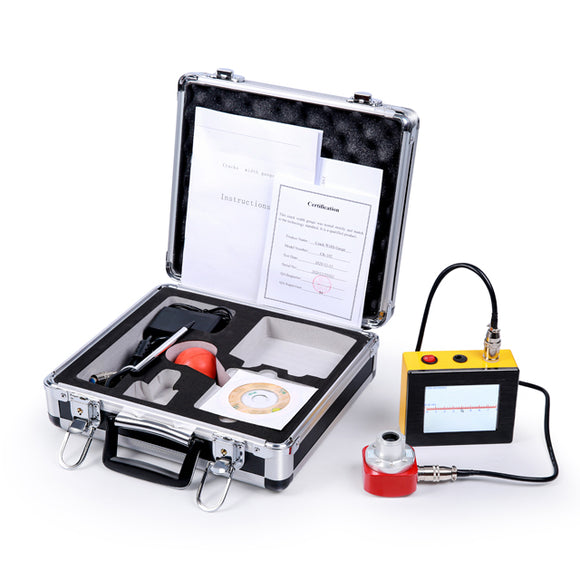

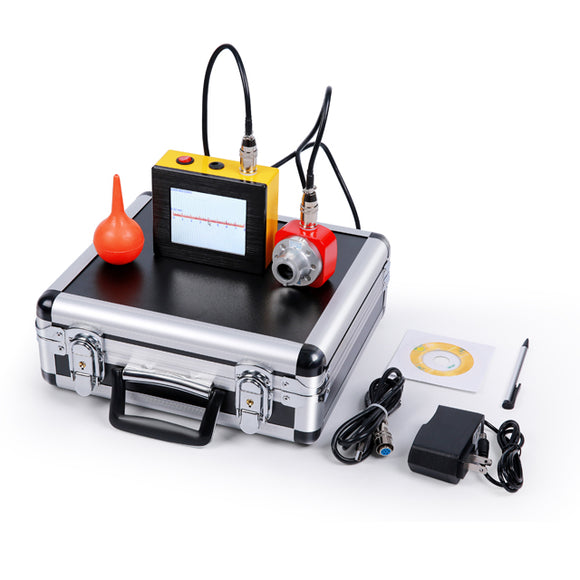

Standard Delivery Includes
-
Main Unit
-
Probe
-
Charger
-
Cable for Probe
-
Blowing Balloon
-
Aluminum Carrying Case
-
User Manual
