Product Description
Overview

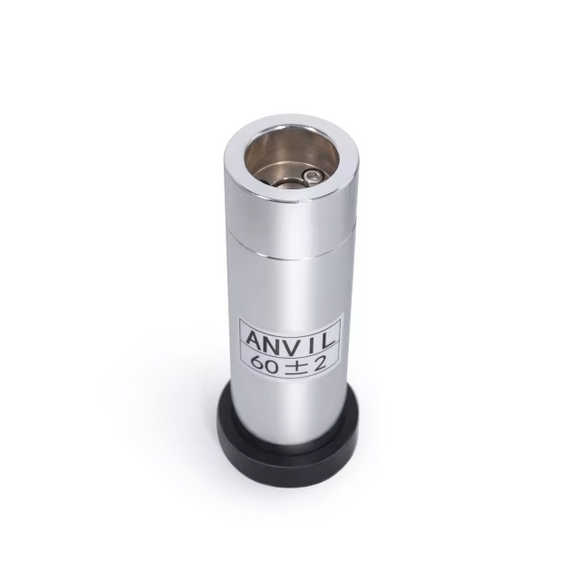

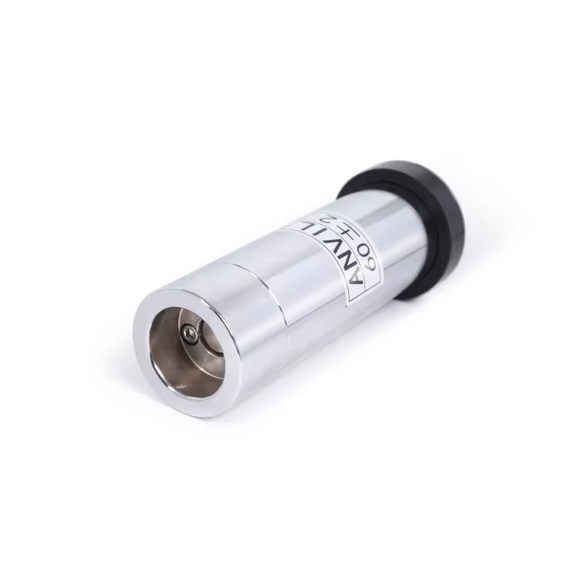

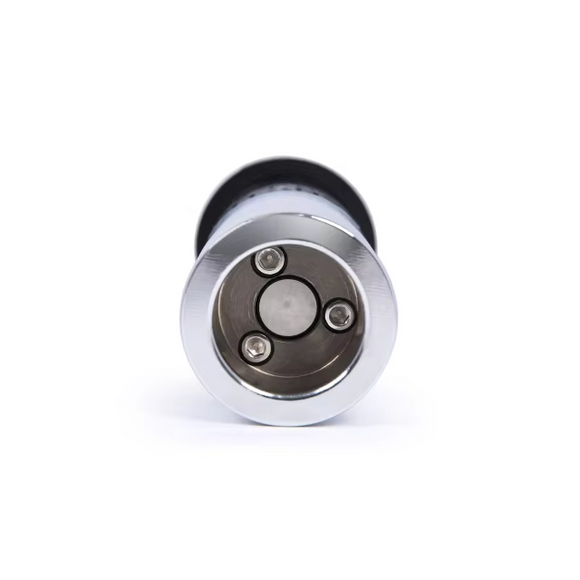

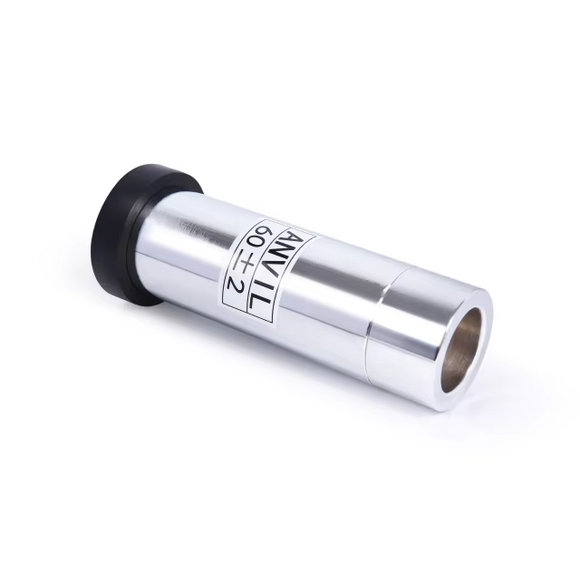

The TEM-60 Calibration Steel Anvil is a compact and durable reference tool designed for verifying and calibrating N-type concrete rebound hammers (2.207J). Lightweight and easy to use, it is ideal for regular on-site checks and laboratory calibration, ensuring the accuracy and consistency of rebound hammer readings.
Used prior to testing on actual concrete surfaces, the TEM-60 provides a stable reference standard, helping users validate hammer performance and make necessary adjustments before continuing with field testing.
Key Features
-
Designed specifically for N-type rebound hammers
-
Compact cylindrical design for easy handling and portability
-
Average calibration value: 60 ± 2 (R)
-
Core hardness maintained between HRC 58–62
-
Made from high-quality tool steel
-
Ideal for construction sites, quality control labs, and equipment inspection
Technical Specifications
| Specification | Value |
|---|---|
| Dimensions | Ø50 × 166 mm |
| Average Calibration Value | 60 ± 2 (R) |
| Anvil Core Hardness | HRC 58–62 |
| Total Weight | 2.4 kg |
| Standards Compliance | — |
Usage Notes
-
Always perform calibration using the steel anvil before concrete testing to ensure rebound hammer accuracy.
-
Record pre-test readings and compare with post-test results. Re-calibrate if values deviate.
-
Do not remove the built-in rubber buffer pads during use; keep the anvil clamped securely but not rigidly fixed.
-
Store in a dry, dust-proof environment and avoid impact damage to maintain surface integrity.
Standard Delivery Includes
-
TEM-60 Calibration Steel Anvil (fully assembled)
-
Protective packaging (optional carrying case available upon request)
