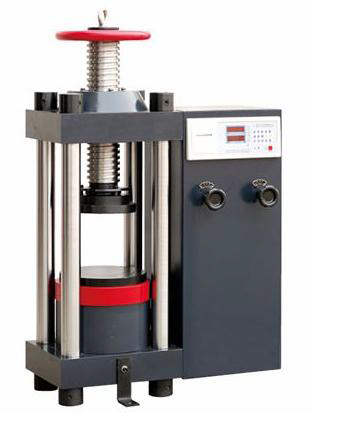

Concrete Compression Testing Machine (2000kN Manual)

1. Application and Functions

The digital display compression testing machine is mainly used for compressive strength test of concrete, cement, brick, stone and other building materials. This machine adopts chrome plated 4 column structure, uses hydraulic oil for loading, manual hand wheel to adjust the testing space, real time display loading rate kN/s, peak valve kN on the LED meter, the mini-printer prints test results. It adopts 46# anti-wear hydraulic oil.

2. Main technical parameters

1. Maximum load: 2000kN;
2. Measuring range of testing force: 4%-100%FS;
3. Accuracy of testing force: ±1%;
4. Upper pressure plate size:φ225mm;
5. Lower pressure plate size: φ300mm
6. Distance between upper plate and lower plate: 320mm;
7. Maximum piston stroke: 30 mm;
8. Working hydraulic pressure: 40MPa
9. Power supply: 380V±10%, 50Hz, 0.75kW
10. Overall dimension (L×W×H) (mm): 800×500×1200;
11. Weight: 750kg
