Overview
A complete compression force-gauge set comprising the EFG10S digital indicator and the selected M-type or R-type compression sensor. Both configurations measure push/compression force; select the sensor type and capacity required for the installation.
Applications
- Press-force measurement
- Compression fixtures
- Bearing and component load checks
- Production-force monitoring

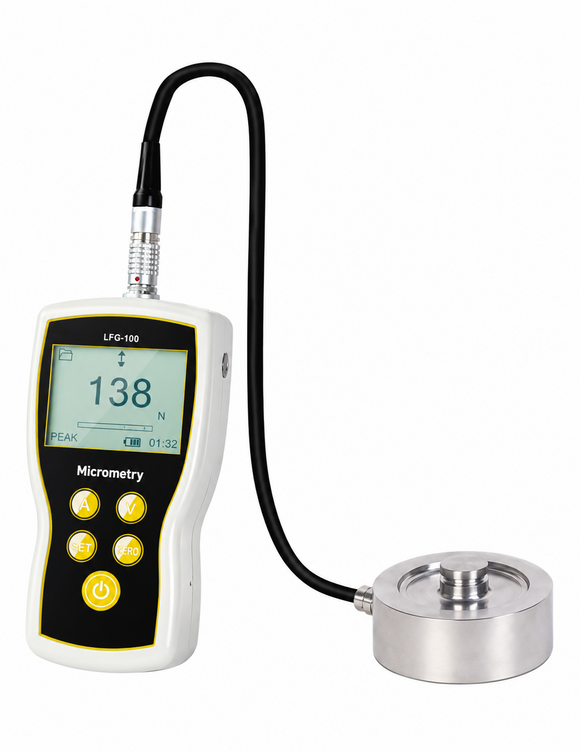

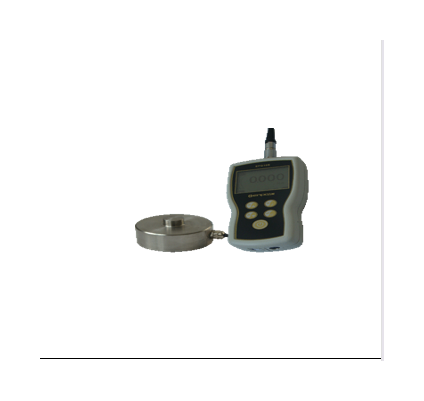

Sensor options
- M-type: 1, 5, 10, 50 and 100 kN
- R-type: 10, 20, 50, 100 and 200 kN
Where both sensor types are offered at the same capacity, confirm the required mounting arrangement and dimensions with ITS before ordering.

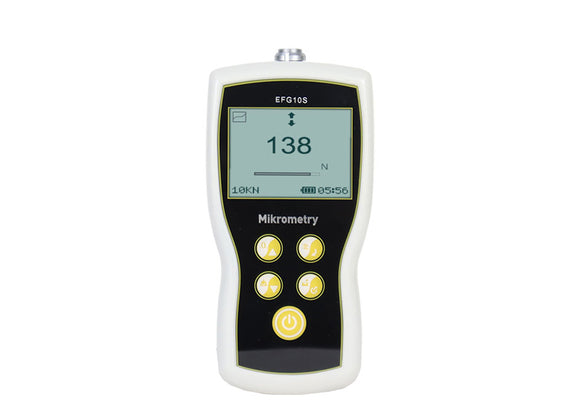

Indicator specifications
- Accuracy: ±0.2% of full scale
- Track, peak, auto-peak and first-peak modes
- Sampling rate: up to 2 kHz
- Memory: 1,000 readings
- USB and RS-232 communication
- Rechargeable battery
Included equipment
EFG10S indicator, selected external compression sensor, charger, data cable, operating manual and manufacturer certificate.
