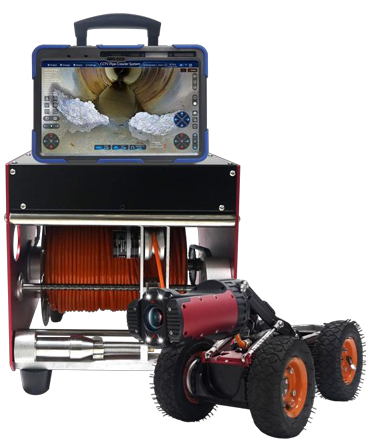

A compact four-wheel pipeline inspection crawler for pipes from DN150. An electric camera lift, front PTZ camera, rear camera, powered cable reel and touchscreen controller support live viewing, recording and reporting.
Features
- Four-wheel crawler with electric camera lift
- 90 mm wheel set for DN150 entry; 150 mm wheels for larger pipework
- 360° endless pan and 180° tilt front camera
- 10× optical zoom, autofocus and adjustable LED lighting
- Rear camera for reversing and manoeuvring
- 12-inch touchscreen with onboard recording and reporting
- Powered reel, meter counter and inclination display
Specifications
| Model | TMI-CR-104ZY |
|---|---|
| Nominal pipe range | DN150–DN2000 |
| Crawler configuration | Four-wheel platform |
| Camera lift | Electric |
| Wheel options | 90 mm / 150 mm |
| Travel speed | 8 m/min with 150 mm wheels |
| Protection | IP68 crawler |
| Camera movement | 360° endless rotation; 180° tilt |
| Optical zoom | 10× |
| Focus | Autofocus |
| Rear camera | Included |
| Controller | 12-inch Android touchscreen |
| Display resolution | 2560 × 1600 |
| Storage | 128 GB |
| Cable options | 100–300 m |
| Cable diameter | 9 mm |
| Reel | Powered electric reel |
| Power supply | 110 / 220 V |
| Optional functions | 512 Hz sonde and laser measurement |
Applications
- Municipal sewer, drainage and stormwater surveys
- Wastewater and industrial pipeline inspection
- Blockage investigation and recorded condition assessments
