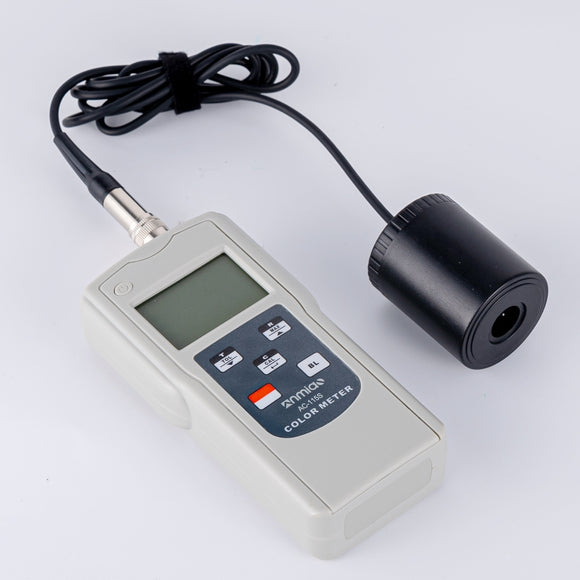

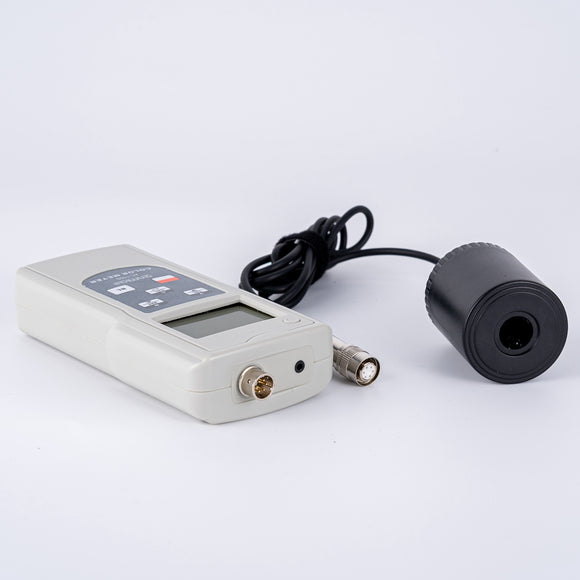

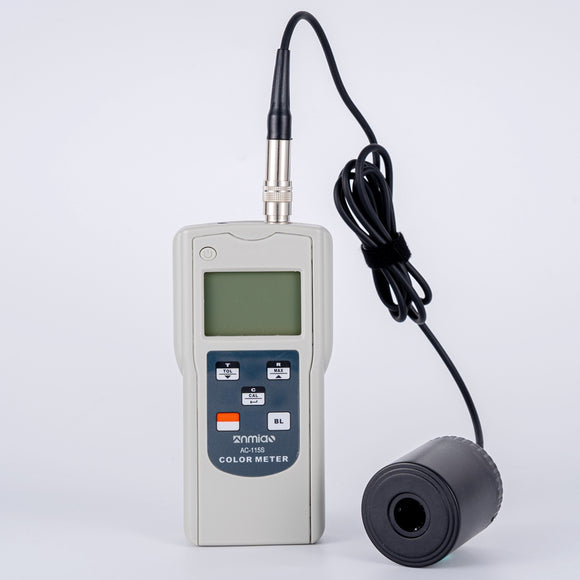

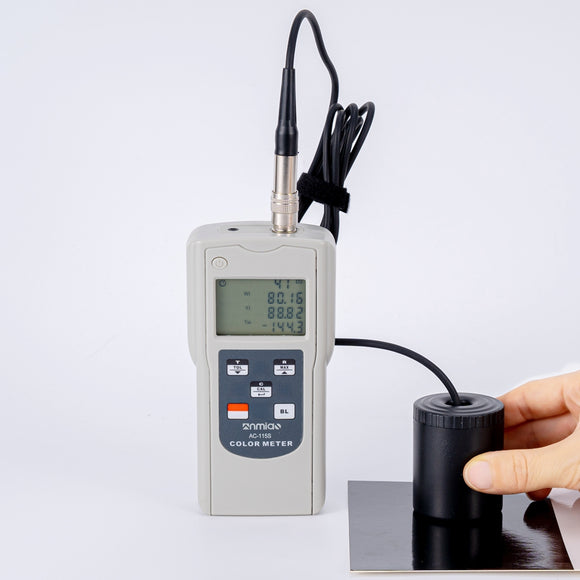

Introducing the Color Meter AC-115S: Your Compact Tristimulus Color Measurement Solution

Looking for a reliable and user-friendly color meter to measure color differences between two colors? Look no further than the Color Meter AC-115S. This exceptionally compact and easy-to-use tristimulus color meter is designed to accurately measure the color of non-illuminated and non-fluorescent samples, such as textiles, paper, leathers, painting materials, and more. It's a valuable tool for quality control and finds wide-ranging applications in various industries.

Key Features and Benefits:

Triple 4-digit LCD Display: The meter features a clear and easy-to-read display, allowing you to view color difference values in various color spaces.

Comprehensive Color Difference Measurements: Measure color differences with precision using ?(L*, a*, b*), ?(Eab, Cab, H*ab), ?(Y, x, y), ?(X, Y, Z), ?(Rs, Gs, Bs), or ?(WI, YI, Tw).

Statistical Function: Benefit from maximum, minimum, average, and standard deviation measurements, enabling thorough analysis and quality assessment.

Color Difference Tolerance Setting: Set color difference tolerance levels to achieve PASS/WARN/FAIL results, ensuring compliance with your specific requirements.

Color-Difference Target Colors: Store up to 9 color-difference target colors for easy reference and comparison during measurements.

User Calibration Function: Enhance accuracy by utilizing the user calibration function, allowing you to achieve precise and reliable measurements.

Memory and Read Function: Store and recall up to 99 sets of color difference data effortlessly for future analysis and comparison.

Digital Backlight Display: Enjoy convenient visibility even in low-light conditions, thanks to the digital backlight display feature.

Auto Power Off Function: Preserve battery life with the auto power off function, which automatically switches off the meter when not in use.

USB and RS-232 Data Output: Connect the meter to your PC for convenient data transfer and further analysis.

Included Accessories:

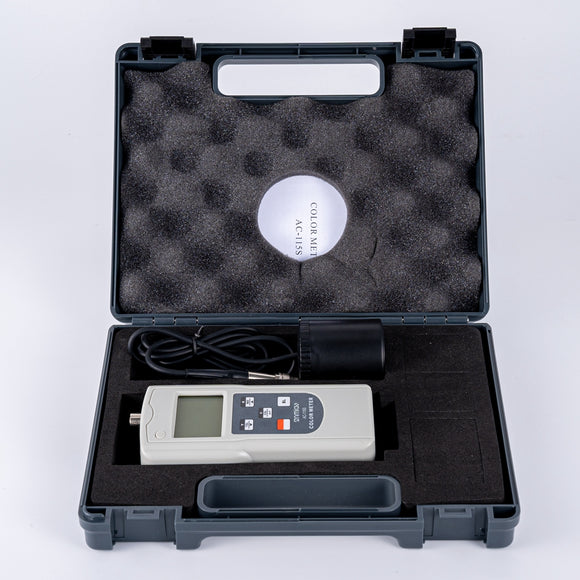

The Color Meter AC-115S comes with essential accessories to enhance your measurement experience, including the main unit, measuring head, white calibration card, carrying case, and an instruction manual.

Technical Specifications:

Dimensions: Main unit: 140x70x31mm; Sensor: ?44x55mm
Power Source: 4x1.5 AAA (UM-4) Battery (not included)
Operating Temperature: 040°C (32104°F)
Target Color Memory: 9 channels; set by measurement or keypad
Measurement Range: L*: 5 to 100
Measurement Conditions: Illuminant - CIE 2° Standard Observer; White LED lamp; Approx. ?10mm measuring area
Repeatability: Standard deviation within ?E*ab 0.5
Auto Power Off: Approx. 3 minutes
Data Memory Capacity: 99 sets (Direct reading from LCD display)
Low Battery Indication: Yes
Choose the Color Meter AC-115S for accurate and efficient color measurement. Its compact design, versatile features, and reliable performance make it an ideal choice for professionals in the inspection tool industry. Experience precise color analysis and streamline your quality control processes with the AC-115S color meter from Amittari Instruments.
