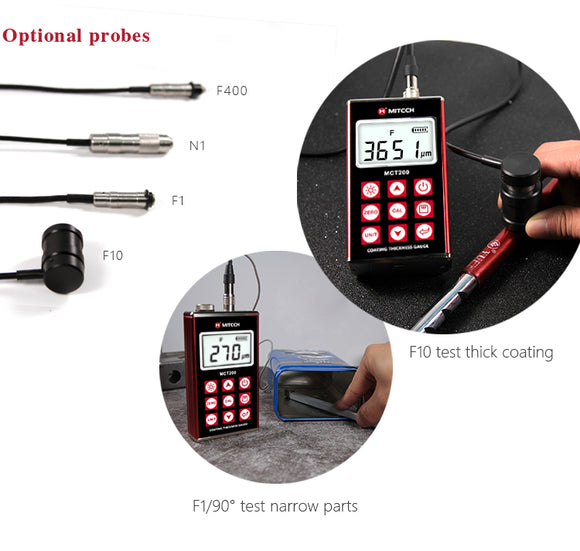

Mitech F1 Coating Thickness Probe for MCT200

Mitech F1 Test Range 0-1250μm Ferrous Probe for Non-Magnetic Coatings Thickness Gauge Test

PDF Data Sheet - Download Here

• Used with MCT 200 Coating Thickness Gauge
• F1 probe is made based on the magnetic induction principle and should be used for non-magnetic coatings such as aluminum, chrome, copper, zinc, paint and varnish, enamel, rubber, etc., on an iron or steel substrate.

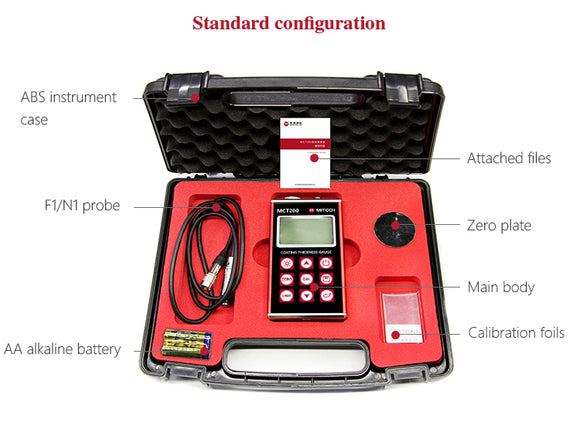

• F1 probe or N1 probe can be the standard configuration.
• Measuring range (um): 0-1250μm;
• Min curvature of the min area (mm): 1.5mm;
• Critical thickness of substrate (mm): 0.5mm;
• Diameter of the min area (mm): Φ7;
• Probe cable length: 90cm;
• It is plated with hard chrome, durable, not easy to wear;
• The error caused by the probe is small, and the measured value is accurate;
• F1 probe is made of metal which can effectively protect the probe, corrosion-resistant, and vibration-proof, durable;
• It is widely used to measure the thickness of non-magnetic coatings such as copper plating, rubber layer, and paint layer on the magnetic metal materials such as iron and steel.
• In the manufacturing and metal processing industry, chemical industry, commodity inspection, and other detection areas and material protection.
