Description

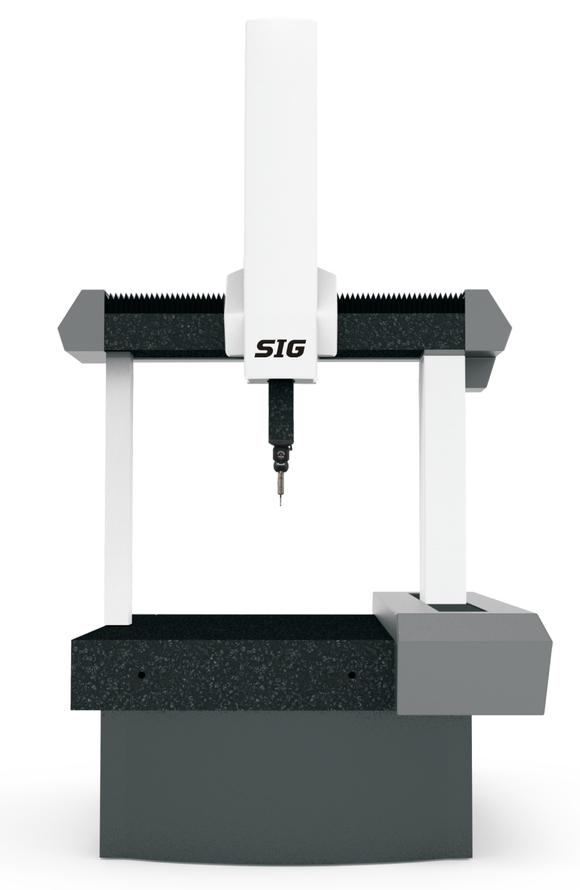

The T2-CMM 564 is a compact moving-bridge coordinate measuring machine for tactile dimensional and geometric inspection of precision-machined components. Its 500 × 600 × 400 mm measuring range accommodates small and medium workpieces in engineering workshops, manufacturing and quality-control departments.
CNC-controlled inspection supports repeatable programmed measurement routines once the component is loaded, aligned and set up. The probe-based measuring system is suited to checking dimensions, hole positions, angles and geometric features on components where physical contact measurement is required.
Features
- Compact moving-bridge construction for dedicated 3D coordinate measurement
- 500 × 600 × 400 mm measuring travel
- CNC operation for repeatable inspection routines
- Tactile probing for dimensional and geometric inspection
- Lightweight bridge design for responsive movement
- 800 kg table load capacity
- FaToInspect software platform with CAD integration and inspection reporting
- English-language interface and reporting support
Available Model
| Model | Measuring Range (X × Y × Z) |
|---|---|
| T2-CMM 564 | 500 × 600 × 400 mm |
Applications
- Precision CNC-machined component inspection
- First article and production inspection
- Hole diameter and position measurement
- Angles, perpendicularity and geometric tolerance inspection
- Toolmaking, mould and die inspection
- Automotive, aerospace and general engineering quality control
What Can It Measure?
Dimensions, distances, diameters, hole positions, angles and accessible 3D geometric features. Probe and stylus selection should suit the component geometry and features being inspected.
Specifications
| Specification | T2-CMM 564 |
|---|---|
| Machine type | Moving-bridge tactile coordinate measuring machine |
| X travel | 500 mm |
| Y travel | 600 mm |
| Z travel | 400 mm |
| Overall dimensions (L × W × H) | 1,550 × 1,210 × 2,165 mm |
| Machine weight | 730 kg |
| Table load capacity | 800 kg |
| Series accuracy | From 1.8 µm; dependent on configuration and measurement conditions |
| Measurement method | Contact probing |
| Software platform | FaToInspect |
Probe and Software Configuration
The T-CMM range supports different probe-head configurations. Contact us to match the probe, styli and software functions to your inspection requirements. Specialised gear, scanning, blade and surface-analysis modules are application-dependent options.
Why Choose the T2-CMM 564?
The T2-CMM 564 provides a dedicated tactile inspection platform with capacity for small and medium precision components. It combines programmable measurement routines with 3D geometric inspection and reporting in a compact floor-standing format.
