The AWA5636 Class 2 Professional Noise Measurement Kit provides a complete, ready-to-use solution for workplace, machinery, industrial and environmental noise measurement.

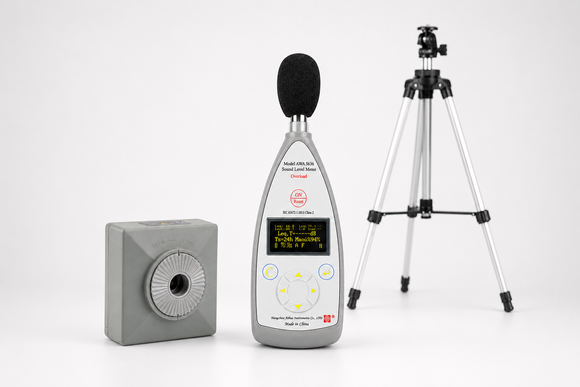

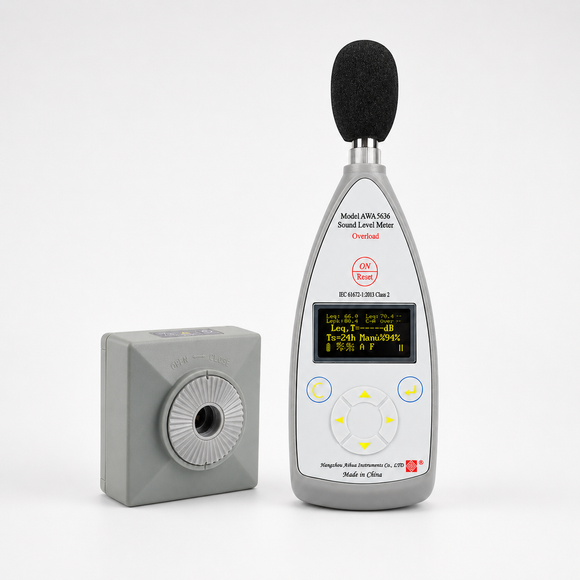

Built around the AWA5636-2 Integrating Sound Level Meter, the kit adds an AWA6022A Class 2 Sound Calibrator and AWA8814 professional tripod, giving users the essential equipment required to measure, verify and document noise levels accurately in the field.
The AWA5636-2 provides integrating measurements including Leq, Lmax, Lmin and SEL, making this kit a significant step up from a basic sound level meter while remaining an affordable professional solution.
Complete Class 2 Measurement Kit
| Included Equipment | Purpose |
|---|---|
| AWA5636-2 Integrating Sound Level Meter | Professional Class 2 noise measurement including Leq |
| AWA6022A Class 2 Sound Calibrator | Field calibration and verification at 94 / 114 dB |
| AWA8814 Professional Tripod | Stable hands-free measurement and correct instrument positioning |
| Windscreen | Reduces wind influence during outdoor measurements |
| Carrying Case | Protects the sound level meter during transport and storage |
| Batteries | Ready for field operation |
| Instruction Manual | Instrument setup and operating instructions |
Why Choose the Professional Kit?
A sound level meter alone can measure noise, but professional surveys often require more than simply taking a reading.
This kit adds the two accessories most commonly required for professional field measurements:
Acoustic calibrator – allows the sound level meter to be checked immediately before and after a measurement.
Tripod – allows the instrument to be positioned consistently without reflections or interference caused by the operator holding the meter.
Together with the integrating AWA5636-2, this creates a practical measurement system suitable for routine professional noise surveys.

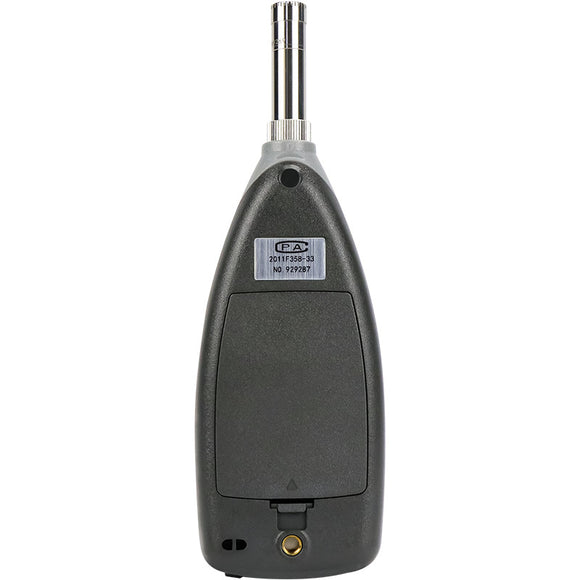

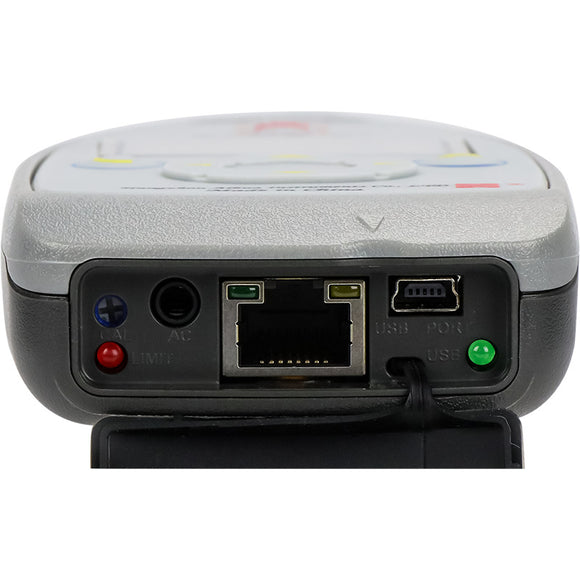

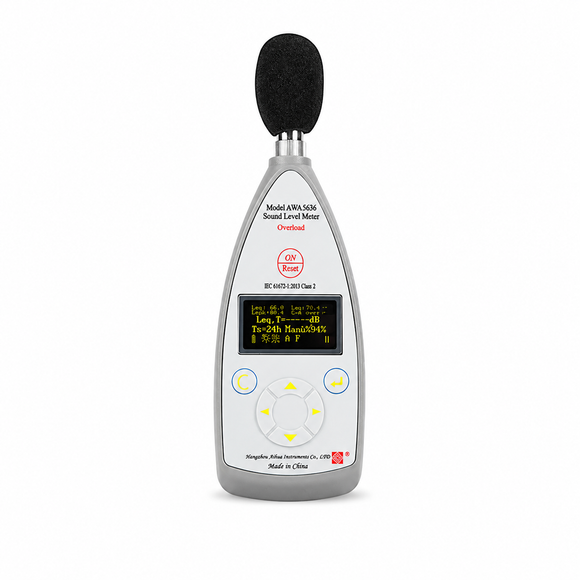

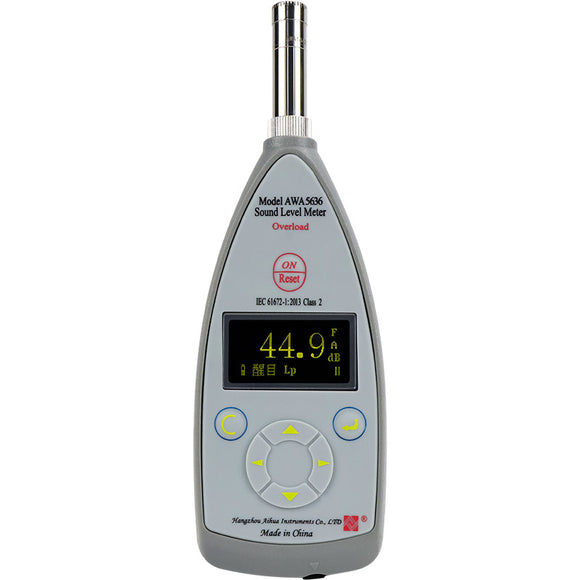

AWA5636-2 Integrating Sound Level Meter
The AWA5636-2 is the recommended version of the AWA5636 for most professional users.
Unlike the basic AWA5636-1, it provides integrating measurement, allowing average noise exposure over a defined period to be assessed.
Main Measurements
- Lp sound pressure level
- Leq equivalent continuous sound level
- Lmax
- Lmin
- SEL
- Sound exposure E
- Leq,T
Key Specifications
| Specification | Details |
|---|---|
| Accuracy | IEC 61672 Class 2 |
| Measurement Range | 30–130 dB(A) |
| Frequency Range | 20 Hz–12.5 kHz |
| Frequency Weighting | A, C, Z |
| Time Weighting | Fast / Slow |
| Microphone | 1/2" pre-polarised condenser |
| Display | 128 × 64 OLED |

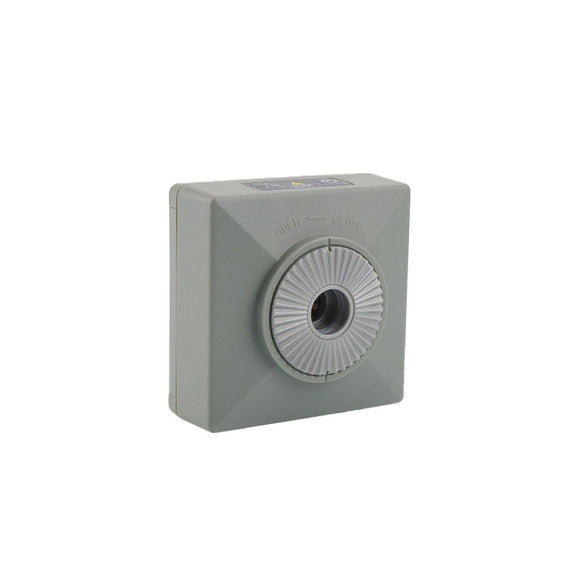

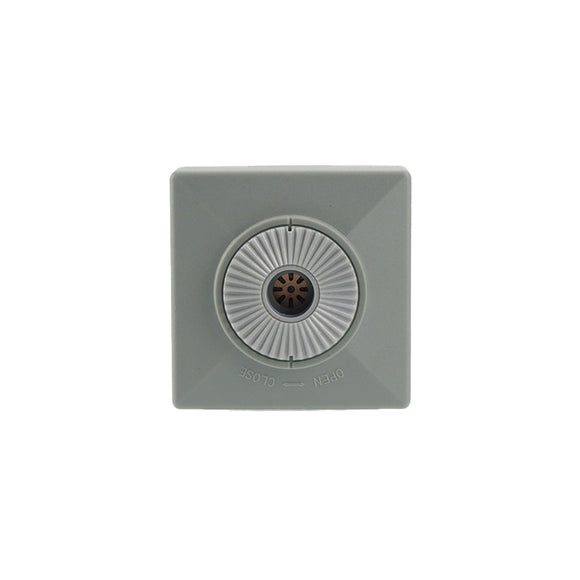

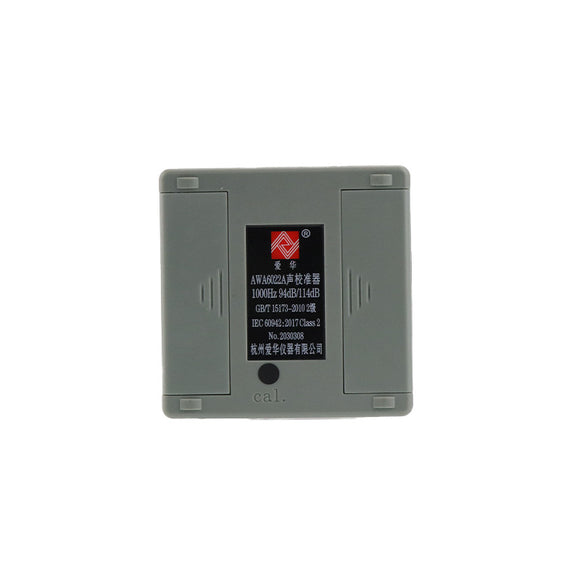

AWA6022A Class 2 Sound Calibrator
The included AWA6022A allows the sound level meter to be checked in the field before and after measurements.
It provides two selectable acoustic calibration levels:
- 94 dB @ 1 kHz
- 114 dB @ 1 kHz
The calibrator complies with IEC 60942 Class 2 and is specifically suited to Class 2 noise measurement systems.
AWA8814 Professional Tripod
The included tripod provides a stable mounting platform for longer-duration or unattended measurements.
Using a tripod helps:
- Maintain a consistent measurement position
- Reduce movement during measurements
- Keep the meter away from the operator
- Reduce reflections caused by holding the instrument
- Improve repeatability between measurements
- Support longer environmental and workplace surveys
Typical Applications
This kit is ideal for:
- Workplace noise surveys
- Machinery and equipment noise
- Factory noise measurements
- Industrial hygiene
- Environmental noise surveys
- Construction noise
- Traffic noise
- Health and safety inspections
- General occupational noise investigation
- Noise complaints
- Routine professional acoustic measurement
Who Is This Kit For?
Choose this kit if you need a complete professional Class 2 noise measurement system rather than just a handheld meter.
It is particularly suitable for:
- Health & safety professionals
- Occupational hygiene teams
- Manufacturing companies
- Maintenance engineers
- Environmental officers
- Consultants
- Construction companies
- Educational institutions
Class 2 or Class 1?
| Kit | Accuracy | Best For |
|---|---|---|
| AWA5636 Professional Kit | Class 2 | Routine workplace, machinery and environmental noise measurement |
| AWA5662 Professional Kit | Class 1 | Professional consulting, environmental and higher-accuracy noise surveys |
| AWA6228+ Advanced Kit | Class 1 | Advanced noise analysis, frequency investigation and engineering applications |
For many workplace and general industrial noise measurements, Class 2 provides an excellent balance between professional capability and cost.
Where a standard, specification or client requires Class 1 accuracy, choose one of our Class 1 kits instead.
Help Me Choose
Professional Noise Measurement Kits
| Kit | Accuracy | Main Measurement Capability | Best For / Why Choose It |
|---|---|---|---|
| AWA5636 Professional Kit | Class 2 | Integrating / Leq + calibrator + tripod | Workplace, machinery and general noise surveys. Most affordable complete professional kit. |
| AWA5662 Professional Kit | Class 1 | Integrating + Statistical + calibrator + tripod | Professional environmental and consulting work. Best-value complete Class 1 kit. |
| AWA6228+ Advanced Kit | Class 1 | Statistical + Logging + Octave Analysis + calibrator + tripod + extension cable | Engineering and advanced environmental noise analysis. Complete advanced analysis system. |
