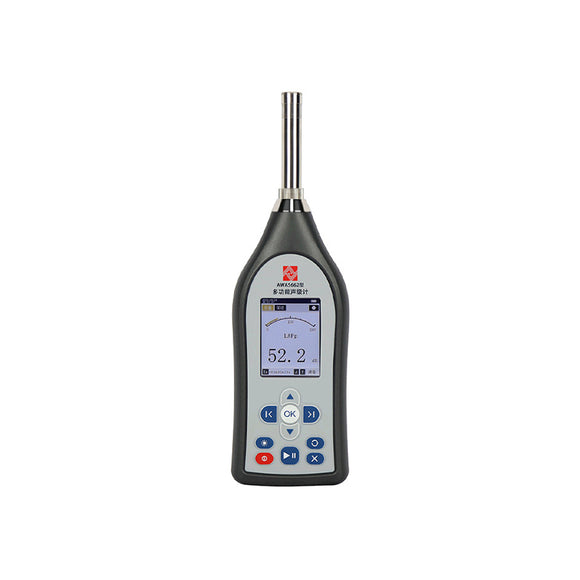

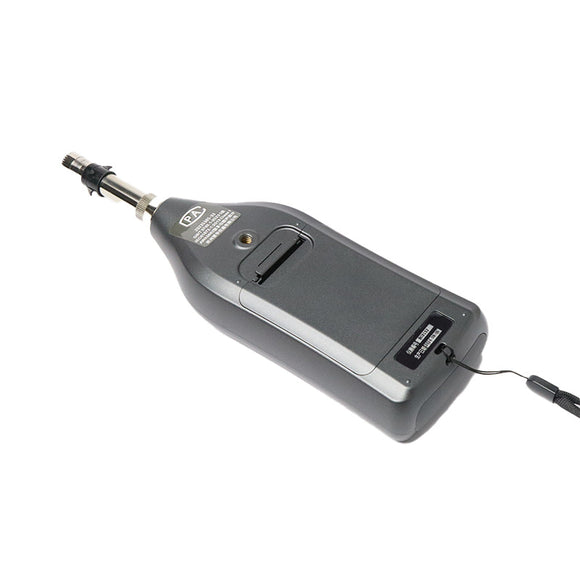

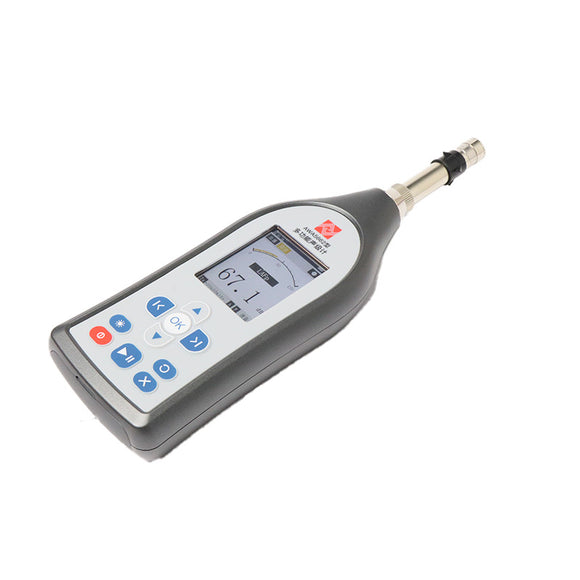

AWA5662 Class 1 Multifunction Sound Level Meter
The AWA5662 is a professional Class 1 sound level meter designed for environmental, workplace, industrial and machinery noise measurement.
It provides a cost-effective step up from Class 2 instruments for users who require Class 1 accuracy, without necessarily needing the broader modular capabilities of a higher-end acoustic analyser.
Choose from integrating, statistical or octave-analysis configurations, with additional specialist options available for occupational noise exposure and unusually low or high sound pressure levels.
Key Features
- IEC 61672-1:2013 Class 1 sound level meter
- Standard measurement range: 25–140 dB(A)
- Frequency range: 10 Hz–20 kHz
- 115 dB linear measurement range without manual range switching
- A, C and Z frequency weighting
- F, S, I and I10 time weighting
- Integrating sound level measurement
- Statistical noise analysis available
- TWA / noise dose measurement available
- Real-time 1/1 and 1/3 octave analysis available
- Data logging and measurement storage
- WAV / MP3 audio recording on applicable configurations
- Up to 4 GB internal storage with optional 64 GB TF card
- 2.4" colour display
- USB and signal outputs
- Specialist low and high sound pressure configurations available
Choose Your AWA5662 Configuration
| Configuration | Best For | Main Capability |
|---|---|---|
| Option 1 – Integrating | General professional Class 1 noise measurement | Leq / integrating measurement, logging, recording and measurement storage |
| Option 3 – Statistical | Environmental, community and industrial noise surveys | Integrating measurement + statistical Ln analysis |
| Option 7 – RTA + Statistical | Advanced noise investigation and frequency analysis | Statistical analysis + real-time 1/1 & 1/3 octave analysis |
Integrating
The best starting point for users who require Class 1 accuracy for general professional noise measurement.
Suitable for:
- Machinery and equipment noise
- Workplace measurements
- Factory and industrial noise
- Environmental surveys
- Boundary noise measurement
Integrating measurement allows average sound levels such as Leq to be assessed over a measurement period rather than relying only on instantaneous readings.
Statistical
Designed for environmental and community noise applications where the distribution of sound levels over time is important.
In addition to integrating measurement, this configuration provides statistical Ln analysis, making it particularly suitable for:
- Environmental noise surveys
- Community noise
- Traffic noise
- Industrial boundary measurements
- Long-duration noise assessment
RTA + Statistical
The most capable of our recommended AWA5662 configurations.
It combines statistical measurement with real-time 1/1 octave and 1/3 octave frequency analysis, allowing the user to identify which frequency bands are contributing to the measured noise.
Ideal for:
- Noise-source identification
- Machinery noise investigation
- Engineering noise control
- Environmental acoustic investigations
- Frequency analysis and troubleshooting
Other Configurations Available
The AWA5662 platform can also be supplied for more specialised applications.
| All Options | Best For |
|---|---|
| Option 1 – Integrating | General professional Class 1 noise measurement |
| Option 2 – Statistical | Environmental and community noise assessment |
| Option 3 – TWA / Dose | Occupational noise exposure |
| Option 4 – RTA / Octave Analysis | 1/1 & 1/3 octave frequency analysis |
| Option 5 – RTA + Statistical | Advanced environmental + frequency analysis |
| Option 6 – Low SPL 16–131 dBA | Quiet environments and low-level acoustics |
| Option 7 – High SPL 48–163 dBA | High-noise industrial applications |
| Option 8 – Ultra-High SPL 62–174 dBA | Extreme sound pressure applications |
Optional Accessories & Add-ons
| Accessory / Option | Purpose |
| Class 1 Sound Level Calibrator | Field verification and calibration |
| Tripod | Stable hands-free and longer-duration measurements |
| Microphone Extension Cable | Remote positioning of the microphone |
| Mini Printer | Immediate printing of field measurement results |
| 64 GB TF Card | Expanded measurement storage |
| PC Data Management Software | Transfer, review and manage measurement data |
| Low-Level Microphone | Extends measurement down to 16 dB(A) |
| High-Level Microphone | Extends measurement up to 163 dB(A) |
| Ultra-High-Level Microphone | Extends measurement up to 174 dB(A) |
| Replacement Windscreen | Reduces wind interference during outdoor measurements |
Technical Specifications
| Specification | Details |
| Accuracy Class | IEC 61672-1:2013 Class 1 |
| Standard Measurement Range | 25–140 dB(A) |
| Frequency Range | 10 Hz–20 kHz |
| Standard Microphone | AWA14425 |
| Frequency Weighting | A, C, Z |
| Time Weighting | F, S, I, I10 |
| Linear Measurement Range | 115 dB |
| Display | 2.4" colour display, 240 × 320 |
| Frequency Analysis | Optional 1/1 and 1/3 octave |
| Internal Storage | 4 GB on applicable configurations |
| Expandable Storage | Optional 64 GB TF card |
| Recording | WAV / MP3 on applicable configurations |
| Outputs / Interfaces | AC, DC, USB, I/O expansion |
| Power Supply | 4 × LR6 alkaline batteries or external 5 V supply |
| Dimensions | 250 × 76 × 33 mm |
| Weight | Approx. 340 g |
| Operating Temperature | -20°C to +60°C |
Typical Applications
- Environmental noise measurement
- Workplace noise surveys
- Occupational noise assessment
- Machinery and equipment noise
- Factory and industrial noise
- Industrial hygiene
- Community noise
- Traffic noise
- Boundary noise surveys
- Noise-source identification
- Frequency analysis
- Engineering noise control
- High sound pressure measurement
- Low-level acoustic measurement
