Product Description
Overview

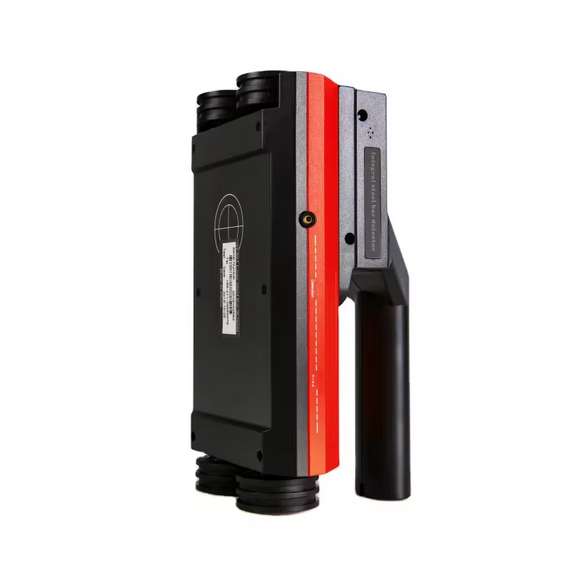

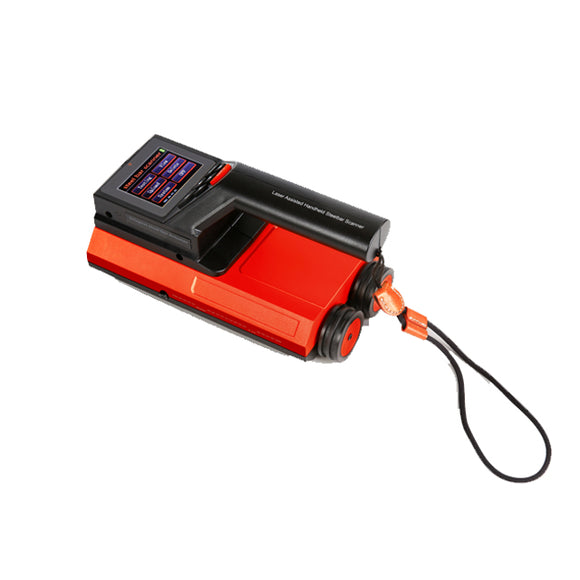

The JY-8ST Laser Integrated Rebar Detector is a handheld, non-destructive testing device used for accurately locating and analyzing the internal steel reinforcement within concrete structures. Equipped with a laser positioning system and a high-resolution display, this device makes it easy to detect the thickness, position, direction, distribution, and estimated diameter of internal steel bars.
Its intuitive interface and portability make the JY-8ST ideal for field inspections, construction quality control, and structural diagnostics.
Key Features
-
Accurately detects position and depth of rebar in concrete
-
Laser positioning for easy and precise alignment
-
Estimates steel bar diameter and distribution
-
Real-time display with clear interface
-
Non-destructive testing – ideal for slabs, columns, and beams
-
Durable design with protective carrying case
Measuring Range by Rebar Diameter
| Rebar Diameter | Small Range (mm) | Max Range (mm) |
|---|---|---|
| Φ6–Φ10 | 1–70 | 1–100 |
| Φ12–Φ18 | 1–80 | 1–120 |
| Φ20–Φ28 | 1–80 | 1–136 |
| Φ32–Φ50 | 2–86 | 5–185 |
Error Range (Rebar Cover Depth)
| Error Margin | Applicable Range (mm) |
|---|---|
| ±1 | 1–59 |
| ±2 | 60–89 (small range) |
| ±4 | 90–185 (max range) |

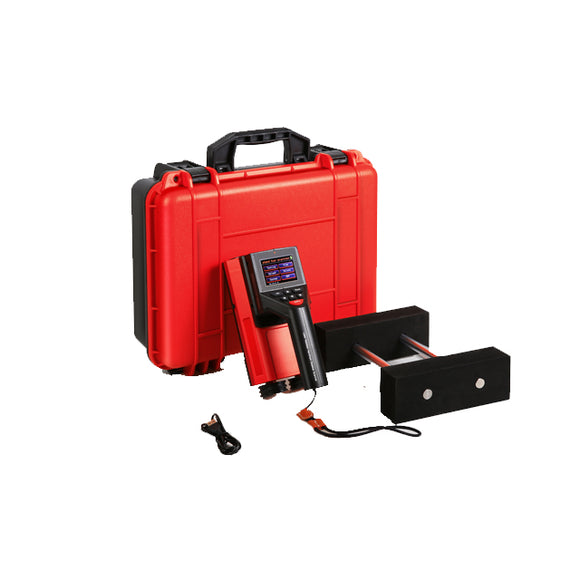

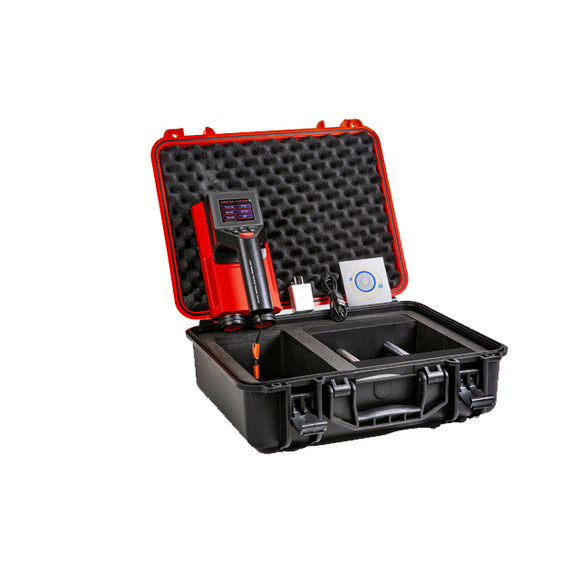

Standard Delivery Includes
-
JY-8ST Main Unit
-

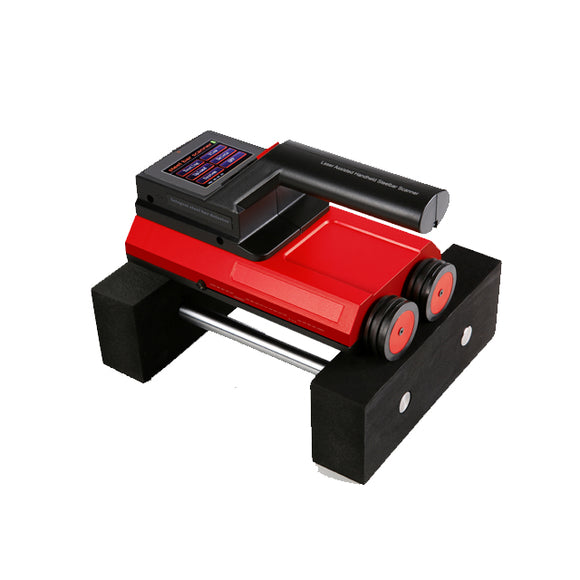

Calibration Block
-
CD Software
-
USB Cable
-
Power Adapter
-
Carrying Case
-
User Manual
