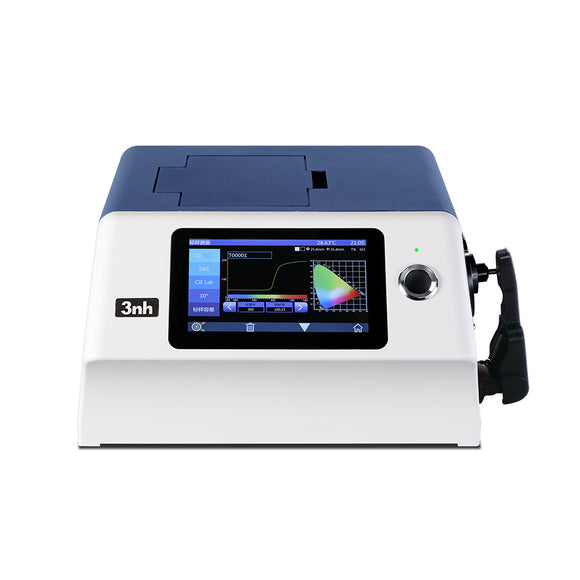

3nh YS6060 Benchtop Grating Spectrophotometer

The 3nh YS6060 Benchtop Grating Spectrophotometer is a high-precision laboratory instrument for advanced colour measurement, colour matching and quality control. It supports both reflectance and transmittance measurement, making it suitable for solids, liquids, powders, pastes, plastics, textiles, coatings and transparent or translucent materials.

Featuring a large Φ154 mm integrating sphere, 360–780 nm spectral range, SCI/SCE measurement and selectable UV measurement, the YS6060 provides excellent repeatability and inter-instrument agreement for demanding laboratory and production applications.

Four interchangeable measuring apertures allow samples of different sizes to be tested, while the built-in camera assists with accurate sample positioning.

Key Features

• Reflectance and transmittance measurement

• d/8° reflectance and d/0° transmittance geometry

• SCI and SCE measurement modes

• UV included/excluded measurement

• 360–780 nm wavelength range

• Large Φ154 mm integrating sphere

• Concave grating spectroscopic system

• 256-element double-array CMOS sensor

• Four reflective measuring apertures: 25.4, 15, 8 and 4 mm

• Automatic aperture identification

• Built-in camera positioning

• Excellent repeatability down to ΔEab ≤0.01

• Inter-instrument agreement ≤ΔEab 0.12

• 7-inch capacitive touchscreen

• USB and Bluetooth connectivity

• PC colour management software

• Storage for 5,000 standards and 40,000 samples

• Multiple colour spaces, illuminants and colour difference formulas

Applications

Suitable for colour measurement and quality control in:

• Paints and coatings

• Plastics

• Automotive components

• Textiles and garments

• Printing and dyeing

• Leather

• Food products

• Powders and granules

• Liquids

• Transparent and translucent materials

• Laboratory colour analysis and R&D

Technical Specifications

*Under the manufacturer's specified measurement conditions.

Standard Accessories

Supplied with white and black calibration boards, checking green board, sample holder, 4 mm, 8 mm, 15 mm and 25.4 mm apertures, power adapter, USB cable, user guide, PC software, culture dish and micro-aperture transmission test fixture assembly.

Optional Accessories

• Micro printer

• Inverted instrument test fixture

• Petri dish
