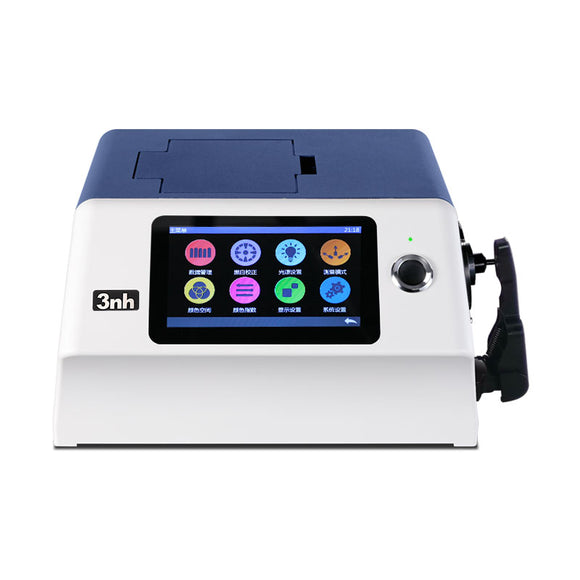

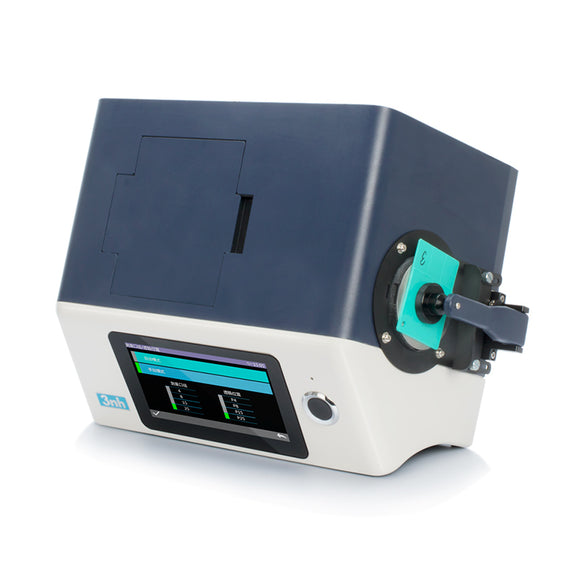

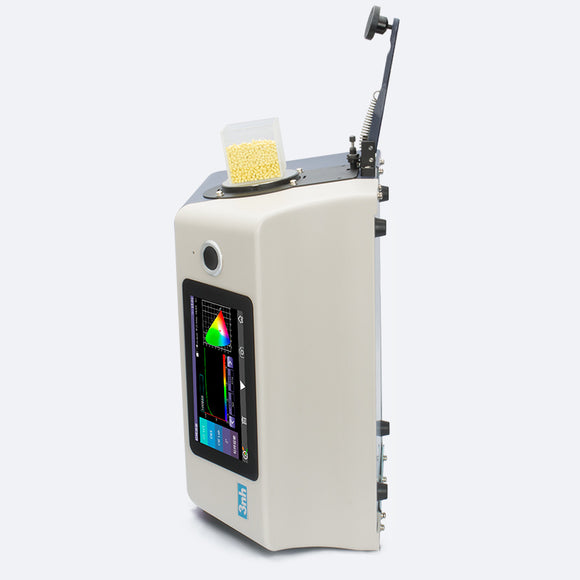

3nh YS6010 Benchtop Grating Spectrophotometer

The 3nh YS6010 Benchtop Grating Spectrophotometer is a professional laboratory colour measurement instrument designed for accurate reflectance and transmittance measurement across a wide range of solid, liquid, powder, paste and transparent samples.

Featuring a large Φ154 mm integrating sphere, 360–780 nm spectral range and a high-performance concave grating optical system, the YS6010 provides reliable colour measurement for quality control, colour matching, research and laboratory applications.

The instrument supports SCI/SCE measurement and UV included/excluded modes, while interchangeable 25.4 mm, 8 mm and 4 mm measuring apertures provide flexibility for different sample sizes.

Key Features

• Reflectance and transmittance colour measurement

• d/8° reflectance and d/0° transmittance geometry

• SCI and SCE measurement

• UV included/excluded measurement

• Large Φ154 mm integrating sphere

• 360–780 nm wavelength range

• 5 nm spectral bandwidth

• Concave grating optical system

• 256-element double-array CMOS sensor

• 25.4 mm, 8 mm and 4 mm reflective measuring apertures

• Automatic aperture identification

• Built-in camera for accurate sample positioning

• Built-in temperature monitoring and compensation

• 7-inch capacitive touchscreen

• USB connectivity

• PC colour management software

• Storage for 2,000 standards and 20,000 samples

• Multiple colour spaces, illuminants and colour difference formulas

Applications

Suitable for colour measurement and quality control in:

• Paints and coatings

• Plastics

• Automotive components

• Leather

• Textiles and garments

• Printing and dyeing

• Food products

• Powders and granules

• Liquids and pastes

• Transparent and translucent materials

• Laboratory colour analysis

• Research and development

Technical Specifications

*Under the manufacturer's specified measurement conditions.

Colour Measurement

The YS6010 supports commonly used colour spaces including CIE LAB, XYZ, Yxy, LCh, CIE LUV, Munsell, s-RGB, HunterLab, βxy and DIN Lab99.

Supported colour difference formulas include ΔEab, ΔEuv, ΔE94, ΔEcmc, ΔE00, DIN ΔE99 and ΔE Hunter.

Additional colourimetric indices include whiteness, yellowness, metamerism, staining fastness, colour fastness, colour strength, opacity, 8° glossiness, Gardner Index, APHA/Hazen/Pt-Co Index and Haze (ASTM D1003).

Standard Accessories

• Power adapter

• Instruction manual

• Quality management software

• Data cable

• Standard calibration plate

• Black calibration box

• Transmission black baffle

• Sample holder

• 25.4 mm aperture

• 8 mm aperture

• 4 mm aperture

• Transmission test fixture assembly

Optional Accessories

• Micro printer

• Inverted instrument test fixture

• Petri dish

Downloads

Data Sheet Link
