Advanced Ultrasonic Thickness Gauge with A/B-Scan TPM5 (Real-Time Analysis)

R 73,310.00

Tax includedShipping calculated at checkout

Tomlin Instruments

Shipping
Ships in 5-10 business days

Warranty
1 year standard warranty

Description Shipping

Description

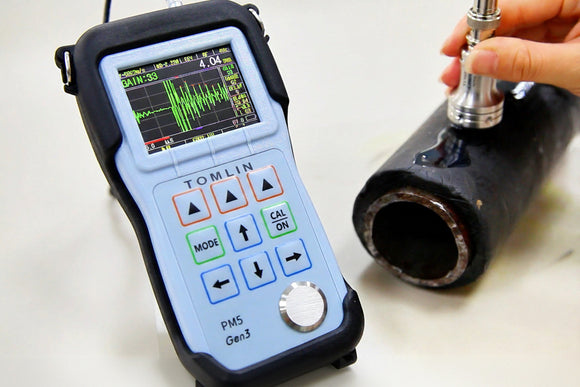

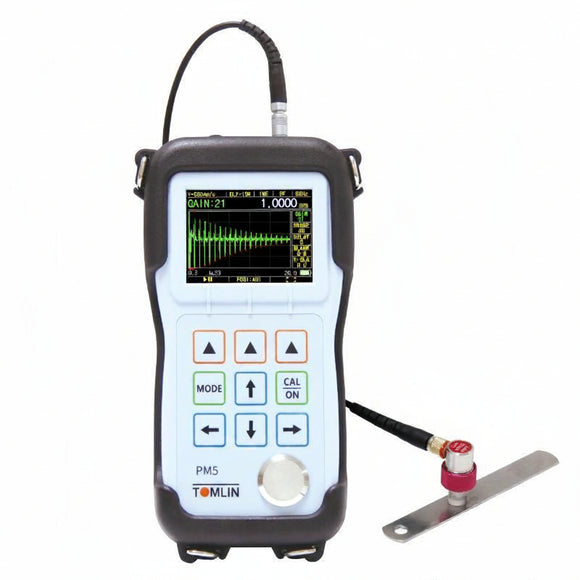

The TOMLIN INSTRUMENTS TPM5 Gen3 Precision Ultrasonic Thickness Gauge is a high-performance handheld inspection instrument designed for advanced non-destructive thickness measurement applications across industrial environments.

Using precision ultrasonic pulse-echo measurement technology, the PM5 Gen3 provides accurate thickness measurement for metallic and non-metallic materials, including coated surfaces, pipes, tanks, pressure vessels, plates, and precision-engineered components. The instrument supports a wide range of probe configurations and advanced measurement modes for demanding inspection tasks.

Designed for portability and reliability, the PM5 Gen3 features a rugged IP67-rated housing, high-resolution colour display, onboard data logging, waveform display modes, and advanced signal processing capabilities. The instrument supports multiple measurement functions including pulse-echo, echo-echo, coating through-coating measurement, corrosion inspection, and high-speed scanning applications.

The PM5 Gen3 also supports advanced application modules including oxide layer measurement, multilayer analysis, directional capture, Bluetooth communication, and optional four-channel multiplexing capability for specialised industrial inspection environments.

Features

  • High-precision ultrasonic thickness measurement
  • Pulse-Echo and Echo-Echo measurement modes
  • Suitable for coated and uncoated materials
  • High-speed scan mode for rapid inspection
  • Full waveform A-scan and B-scan display
  • Large high-resolution colour LCD display
  • Advanced gain and signal processing control
  • Built-in data logger with large internal storage
  • USB and RS232 communication support
  • Optional Bluetooth communication
  • Rugged IP67-rated industrial housing
  • Compatible with multiple probe types and frequencies
  • Supports corrosion inspection and precision thickness analysis
  • Long battery operating life for field inspection work

Specifications

Specification PM5 Gen3
Measurement Principle Ultrasonic Pulse-Echo
Measurement Modes Pulse-Echo, Echo-Echo, Interface-Echo
Display High-Resolution Colour LCD
Resolution Up to 0.001mm
Velocity Range 1000 – 15000 m/s
Measurement Range Probe dependent
Data Storage Built-in Data Logger
Communication USB, RS232, Optional Bluetooth
Protection Rating IP67
Operating Temperature -10°C to +50°C
Power Supply AA Batteries
Waveform Display A-Scan / B-Scan
Scan Mode High-Speed Scan
Housing Rugged Industrial Design

Probe & Measurement Support

  • Delay Line Probes
  • Contact Probes
  • Water Immersion Probes
  • Protective Membrane Probes
  • Pen Type Probes
  • High Frequency Probes
  • Corrosion Measurement Probes
  • Multi-layer Measurement Support

Industries Used In

  • Oil and gas inspection
  • Pressure vessel inspection
  • Pipeline maintenance
  • Power generation facilities
  • Aerospace inspection
  • Manufacturing quality control
  • Metal fabrication
  • Mining and heavy industry
  • Marine inspection
  • Chemical processing plants

Downloads

Datasheet
