The AWA6228+ Advanced Class 1 Noise Analysis Kit is a complete professional system for environmental noise surveys, engineering investigations, machinery noise analysis and acoustic troubleshooting.
Built around the AWA6228+ Class 1 Sound Level Analyzer with frequency analysis, the kit combines integrating and statistical noise measurement, data logging and real-time 1/1 octave analysis with a Class 1 acoustic calibrator, tripod and remote microphone system.
It is designed for professional users who need to do more than simply measure how loud a noise is — the AWA6228+ can also help determine which frequency bands are contributing to the noise.

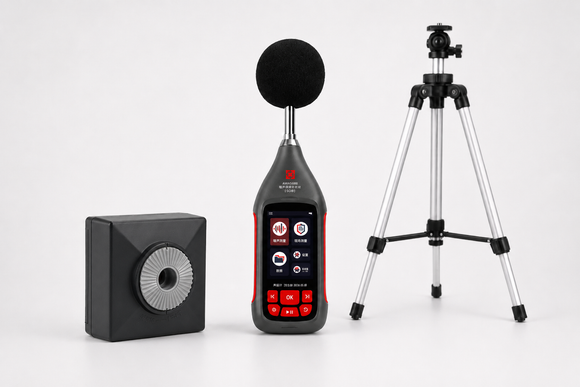

Complete Advanced Class 1 Kit
| Included Equipment | Purpose |
|---|---|
| AWA6228+ Class 1 Sound Level Analyzer | Advanced integrating, statistical and frequency analysis |
| Statistical Analysis Function | Ln percentile analysis for environmental and variable noise |
| Data Logging / Time History | Records how noise levels change throughout the measurement |
| 1/1 Octave Analysis | Identifies the frequency bands contributing to the measured noise |
| AWA6021A Class 1 Sound Calibrator | Professional field calibration at 94 / 114 dB |
| AWA8814 Professional Tripod | Stable positioning for professional field surveys |
| AWA8820 Microphone Holder | Supports the remote measurement microphone on the tripod |
| AWA8732 5 m Microphone Extension Cable | Positions the microphone away from the meter and operator |
| Windscreen | Reduces wind influence during outdoor measurements |
| Carrying Case | Equipment protection and transport |
| USB / Data Connection | Measurement transfer to PC |
| PC Transfer Software | Measurement download and data management |
Why Choose the Advanced Kit?
This kit is intended for applications where overall sound level alone doesn't tell the full story.
A conventional sound level meter can establish that a noise problem exists.
The AWA6228+ adds frequency analysis, allowing the user to investigate where that noise sits within the frequency spectrum.
This is particularly valuable when:
- Identifying machinery noise sources
- Investigating tonal noise
- Selecting noise-control measures
- Investigating low-frequency noise
- Comparing equipment
- Assessing environmental noise
- Troubleshooting acoustic problems
The tripod, microphone holder and extension cable also allow the measurement microphone to be positioned independently of the operator and instrument.

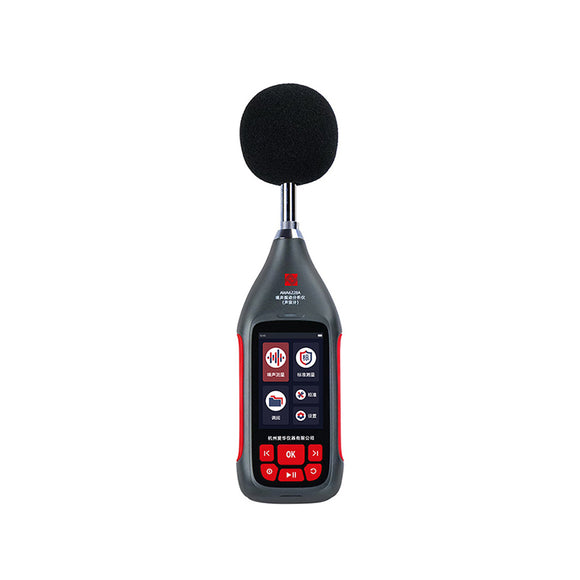

AWA6228+ Class 1 Sound Level Analyzer
The AWA6228+ is a configurable Class 1 professional acoustic measurement platform.
The configuration supplied in this kit includes:
- Integrating sound level measurement
- Statistical noise analysis
- Data logging / time history
- 1/1 octave real-time frequency analysis
Main Measurements
- Lp
- Leq
- Lmax
- Lmin
- SEL
- Statistical Ln values
- Peak sound levels
- Time-history data
- Real-time octave-band levels
1/1 Octave Frequency Analysis
The included octave analysis divides the measured sound into individual frequency bands.
This helps determine whether a noise problem is dominated by:
- Low-frequency rumble
- Machinery frequencies
- Mid-frequency process noise
- High-frequency components
- Particular octave bands
This information is particularly useful when designing or selecting:
- Acoustic enclosures
- Barriers
- Silencers
- Absorption materials
- Hearing protection
- Engineering noise controls
Key Specifications
| Specification | Details |
|---|---|
| Accuracy | IEC 61672 Class 1 |
| Octave Filter Accuracy | IEC 61260 Class 1 |
| Measurement Range | 20–142 dB |
| Peak Measurement | Up to 145 dB |
| Frequency Range | 10 Hz–20 kHz |
| Frequency Weighting | A, C, Z |
| Time Weighting | Fast, Slow, Impulse, Peak |
| Measurement Functions | Integrating + Statistical + Logging + 1/1 Octave |
| 1/1 Octave Range | 16 Hz–16 kHz |
| Display | 240 × 320 colour display |
| Communication | USB / RS-232 |
| Power | Battery or external supply |

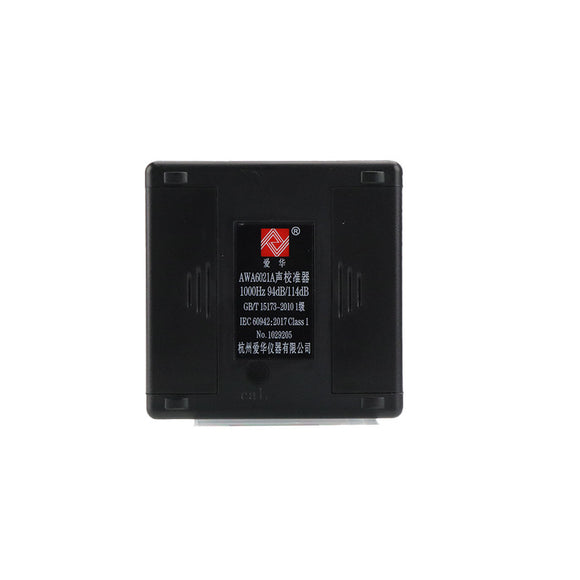

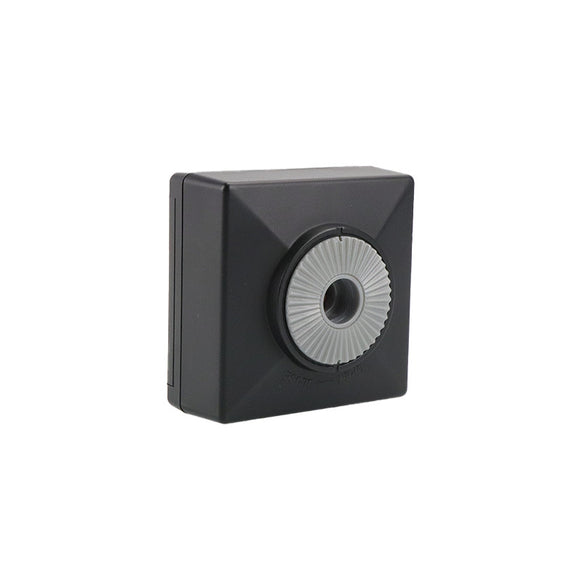

AWA6021A Class 1 Sound Calibrator
The included AWA6021A provides Class 1 field calibration and verification of the complete measurement chain.
Selectable calibration levels:
- 94 dB @ 1 kHz
- 114 dB @ 1 kHz
A field calibration check can be performed before and after a survey to verify measurement stability.
Remote Microphone Measurement
One of the major differences between this kit and the simpler professional kits is the included remote microphone setup.
The system includes:
- AWA8814 Tripod
- AWA8820 Microphone Holder
- AWA8732 5 m Extension Cable
This allows the microphone to be mounted on the tripod while the sound level analyzer remains with the operator.
Advantages
- Keeps the operator away from the microphone
- Reduces acoustic reflections from the operator
- Allows accurate microphone positioning
- Makes the display easier to operate during measurement
- Ideal for longer environmental surveys
- Improves consistency between measurements
Typical Applications
- Professional environmental noise surveys
- Industrial boundary noise
- Machinery noise investigations
- Engineering noise control
- Noise-source identification
- Frequency analysis
- Tonal noise investigation
- Construction noise
- Traffic and community noise
- Factory noise
- Acoustic consulting
- Product noise measurement
- Environmental compliance surveys
- Long-duration monitoring
- Research and development
Advanced Functions Available
The AWA6228+ can be expanded beyond the functions included in this kit.
Optional analysis functions include:
| Optional Function | Capability |
|---|---|
| 1/3 Octave Analysis | More detailed frequency-band analysis |
| FFT Analysis | High-resolution spectrum investigation |
| Reverberation Measurement | Room and building acoustic analysis |
| Noise Dosimeter Function | Occupational TWA / Dose measurements |
| Sound Recording | Records audio alongside measurement data |
| GPS | Adds measurement location information |
These can be specified separately where the application requires them.
Who Is This Kit For?
The AWA6228+ Advanced Kit is particularly suited to:
- Acoustic consultants
- Environmental consultants
- Noise-control engineers
- Industrial hygienists
- Mechanical engineers
- Environmental officers
- Research laboratories
- Universities
- Product development teams
- Professional testing organisations
Help Me Choose
Professional Noise Measurement Kits
| Kit | Accuracy | Main Measurement Capability | Best For / Why Choose It |
|---|---|---|---|
| AWA5636 Professional Kit | Class 2 | Integrating / Leq + calibrator + tripod | Workplace, machinery and general noise surveys. Most affordable complete professional kit. |
| AWA5662 Professional Kit | Class 1 | Integrating + Statistical Ln + calibrator + tripod | Environmental, consulting and professional surveys. Best-value complete Class 1 kit. |
| AWA6228+ Advanced Kit | Class 1 | Statistical + Logging + 1/1 Octave Analysis + calibrator + remote microphone system | Engineering and advanced environmental noise analysis. Complete professional analysis system. |
Which Kit Should I Choose?
Choose the AWA5636 Professional Kit when you need an affordable complete Class 2 measurement system.
Choose the AWA5662 Professional Kit when you require Class 1 accuracy and professional statistical environmental noise measurement.
Choose the AWA6228+ Advanced Kit when you also need to investigate which frequencies are contributing to the noise or require a remote microphone measurement setup.
