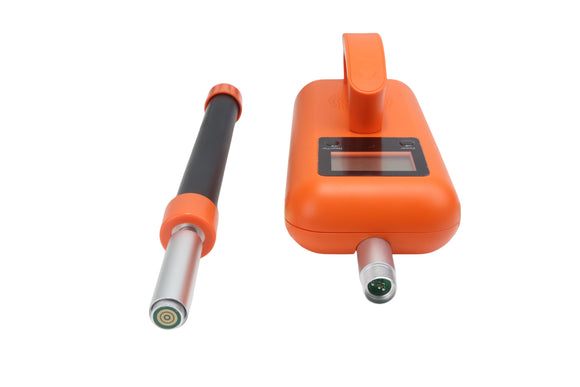

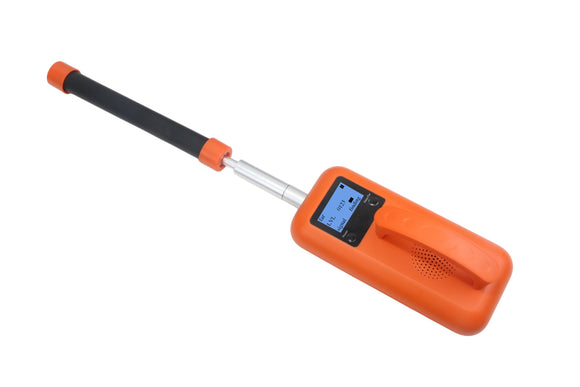

Portable 512 Hz signal receiver for locating compatible underground transmitters and sondes. The DB51 features Far and Near detection modes, a dual-angle sensor for peak and null signal detection, and a digital signal-strength display.
Key Features
- 512 Hz operating frequency
- Far / Near detection modes
- Up to 7 m / 23 ft maximum detection distance
- Digital signal-strength display: 0–1000
- Dual-angle sensor for peak and null signal detection
- Portable design supplied in a small aluminium carrying case
Technical Specifications
- Frequency: 512 Hz
- Detection Mode: Far / Near Mode
- Max. Detection Distance: 7 m / 23 ft
- Signal Strength Display: 0–1000, depending on signal strength
- Sensor: Dual-angle sensor for peak and null signal detection
- Battery: 6 × AA batteries (not included)
- Battery Life: 3–4 hours
- Dimensions: 540 × 110 × 115 mm
- Net Weight: 1.6 kg
- Operating Temperature: -20 °C to +50 °C
- Carrying Case: Small aluminium case
- Packaging: Aluminium case + individual carton
Applications
Suitable for locating compatible 512 Hz sondes and transmitters used in pipe, drain, sewer, duct and underground utility inspection work.
Specifications based on supplier technical information. Product appearance and specifications may change without notice.
