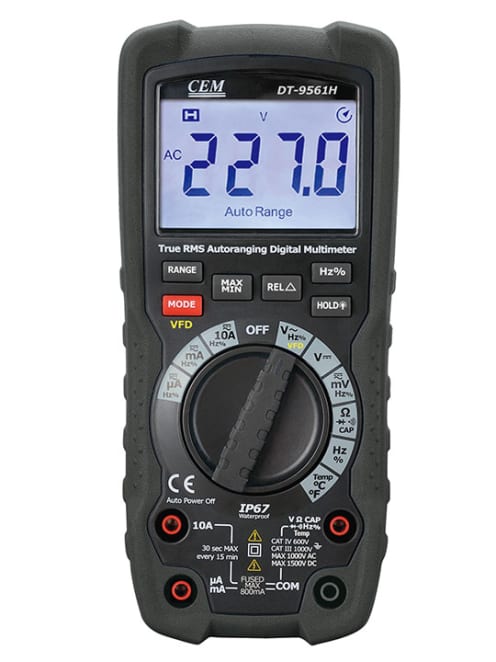

The CEM DT-9561H is a rugged True-RMS multimeter designed specifically for photovoltaic installation and maintenance, with high-voltage DC measurement for modern solar arrays.
Key Features
- PV DC voltage measurement up to 1500 V
- AC voltage measurement up to 1000 V
- AC/DC current measurement
- True-RMS accuracy
- Resistance, capacitance, frequency, temperature and duty-cycle functions
- Low-pass filter for inverter / VFD measurements
- Max/Min and Peak Capture functions
- IP67 dust and water protection
- 3 m drop protection
- CAT IV 600 V / CAT III 1000 V
Model: CEM DT-9561H
Specifications
| Specification | Details |
|---|---|
| PV DC voltage | Up to 1500 V DC |
| AC voltage | Up to 1000 V AC |
| Current | AC/DC |
| Functions | Resistance, capacitance, frequency, temperature, duty cycle, continuity |
| Measurement modes | True RMS, LPF/VFD, Max/Min, Peak |
| Ingress protection | IP67 |
| Drop rating | 3 m |
| Safety rating | CAT IV 600 V / CAT III 1000 V |
