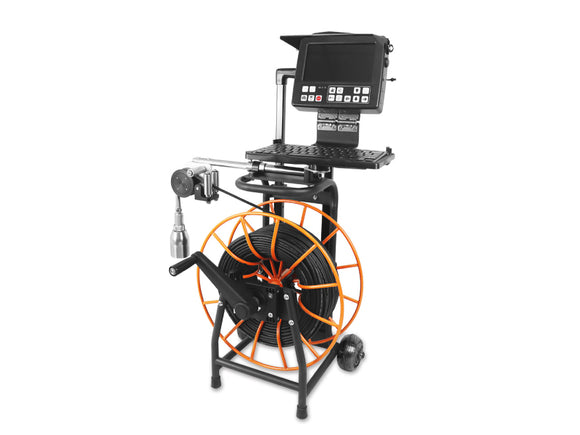

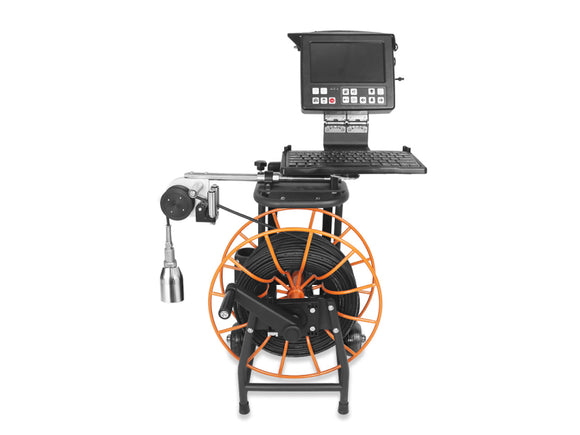

Borehole Inspection Camera Down View 100m – TC-V8-100-1
Borehole Inspection Camera Down View 100m – TC-V8-100-2
Borehole Inspection Camera Down View 100m – TC-V8-100-3
Borehole Inspection Camera Down View 100m – TC-V8-100-4

Borehole Inspection Camera Down View 100m – TC-V8-100

R 55,400.00

Tax includedShipping calculated at checkout

Tomlin Instruments SKU: TC-V8-100

Shipping
Ships in 5-10 business days

Warranty
1 year standard warranty

Description Help Me Choose Downloads Shipping

Product Description

The Tomlin TC-V8-100 is a professional down-view borehole inspection camera engineered for inspecting water wells, boreholes, vertical shafts and underground infrastructure. Designed with a rugged 55mm AHD waterproof camera head, the system delivers clear high-definition live video for evaluating borehole condition, casing integrity, water levels and obstructions.

Featuring an 8-inch HD IPS DVR control unit, 100m flexible inspection cable with digital depth counter, HD video recording, image capture and audio recording, the TC-V8-100 provides contractors and water authorities with a reliable inspection solution for routine maintenance and detailed borehole assessments.

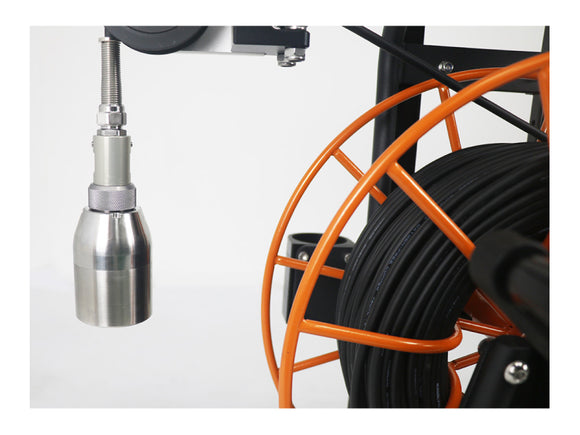

Built with a stainless steel camera housing, sapphire glass lens and adjustable high-intensity LED illumination, the TC-V8-100 is designed to perform reliably in demanding underground environments.

Features

  • 55mm HD AHD down-view camera head
  • Designed for boreholes, wells and vertical shafts
  • 100m flexible oxygen-free copper inspection cable
  • 8" HD IPS LCD monitor
  • HD video recording (AVI format)
  • Still image capture
  • Audio recording
  • Digital depth counter
  • USB wireless keyboard for inspection notes
  • 32GB USB storage included
  • Adjustable high-intensity LED lighting
  • Stainless steel camera housing
  • Sapphire glass lens window
  • IP68 waterproof camera head
  • 6800mAh rechargeable Li-ion battery
  • Detachable aviation connector

Specifications

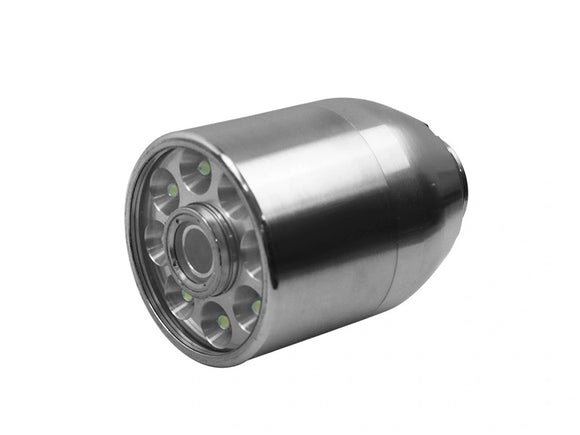

Camera Head

Specification Details
Camera Head Diameter 55mm
Camera Length 75mm
Camera Type Down View AHD Camera
Camera Sensor 1/3" CMOS, 1.3MP
Camera Resolution HD 720P
Viewing Angle 120°
Waterproof Rating IP68
Camera Housing Stainless Steel
Lens Window Sapphire Glass
LED Lighting 8 × Adjustable High-Intensity LEDs
Camera Connection Detachable Aviation Connector

Display & Recording

Specification Details
Display 8" HD IPS LCD
Screen Resolution 1920 × 1080
Video Recording AVI
Photo Capture Yes
Audio Recording Yes
Storage 32GB USB Flash Drive
Wireless Keyboard USB
Digital Depth Counter Yes
Waterproof Control Panel Yes
Battery Indicator Yes

Cable & Reel

Specification Details
Cable Material Oxygen-Free Copper Flexible Cable
Cable Diameter 6.8mm
Standard Cable Length 100m
Optional Cable Lengths 50m–200m
Reel Type Manual Cable Reel
Reel Dimensions 400 × 350 × 600mm
Digital Depth Counter Yes

Power

Specification Details
Battery 6800mAh Rechargeable Li-ion
Operating Voltage 12V DC
Operating Time Approx. 5–6 Hours

General

Specification Details
Tomlin Model TC-V8-100
Camera Type 55mm HD Down View Borehole Camera
Inspection Depth 100m
Suitable Applications Boreholes, Water Wells & Vertical Shafts
Waterproof Rating IP68 Camera Head



Camera Head Type Tomlin Model Cable Length Reel Type
Down View AHD TC-V8-100 100m Manual
Pan & Tilt TC-V8-3288PTN-2 100–200m Manual
Dual View Rotating TC-V8-BCS 100–200m Manual
Pan & Tilt TC-V13-50PTS 100–200m Manual
Dual View Rotating TC-V13-BCSA 200–500m Electric
Dual View Rotating TC-SWP-200 100–1000m Manual / Electric / Automatic
Dual View Rotating TC-V13-BCS 100–300m Manual
Pan & Tilt TC-V13-50PTE 100–200m Electric
Dual View Rotating TC-V13-45E 100–200m Electric



Feature Down View Rotating Pan & Tilt Dual View
Down View Inspection ✓ ✓ ✓ ✓
Side Wall Inspection ✗ ✓ ✓ ✓
Continuous 360° Rotation ✗ ✓ ✓ ✓
180° Tilt ✗ ✗ ✓ ✗
Simultaneous Down + Side View ✗ ✗ ✗ ✓
Manual Reel Available ✓ ✓ ✓ ✓
Electric Winch Available ✗ ✗ ✓ ✓
