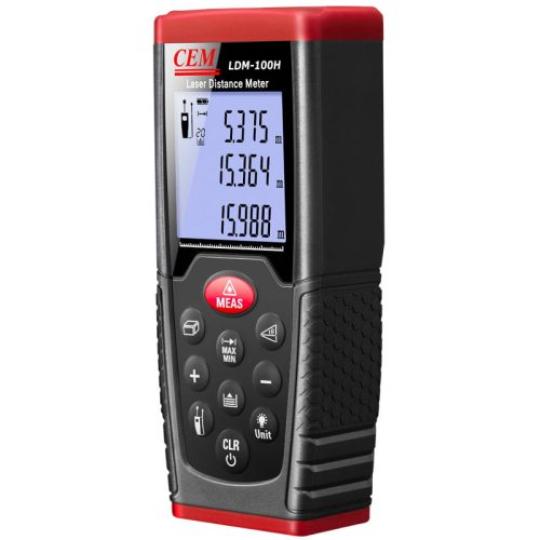

The CEM iLDM-100H is a professional 100 m Bluetooth laser distance meter for construction, installation, estimating and dimensional work.
Key Features
- Measurement range: 0.05 to 100 m
- Typical accuracy: ±1.5 mm
- Smallest displayed unit: 1 mm
- Area and volume calculations
- Indirect Pythagorean measurements
- Indirect measurement using the built-in tilt sensor
- Angle measurement using tilt sensor
- Continuous measurement and timer
- Min / Max distance tracking
- Stake-out function
- Bluetooth connection to compatible smartphone app / cloud service
- Bluetooth range approximately 10 m
- 99 stored measurements
- IP54 dust and splash protection
- Class II 635 nm laser, <1 mW
Model: CEM iLDM-100H
Specifications
| Specification | Details |
|---|---|
| Measurement range | 0.05 to 100 m |
| Typical accuracy | ±1.5 mm |
| Display resolution | 1 mm |
| Tilt sensor | ±65° |
| Functions | Area, volume, Pythagoras, angle, continuous measurement, Min/Max, timer, stake-out |
| Bluetooth range | Approx. 10 m |
| Memory | 99 records |
| Ingress protection | IP54 |
| Laser | Class II, 635 nm, <1 mW |
