Surface Roughness Tester 132B

R 27,910.00

Tax includedShipping calculated at checkout

Tomlin Tools SKU: AR-132B-1

Sensor Type: Standard Sensor
Accessories: With Test Stand

Add R 2,000.00 more for FREE shipping!

Shipping
Ships in 5-10 business days

Warranty
1 year standard warranty

Description Specifications Downloads Shipping

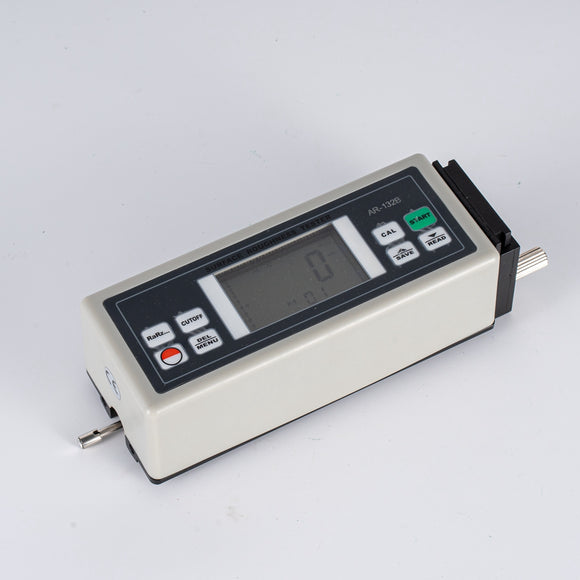

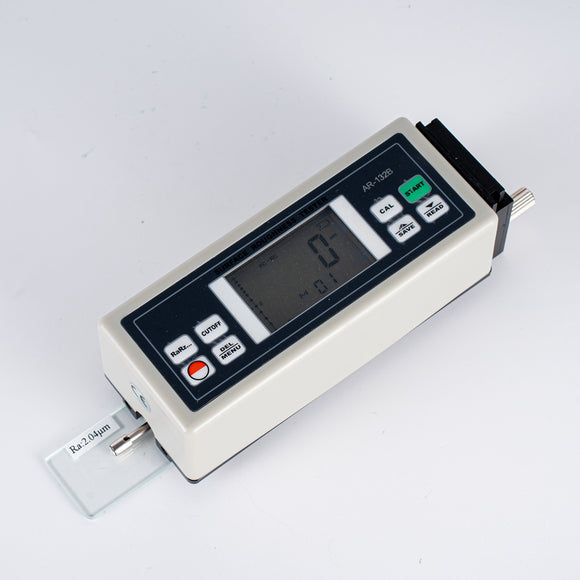

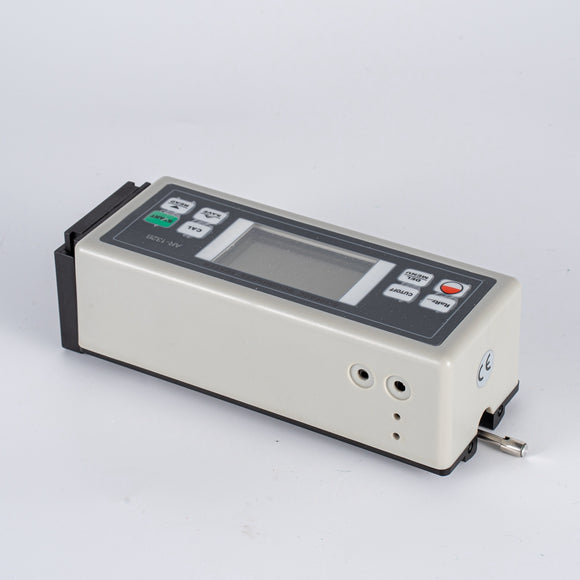

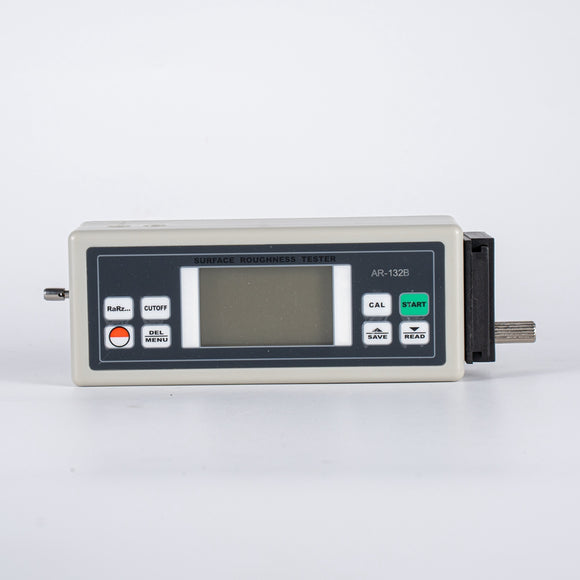

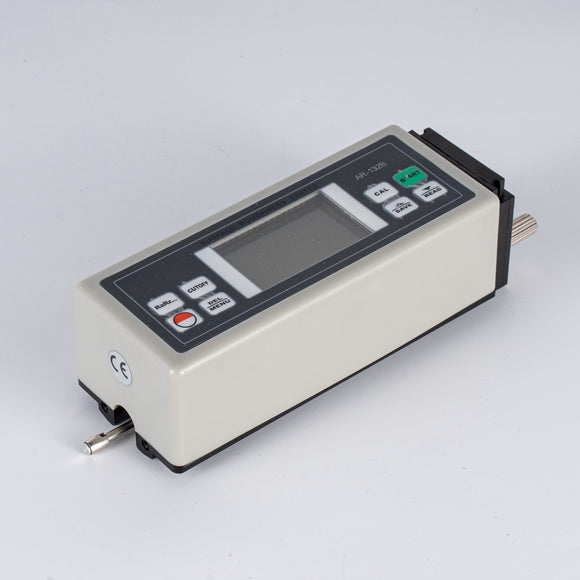

TOMLIN Surface Roughness Tester (Model AR-132B)

Description:
The TOMLIN Surface Roughness Tester AR-132B is a highly versatile device designed to measure four key roughness parameters: Ra, Rz, Rq, and Rt. Equipped with advanced DSP technology, it provides fast and precise results for various industrial applications, including coatings and metalworking.

Measurement Process:

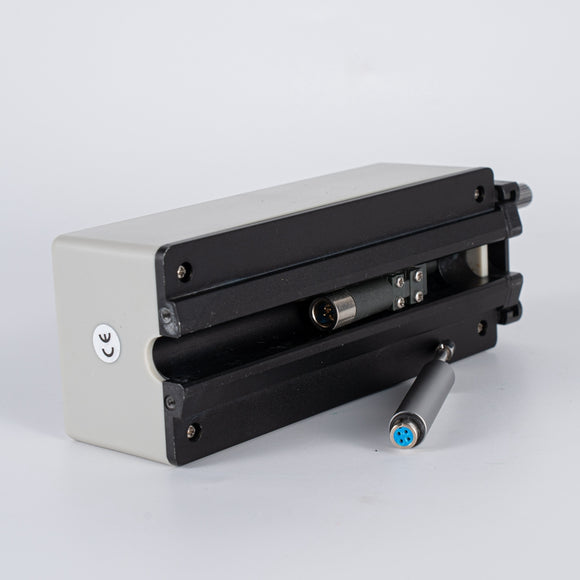

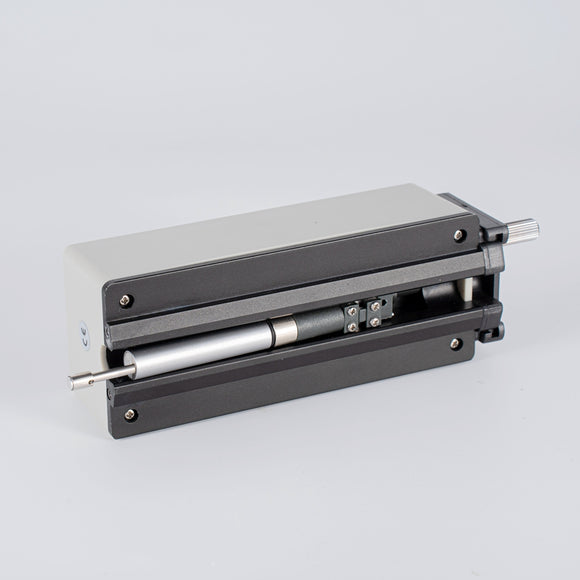

The built-in sensor detects surface roughness by measuring inductive signal changes. Results are displayed on the LCD screen for easy interpretation, with data storage capabilities for further analysis.

Features:

  • Four Parameters Measured: Ra, Rz, Rq, Rt.
  • Data Storage: Stores up to 7 groups of measurements.
  • Buzzer Sound Reminder: Alerts users when measurements are complete.
  • Backlight Display: Enhances visibility in dim environments.
  • Computer Connectivity: Allows for efficient data transfer.

  • Parameters Measured: Ra, Rz, Rq, Rt

    Measurement Range:

    Ra: 0.00516 µm / 0.020629.9 µinch

    Rz: 0.020160 µm / 0.7806299 µinch

    Rt: 0.020160 µm / 0.7806299 µinch

    Accuracy: ±10%

    Resolution: 0.01 µm if reading <10 µm; 0.1 µm if reading ≥10 µm

    Operation Temperature: 050°C (32122°F)

    Power Supply: Lithium-Ion Battery (Rechargeable)

    Size: 140 x 57 x 48 mm (5.5 x 2.2 x 1.9 in)

    Weight (Including Battery): 420 g (14.82 oz)

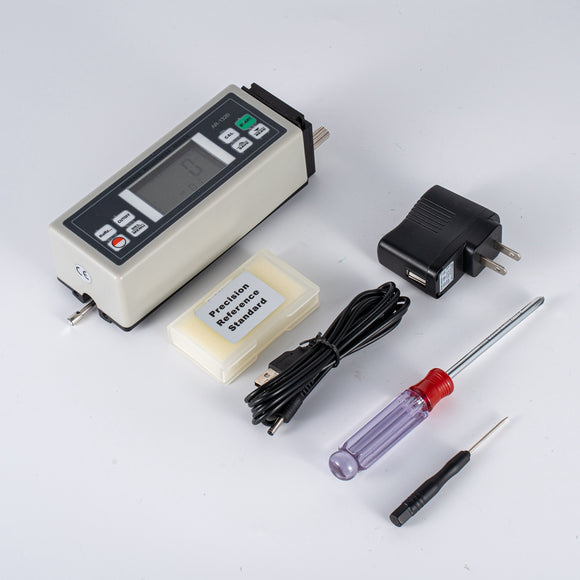

Standard Accessories:

  • Main Unit

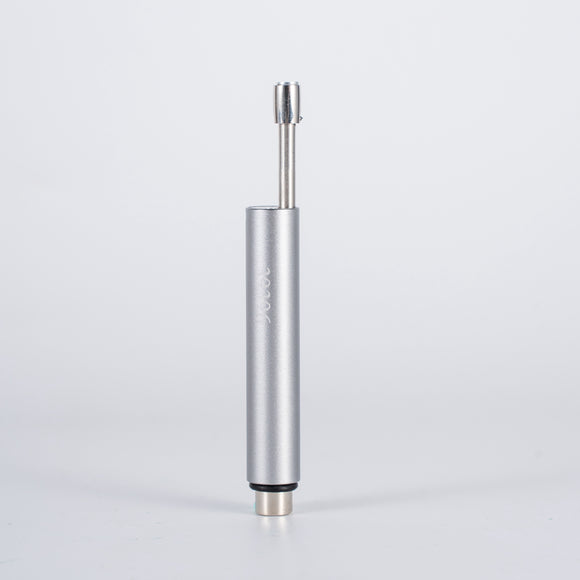

  • Standard Sensor
  • Adjustable Leg
  • Screwdriver
  • Power Adapter
  • Operation Manual

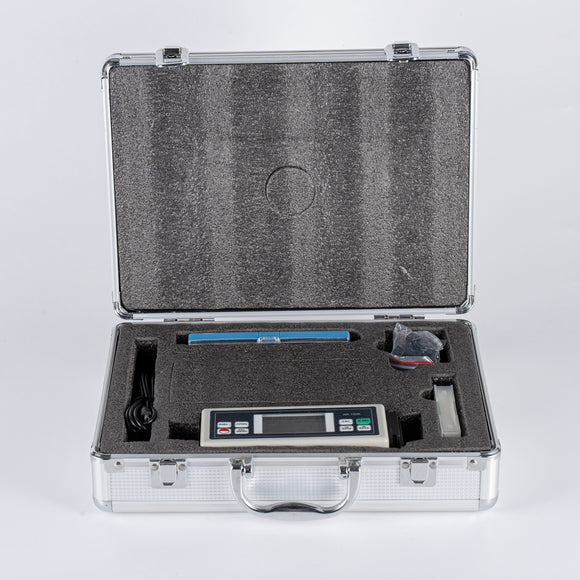

  • Carrying Case

Optional Accessories:

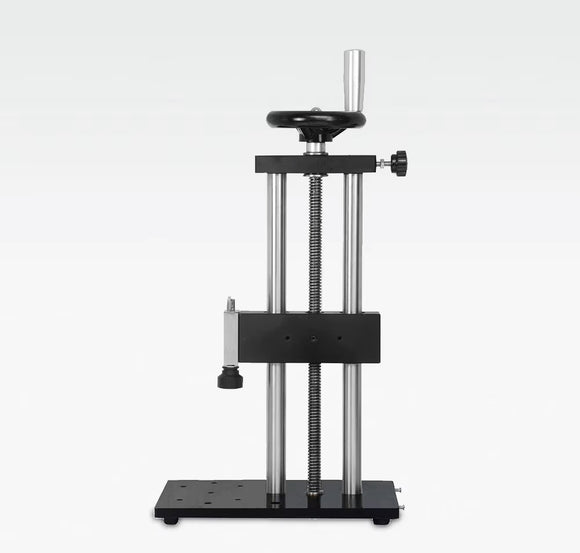

  • Measurement Stand
  • USB Cable & Software
  • Bluetooth Adapter & Software

Alternative Names

  • Multi-Parameter Roughness Tester
  • Industrial Surface Roughness Gauge
  • Digital Profilometer for Ra, Rz, Rq, Rt
  • Portable Roughness Measurement Tool

PDF Specification Sheet - Download Here

Shipping: 5-10 business days
