Advanced Brinell Optical Measurement Systems

Description

The Sinowon Advanced Brinell Optical Measurement System Series is designed for high-accuracy Brinell indentation analysis, laboratory verification, and advanced quality control applications requiring superior repeatability and digital reporting.

Traditional Brinell hardness verification methods rely heavily on manual microscope interpretation and operator judgement. The QB-Series replaces this process with advanced optical imaging, automatic edge recognition, intelligent software analysis, and automated hardness calculation technology.

Using BrinScan software and high-definition optical systems, the QB-Series automatically measures indentation diameters, calculates hardness values, records images, generates reports, and significantly reduces operator influence and testing time.

These systems are ideal for calibration laboratories, hardness block manufacturers, metallurgy facilities, research institutions, universities, advanced manufacturing quality control departments, and industrial laboratories requiring precision Brinell indentation analysis.

Models Available

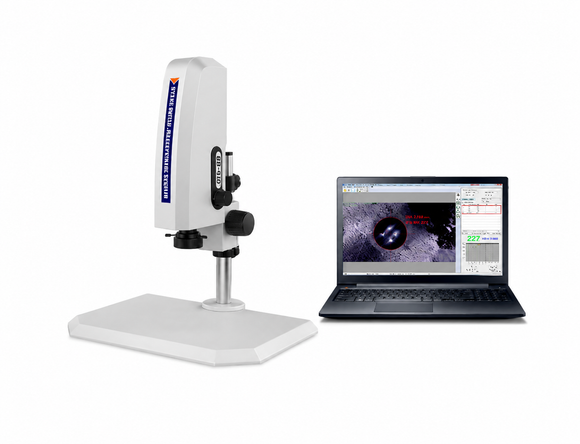

QB-510 – High Accuracy Brinell Indentation Optical Measurement System

Advanced non-contact Brinell indentation optical measurement system designed for high repeatability laboratory and industrial quality control applications.

QB-500 – High Accuracy Brinell Optical Measurement System with X-Y Stage

Laboratory-grade high-precision Brinell optical measurement system featuring an X-Y moving stage for advanced hardness block verification and precision optical analysis.

Features

  • High-accuracy optical Brinell indentation measurement
  • Automatic indentation edge recognition
  • Automatic hardness calculation
  • High-definition optical imaging systems
  • Advanced BrinScan measurement software
  • Automatic image saving and report generation
  • Automatic hardness conversion functions
  • One-key measurement operation
  • Improved repeatability and reduced operator influence
  • Faster testing compared to traditional microscopes
  • Compatible with most Brinell hardness testers
  • Adjustable LED illumination systems
  • Automatic report export to Word and Excel
  • Suitable for laboratory and production environments
  • Precision digital indentation analysis

Product Comparison Table

Model QB-510 QB-500
Product Type High Accuracy Optical Measurement High Accuracy Optical Measurement with X-Y Stage
Application Workshop / Laboratory Laboratory
Measurement Type Non-contact Measurement Non-contact Measurement
Compatible Indenters 10mm, 5mm, 2.5mm, 1mm 10mm, 5mm, 2.5mm, 1mm
Best For Advanced QC and laboratories Calibration and research laboratories
Key Advantage High repeatability and digital analysis X-Y stage precision optical measurement

QB-510 Specifications

Model QB-510
Product Type High Accuracy Brinell Indentation Optical Measurement System
Code 838-350
Measuring Range 8~650HBW
Compatible Indenters 10mm, 5mm, 2.5mm, 1mm
Lighting Source Adjustable LED Surface Illumination
Z Axis Travel 100mm
Indentation Resolution 0.1μm
Hardness Resolution 0.1HBW
Accuracy ±1% (HBW10/3000)
Indentation Length 1.2~6mm
Operating System Windows
Power Supply AC90~240V / 50~60Hz

QB-500 Specifications

Model QB-500
Product Type High Accuracy Brinell Optical Measurement System with X-Y Stage
Code 838-390
Hardness Resolution 0.01HB
Repeatability ±1HB
Maximum Specimen Weight 15kg
Stage Travel 100 × 50mm
Z Axis Travel 50mm
Illumination Adjustable LED Cold Light & Coaxial Light
Software BrinScan V2.0
Operating System Windows 8 / 10 (32/64bit)
Working Environment 20°C ±1°C
Humidity 30~80%
Voltage 220V / 50Hz
Weight 20kg
Dimensions 440 × 410 × 700mm

Industries Used In

  • Calibration laboratories
  • Hardness block manufacturing
  • Metallurgy
  • Steel manufacturing
  • Foundries
  • Heat treatment facilities
  • Research laboratories
  • Universities and technical institutes
  • Industrial quality control
  • Material testing laboratories

Alternative Names

  • Brinell Optical Measurement System
  • Brinell Indentation Measurement System
  • Automatic Brinell Measurement System
  • Optical Brinell Analyzer
  • Brinell Image Analysis System
  • Brinell Hardness Verification System
  • Laboratory Brinell Optical Measurement System
  • Precision Brinell Measurement System

Help Me Choose – Brinell Hardness Tester Range

Series Positioning Best For Automation Level Measurement Method Key Advantage
Brinell-3000 Value Industrial Brinell Workshops, foundries, general QC Semi-Automatic Brinell Affordable closed-loop industrial testing
Brinell-3000D Value Digital Brinell Industrial QC and workshops Semi-Automatic Digital Brinell Digital eyepiece workflow and improved repeatability
SHB-3000E Entry Electronic Brinell Workshops, education, general QC Electronic Manual Brinell Affordable electronic Brinell testing
Vexus SHB-3000N Advanced Touch Screen Brinell Industrial QC and manufacturing Semi-Automatic Brinell Touchscreen workflow and digital measurement
SHB-3000H Large Capacity Brinell Heavy engineering and large specimens Semi-Automatic Brinell Increased specimen height capacity
Vision SHB-3000X Vision Brinell Precision inspection and repeatability Vision-Assisted Vision Brinell Improved optical measurement repeatability
AuToBrin-3000Y Auto Focus Vision Brinell Advanced laboratories and QC departments Auto Focus Vision Vision Brinell Faster workflow with reduced operator influence
AutoBrin-3000A Automatic Digital Brinell Industrial laboratories and advanced production QC Automatic Turret Digital Brinell Automatic indenter and objective switching
SHB-62.5A / B Low Load Brinell Thin materials and low force testing Electronic Manual Low Load Brinell Specialized low force Brinell testing

Brinell Optical Measurement System Comparison Table

Series Positioning Best For Measurement Type Key Advantage
QB-100/250 Portable Optical Measurement Portable inspection and workshop use Contact Optical Measurement Portable Brinell indentation verification
QB-100A Entry Non-contact Optical Measurement Workshop digital verification Non-contact Optical Measurement Affordable digital indentation analysis
QB-510 Advanced Optical Measurement Advanced QC labs and industrial verification High Accuracy Optical Measurement Improved repeatability and digital analysis
QB-500 Laboratory Optical Measurement Research and calibration laboratories X-Y Stage Optical Measurement High precision optical analysis
