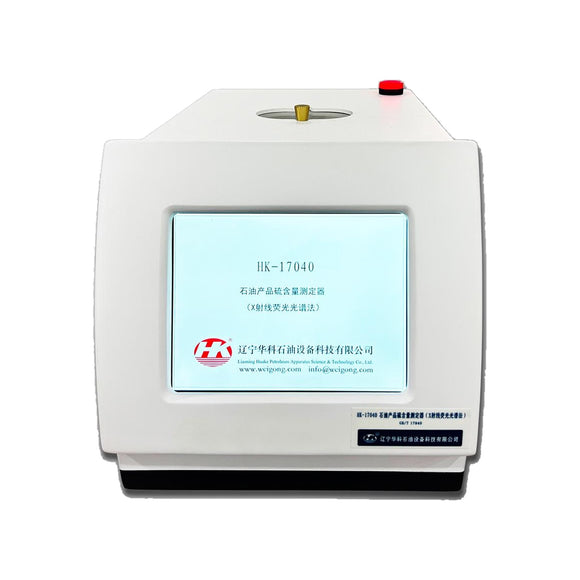

The HK-17040 is an X-ray fluorescence sulfur content tester for petroleum products and related samples. It is designed around ASTM D4294 and related methods for measuring total sulfur in crude oil, petroleum products, heavy oil, diesel, kerosene, gasoline, naphtha and selected powder samples.
Key features
- 8-inch IPS capacitive touch screen
- Fast XRF sulfur analysis with low standard-sample consumption
- Automatic temperature and atmospheric-pressure correction
- Disposable Mylar-film sample cups to reduce cross-contamination
- Large internal data storage
- Oil-leakage and X-ray shielding safety systems
Technical data
- Sulfur measurement range: 0.0017%–5%
- Detection limit: 10 ppm
- Oil sample volume: 5–6 mL
- Powder sample mass: 3 g
- Selectable measurement time: 60, 120 or 180 seconds
- Stores up to 10 calibration curves
- Power supply: AC 220 V ±20 V, 50/60 Hz
- Rated power: 50 W
- Dimensions: 460 × 260 × 260 mm
- Weight: 13 kg
