ISO Flow Cup Viscometer
The PCE-128 series measures the flow time of Newtonian and near-Newtonian liquids for laboratory and industrial quality control. Select the outlet diameter to suit the required viscosity range and test method.
Features
- Five outlet sizes: 3, 4, 5, 6 and 8 mm
- Polished cup surface and overflow channel

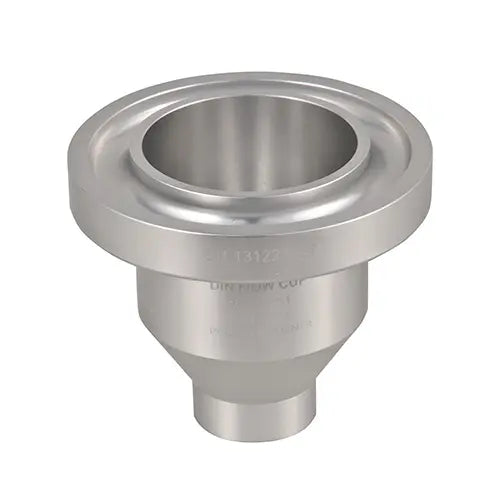

- Anodised aluminium cup with stainless-steel nozzle
- Factory calibration certificate supplied
Applications
Flow-time and viscosity checks on suitable paints, coatings, inks and process liquids during laboratory testing and production quality control.
Model selection
| Model | Outlet diameter | Viscosity range (cSt) | Flow time |
|---|---|---|---|
| PCE-128/3 | 3 mm | 7–42 | 25–150 s |
| PCE-128/4 | 4 mm | 34–135 | 30–100 s |
| PCE-128/5 | 5 mm | 91–326 | 30–100 s |
| PCE-128/6 | 6 mm | 188–684 | 30–100 s |
| PCE-128/8 | 8 mm | 600–2,000 | 30–100 s |
Specifications
| Material | Anodised aluminium cup; stainless-steel nozzle |
|---|---|
| Dimensions | 50 mm internal diameter; 85 mm external diameter; 85 mm height |
| Methods listed by manufacturer | ISO 2431, DIN 53224, EN 535, ASTM D5125 |
Included

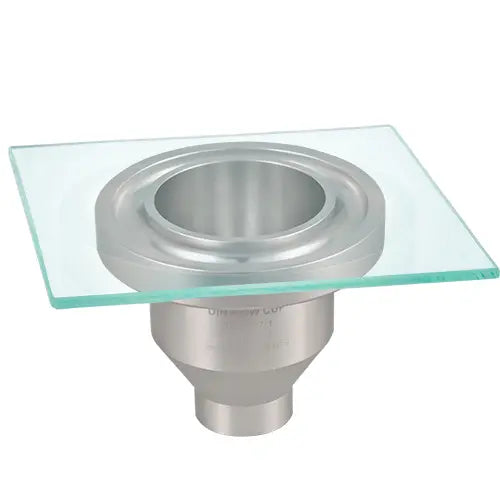

One flow cup in the selected size, glass plate, factory calibration certificate and instruction manual.

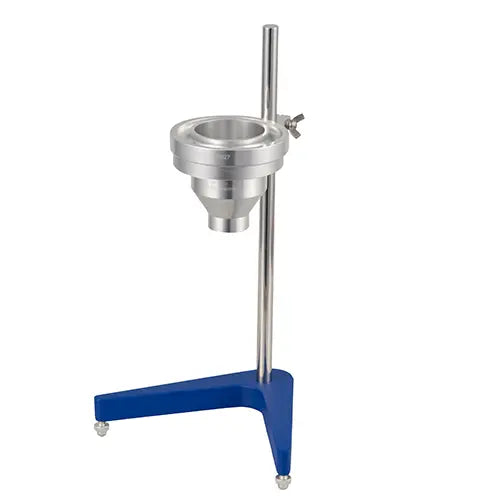

The stand is an optional accessory and is not included. A separate timer is required to measure flow time.
