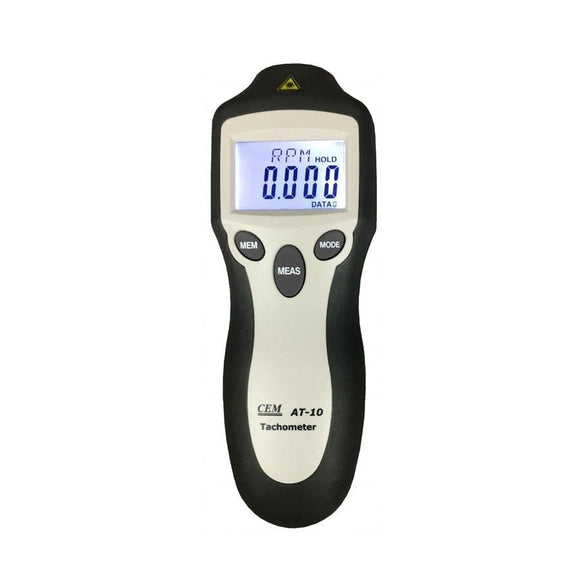

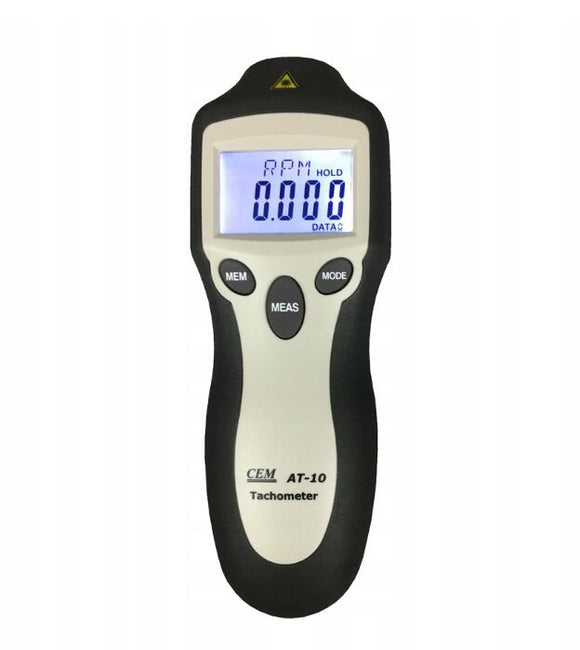

The CEM AT-10 is a professional contact and non-contact laser tachometer with an extended non-contact range of up to 200,000 RPM and a detection distance of up to 2.5 metres.
Key Features
- Contact RPM range: 2 to 20,000 RPM
- Non-contact RPM range: 2 to 200,000 RPM
- Total-count range: 1 to 200,000
- Accuracy: ±(0.05% + 1 digit)
- Non-contact detecting distance: 50 mm to 2500 mm
- Built-in laser pointer
- 5-digit LCD display
- Up to 40 stored readings
- 0.5-second sampling time above 120 RPM
- Contact and non-contact measurement from one instrument
Applications
- Motors, fans and pumps
- Production machinery
- Rollers and shafts
- High-speed rotating equipment
- Surface-speed measurement with contact accessories
Model: CEM AT-10
Specifications
| Specification | Details |
|---|---|
| Contact RPM | 2 to 20,000 RPM |
| Non-contact RPM | 2 to 200,000 RPM |
| Total count | 1 to 200,000 |
| Accuracy | ±(0.05% + 1 digit) |
| Non-contact detection distance | 50 to 2500 mm |
| Memory | Up to 40 readings |
| Display | 5-digit LCD |
| Laser | Built-in |
| Battery | 9 V |
