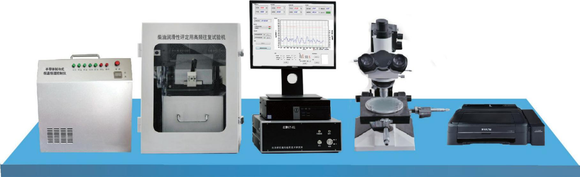

A high-frequency reciprocating rig for diesel lubricity evaluation using a loaded steel ball and test disc. The system combines controlled reciprocating motion, environmental control and optical wear-scar measurement with computer-based reporting.
Features
- Diesel lubricity evaluation to ASTM D6079 and ISO 12156-1.
- Controlled reciprocating frequency, stroke and applied load.
- Separate semiconductor temperature and humidity controller.
- Reflective optical encoder with real-time stroke display.
- Optical wear-scar measurement with X and Y readings.
- Image capture and computer-generated test reports.
- Stored test history and reference-oil calibration records.
Applications
Diesel fuel lubricity testing; additive performance studies; refinery quality control; tribology research.
Specifications
| Model | TP-01B |
|---|---|
| Reference methods | ASTM D6079; ISO 12156-1; SH/T 0765 |
| Test temperature setpoint | 60°C |
| Nominal frequency | 50 ±1 Hz |
| Adjustable frequency | 10-200 Hz |
| Nominal stroke | 1 ±0.02 mm |
| Adjustable stroke | 20 µm-2.0 mm |
| Nominal applied load | 200 ±1 g |
| Adjustable load | 0.1-1 kg |
| Sample volume | 2.0 ±0.2 mL |
| Oil-container surface area | 600 ±100 mm² |
| Test duration | 75 ±0.1 min; automatic stop |
| Chamber temperature control | 0-50°C; stated precision 1°C |
| Chamber humidity range | 5-95% RH |
| Environmental control | Separate semiconductor temperature / humidity controller |
| Stroke measurement | Reflective optical encoder |
| Wear-scar optics | 100× magnification; stated measurement accuracy 1 µm |
| Imaging | 2,048 × 1,536-pixel camera; X/Y-axis measurement |
| Test-ball diameter | 6 mm |
| Test-ball hardness / roughness | HRC 58-66; Ra below 0.05 µm |
| Test-disc dimensions | 9.8 mm diameter × 3 mm thick |
| Test-disc hardness / roughness | HV30 190-210; Ra below 0.02 µm |
| Software | Real-time test monitoring, history, images and report generation |
| Power supply | 220 V AC, 50 Hz; voltage fluctuation within ±5% |
| Main instrument dimensions | 1,500 × 550 × 500 mm |
| Bench requirement | Stable level bench at least 3,000 × 800 × 30 mm |
