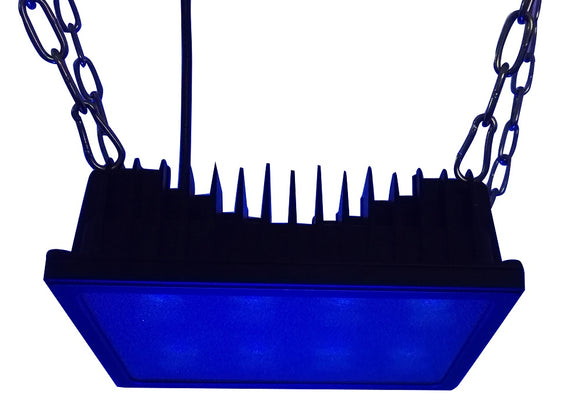

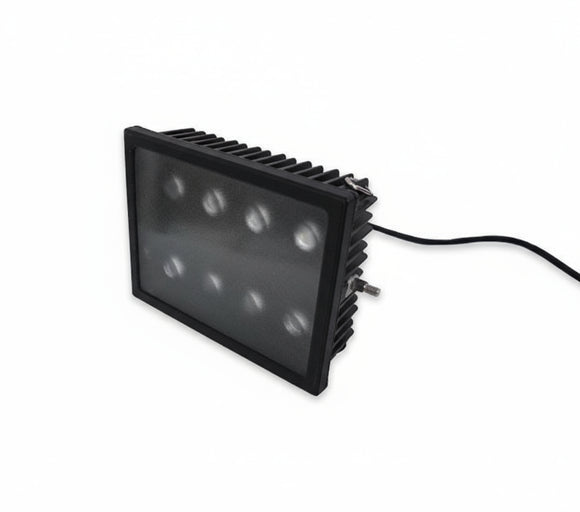

UV LED Overhead Lamp | Fixed-Mount Ultraviolet Light for NDT – SL8108

Product Description:

The SL8108 Overhead UV LED Lamp is a modular, high-intensity non-destructive testing (NDT) inspection light built for large-area coverage and lab or shop-floor environments. With 8 or 9 powerful 365nm UV LEDs, it delivers uniform beam distribution and selectable UV intensity of 4 000 uWcm2, 8 000 uWcm2, or 13 000 uWcm2 at 38 cm, depending on the model.

Designed with aerospace inspection in mind, the SL8108-AR variant complies with ASTM E3022 and RRES 90061 standards. A mechanical cooling system ensures long-term, 24-hour continuous operation without fans, making it ideal for clean environments.

Manual and remote control switching is supported, with the remote working up to 20 meters. You can expand your irradiated coverage by connecting up to 6 units together, providing uniform UV light across wide test surfaces.

Key Features:

• 8 or 9 pcs Nichia 365nm UV LEDs (5W each)

• Adjustable UV intensities up to 13 000 uWcm2

• Compliant aerospace version with white light filter

• Mechanical cooling system – no fans required

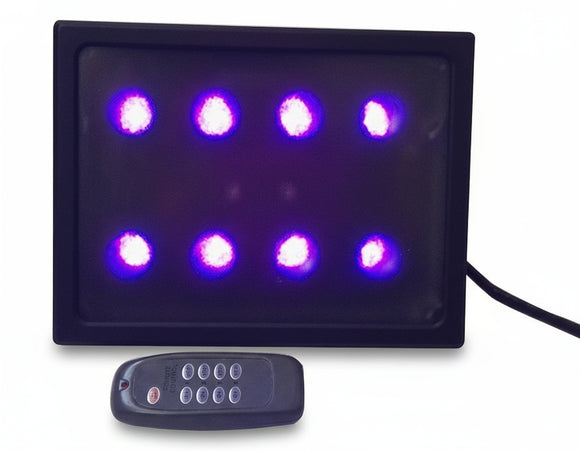

• Manual and wireless remote control (up to 20m range)

• Expandable design (connect up to 6 units)

• Safe UV-A output with low visible light emission

• Ideal for wide-area NDT and industrial inspection setups

• Continuous operation: 24 hours without interruption

• Designed for aerospace, heavy industry, and lab use

Technical Specifications:

• Model: SL8108 Overhead UV LED Lamp

• Variants:

  • SL8108-AR (Aerospace RRES 90061 compliant)

  • SL8108-Standard

  • SL8108-High

• UV LEDs:

  • SL8108-AR/Standard: 8 pcs

  • SL8108-High: 9 pcs

• LED Power: 5W Nichia UV LEDs

• Peak Wavelength: 365–370nm

• LED Lifespan: 30 000 hours

• UV Intensity at 38 cm:

  • SL8108-AR: 4 000 uWcm2

  • SL8108-Standard: 8 000 uWcm2

  • SL8108-High: 13 000 uWcm2

• Irradiated Area at 38 cm:

  • SL8108-AR: 260 x 240 mm

  • SL8108-Standard: 250 x 200 mm

  • SL8108-High: 200 x 130 mm

• Power Supply: 100–240V AC

• UV Intensity Stability: >90%

• Control: Manual and wireless remote (up to 20m)

• Modular Expansion: Up to 6 units

• Dimensions: 240 x 185 x 85 mm

• Weight: 2.3 kg without accessories

• Run Time: 24H continuous operation

Industries Used In:

• Aerospace and aviation inspection

• Magnetic Particle Inspection (MPI)

• Fluorescent Penetrant Inspection (FPI)

• General NDT and industrial testing

• Manufacturing QA labs

• Automotive component testing

• Railway maintenance depots

• Defense and military inspections

• Clean rooms and R&D centers

• Forensic science labs
