Product Description

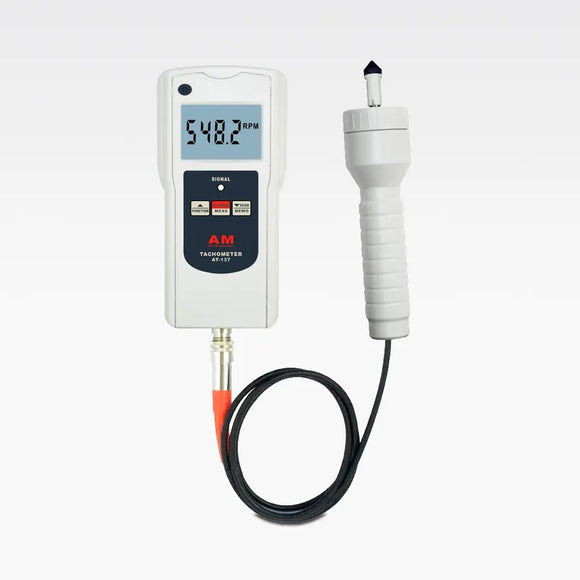

The Multifunction Tachometer is a versatile tool designed to test the rotative velocity, surface speed, and frequency of motors. It finds wide application in various industries, including motor, fan, paper-product, plastics, chemical fiber, washing-machine, automobile, airplane, and steamer departments.

Product Features:

• Digital display with precise readings, eliminating guessing errors
• Wide measuring range and high resolution for accurate measurements
• Automatic storage of last value, maximum value, and minimum value in memory
• Multifunctional instrument combining PHOTO TACH. (RPM) and CONTACT TACH. (RPM, m/min., ft/min.)
• Durable and long-lasting components, housed in a strong yet lightweight ABS-plastic casing, ensuring an elegant shape and ease of use

Product Parameters:

• Measuring Range:
• Laser: 2.5-99999 r/min
• Contact: 0.5-1999 r/min
• Surface: 0.05-1999.9 m/min; 0.2-6560 ft/min
• Laser tach detecting distance: 50-600 mm
• Accuracy: ±(0.05%n+1d)
• Resolution: 0.01/0.1/1
• Sampling Time: 1 s
• Memory: Max/min/last value
• Battery Indicator: Low battery indicator
• Power Supply: 4x1.5v Um-4 Battery
• Size: 140x70x30 mm
• Weight: 130 g (excluding batteries)

Product Accessories:

• Standard Accessories: Main Unit, Conical Adapter, Round Adapter, Line Speed Wheel, Carrying Case, Operation Manual
• Optional Accessories: USB data output, Bluetooth data output

Buying Guide:

When selecting the model number of the Multifunction Tachometer from Amittari, the default option is standard delivery, which includes the standard accessories. If you require additional optional accessories, please inform our customer service representative.

The following are the basic optional accessory choices:

• Standard Accessories + USB data output
• Standard Accessories + Bluetooth data output

Bluetooth Accessories:

The Multifunction Tachometer can be equipped with Bluetooth data output functionality (except for a few specific models). Bluetooth data output is available as an optional accessory, not included in the standard delivery.
