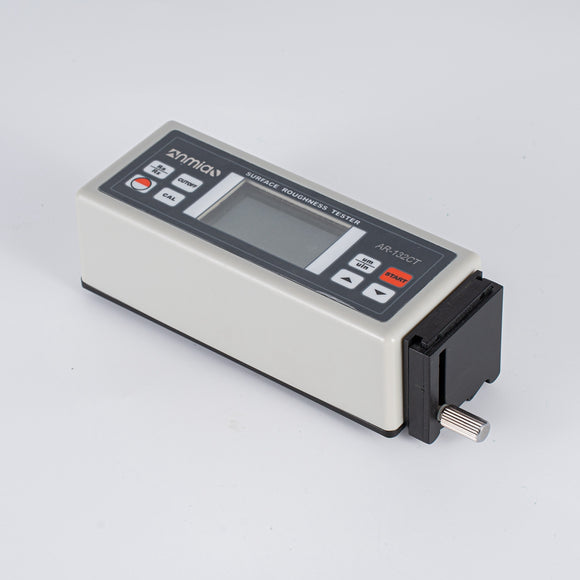

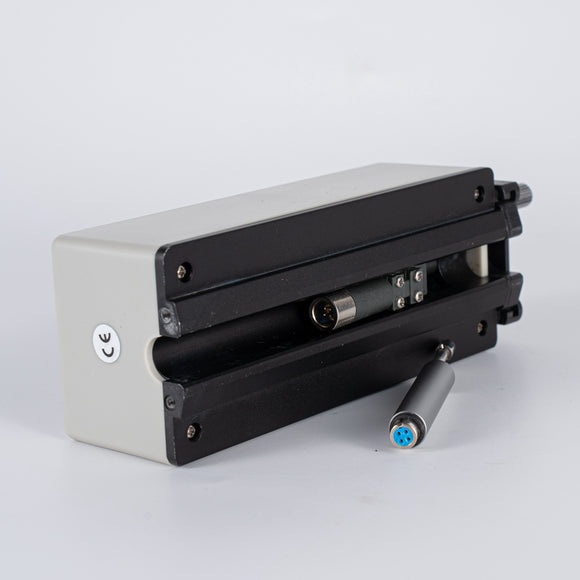

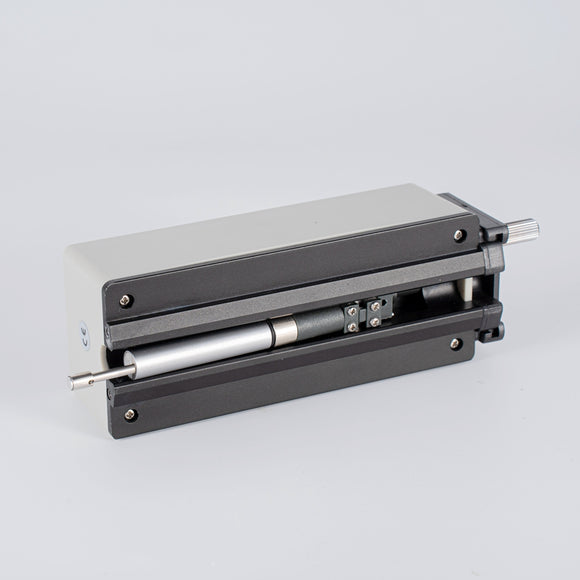

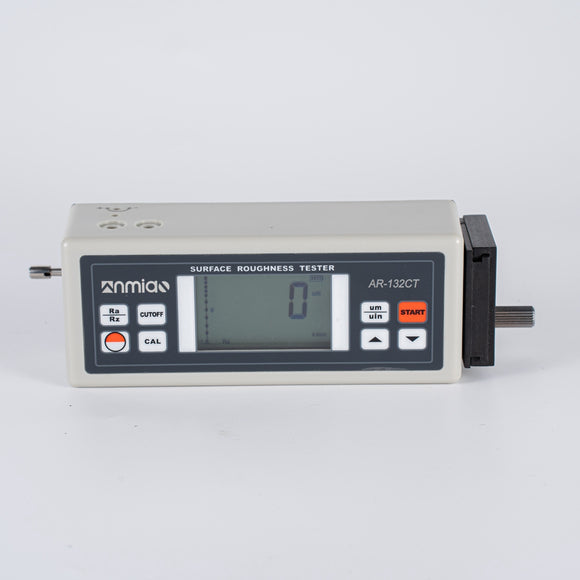

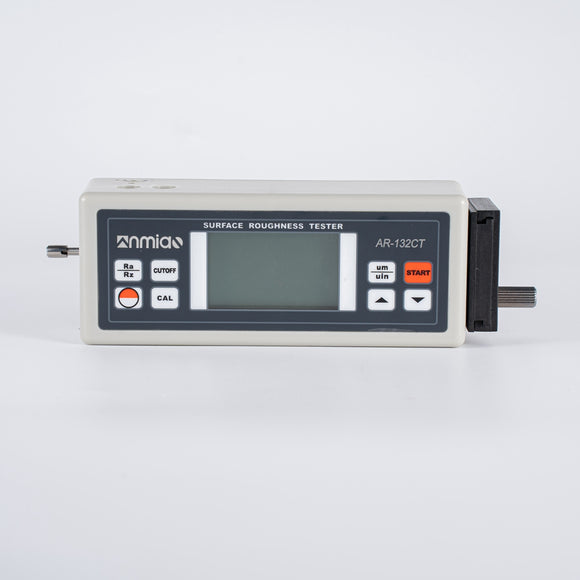

Product Description
The Concrete Surface Texture Tester adopt Computer technology, compatible with four standards of ISO, DIN, and JIS. Widely used in production site to measure surface roughness of various machinery-processed .
Product Feature
* High accuracy inductance sensor.
* Multiple parameter measurement: Ra, Rz.
* With low power consumption indication.
* Can be measured in several parts of the surface roughness: Planar, curved surface, small hole, slot of the irregular surface.
* Design of electromechanically integration, small volume, light weight, convenient with measuring value storage function and data storage query.
* Use DSP chip control and data processing, high speed, low power consumption LCD digital display with backlight function.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Product Parameters
Measuring Range
Ra: 0.05-10.00um/1.000-400.0uinch
Rz: 0.020-100.0um/0.780-4000uinch
Accuracy ±15%
Fluctuation of display value 10%
Resolution
0.001?m, 0.01?m, 0.1?m
Probe Radius
10?m
Material
Diamond
Measurement Force
16mN(1.6gf)
Angle
90°
Vertical Radius
48mm
Maximum Driving Stroke
12.5mm/0.5inch
Cutoff Length
0.25mm, 0.8mm, 2.5mm
Driving Speed
Measuring
Sampling Length: 0.25mm Vt: 0.135mm/s
Sampling Length: 0.8mm Vt: 0.5mm/s
Sampling Length: 2.5mm Vt: 1mm/s
Returning
Vt=1mm/s
Evaluation length 1~2L cut off optional (0.25mm sampling length =1L)
Power Supply
4x1.5vAA Um-3 Battery
Size 140x75x33 mm
Weight 280 g (Not including batteries)

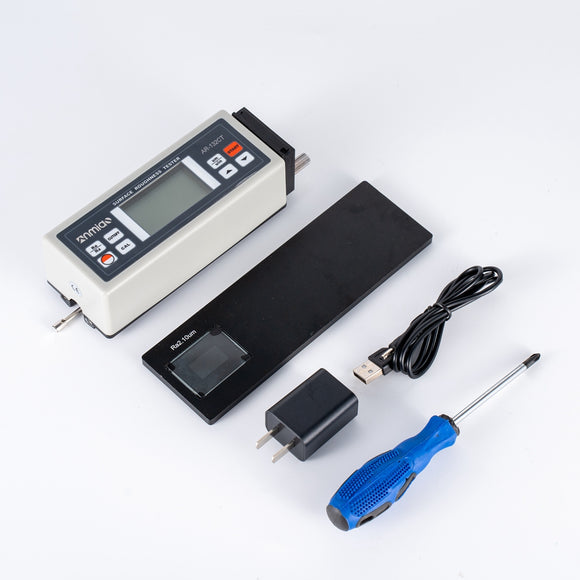

Product Accessories
Standard Accessories
Main Unit
Small Screwdriver
Standard Boilerplate

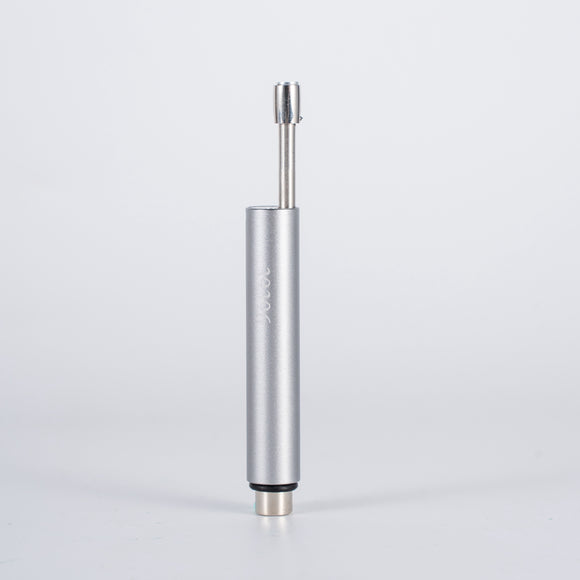

Standard Sensors,

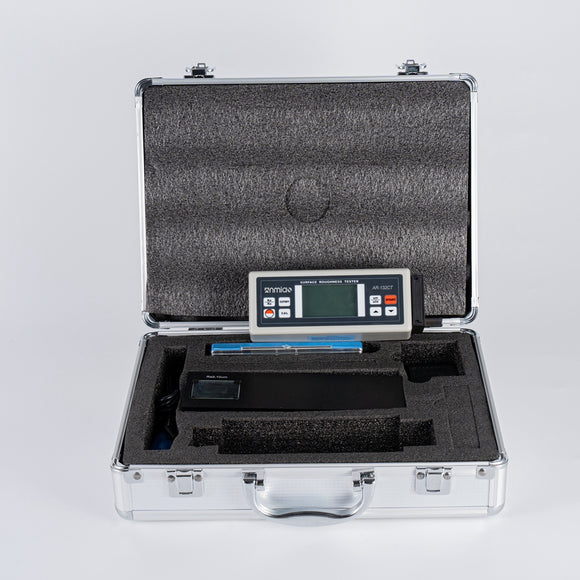

Carrying Case
Operation Manual
Optional Accessories
USB data output
RS-232 data output
Bluetooth™ data output
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
