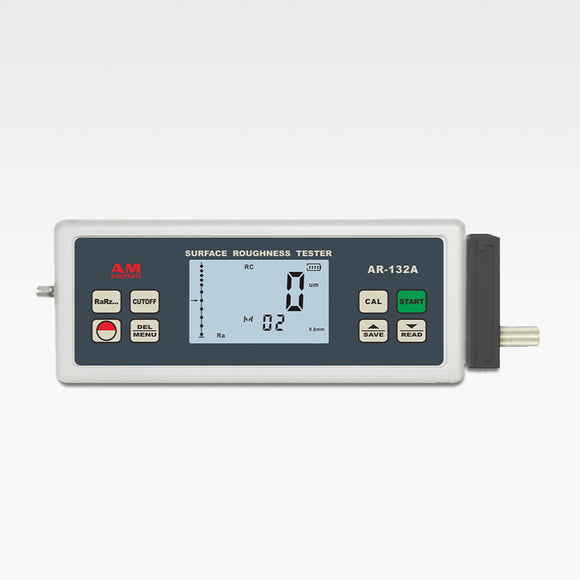

Surface Roughness Tester 132A

Product Description:

The Surface Roughness Tester is a widely used instrument in production sites for measuring the surface roughness of various machinery-processed parts. It calculates corresponding parameters based on selected measuring conditions and displays all measurement parameters clearly.

Product Features:

Compatible with four standards: ISO, DIN, ANSI, and JIS. The measurement process involves placing the sensor on the surface and sliding it uniformly using the internal mechanism of the tester. The sensor utilizes a sharp built-in probe to measure the surface roughness. This roughness causes displacement of the probe, resulting in a change in the inductive amount of induction coils, generating an analog signal proportional to the surface roughness at the output end of the phase-sensitive rectifier. The exclusive DSP processes and calculates the measurement results, which are then displayed on the LCD.
Multiple parameter measurement: Ra, Rz.
Highly sophisticated inductance sensor.
Built-in lithium-ion rechargeable battery and high-capacity control circuit.
Compact size, lightweight, and easy to use.
Manual or automatic shut down.
Metric/Imperial conversion.
USB data output for connection to a PC.
Bluetooth data output option.
Product Parameters:

Measuring Range:

Ra: 0.0510.00 um / 1.000400.0 uinch
Rz: 0.020100.0 um / 0.7804000 uinch
Accuracy: Not more than ±10%
Fluctuation of display value: Not more than 6%
Resolution: 0.001?m, 0.01?m, 0.1?m
Probe:

Radius: 10?m
Material: Diamond
Measurement Force: 16mN (1.6gf)
Angle: 90°
Vertical Radius: 48mm
Maximum Driving Stroke: 17.5mm / 0.7inch
Cutoff Length: 0.25mm, 0.8mm, 2.5mm
Driving Speed:

Measuring:
Sampling Length: 0.25mm, Vt: 0.135mm/s
Sampling Length: 0.8mm, Vt: 0.5mm/s
Sampling Length: 2.5mm, Vt: 1mm/s
Returning: Vt=1mm/s
Evaluation length: 1~5L optional
Power Supply: Built-in rechargeable Li-ion battery
Size: 140x52x48 mm
Weight: 420 g (Not including batteries)
Product Accessories:

Standard Accessories:

Main Unit
Small Screwdriver
Standard Boilerplate
Standard Sensors
Carrying Case
Operation Manual
Optional Accessories:

USB data output
RS-232 data output
Bluetooth™ data output
Buying Guide:

When choosing the model number of the Amittari instrument, the default option is standard delivery. If you require other optional accessories, please inform our customer service representative. The following are three basic optional accessory choices:

Standard Accessories + USB data output
